8m Height Electric Man Lift
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Special Weight Level
- Moves：Self-propelled
- Driven Type：DC
- Running Mode：Moving
Base Info
- Model NO.：SPS-8
- Feature：Explosion-Proof
- Certification：CE
- Max Platform Height：9690mm
- Max Working Height：7990mm
- Platform Size：2260*820mm
- Load Capacity：320kg
- Extend Platform：900mm
- Max. Drive Speed(Stowed)：3.2km,H
- Color：Orange, Blue or According to Request
- Grade-Ability：25%
- Warranty：12 Months Apart From Man-Made Faults
- Maintenance-Free Battery：4*6,216V,Ah
- Transport Package：Nude Packing
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description
Charger V/A24/20-30 24/20-30 24/20-30 24/20-30 24/20-30 48/30-40

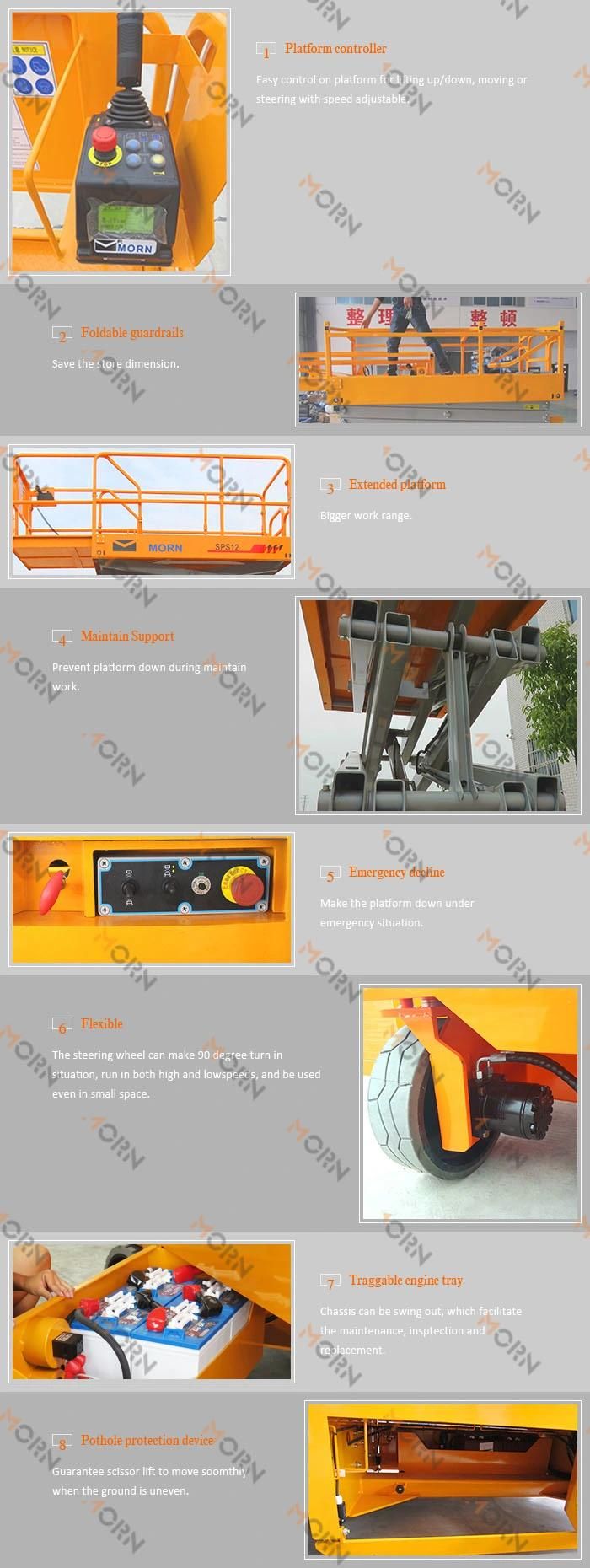

3. Main features of Morn scissor lifts
1) Quite and convenient device.
The scissor lift takes storage battery as the power source, and makes low noise and
no emission when working, So it can be used in indoor occasions such as workshops, warehouses, hotels, etc.
2) Production sharing
The base structure of each model has standard size, same as the scissor structure and other parts, so these parts are made separately,
on one hand, it improves our production capacity a lot, but the most important is we can assure the high quality of each part.
3) Scissor structure
The scissor structure are made by advanced CNC machine, which make every lift parts extremely precise and can cut
max 20 mm thickness steel structure and error will be less than three-thousandths of a millimetre.
4) Flexible
The steering wheel can make a 90° turn in situ, can run in both high and low speeds, and can used in small space.
5) Solid rubber wheels
The small solid rubber wheels moves slightly, and it has no any damage to the floor.
6) Larger working space
The platform can extend on one side, which can enlarge the working space
7) Folding guardrails
The guardrails of platform are folding and can reduce the height of the whole machine,
which facilitates the transportation and pass of places such as openings.
8) Swing-out tray
The trays in both sides of the chassis can be swing out, which facilitate the maintenance, inspection and replacement
9) Battery brand-----Trojan. Also with easy charging system for your convenient.
10) Easy understanding control box-on the platform.
Each control button has the instruction mark, the user can understand how it works and easy to operate.
12) Maintenance schedules and other warnings are printed on the lift
13) Spare parts, some tools and operation manual, service manual will be sent with machine
14) Each lift will be fully tested before factory, we will assure every part works and make the video for the customer.
4. Applications:
It is widely used for aerial installation and maintenance of the working sites without power supply and
with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops,
warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
5. Warranty
1) User-friendly English manual for machine using and maintenance.
2) One year warranty for whole machine without man-made fault;
3) We will send you parts for free if there are any non-human factors problem during warranty time
4) 24-hours technical support by email, telephone or other communication online.
5) We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
6.Shipment picture
