• Model NO.：KDSJY0.5-11
• Lift Mechanism：Scissor Lift
• Carrying Capacity：Light Level
• Moves：Moving
• Driven Type：AC
• Running Mode：Scissor Lift
• Feature：Scissor Lift
• Certification：GS, CE, RoHS, ISO 9001
• Rated Capacity：500kgs
• Max. Lifting Height：11000mm
• Plate Size：2100*1140
• Working Voltage：380V,50Hz
• Motor Power：1.5kw
• Overal Length：2280mm
• Overal Width：1340mm
• Overal Height：2596mm
• Net Weight：1480kgs
• Transport Package：Nude
• Specification：CE
• Trademark：KUDAT
• Origin：China
• Production Capacity：500PCS,Month
• Package size per unit product：136.00cm * 68.00cm * 85.00cm
• Gross weight per unit product：2000.000kg

Basic Info.

Model NO. KDSJY0.5-11 Lift Mechanism Scissor Lift Carrying Capacity Light Level Moves Moving Driven Type AC Running Mode Scissor Lift Feature Scissor Lift Certification GS, CE, RoHS, ISO 9001 Rated Capacity 500kgs Max. Lifting Height 11000mm Plate Size 2100*1140 Working Voltage 380V/50Hz Motor Power 1.5kw Overal Length 2280mm Overal Width 1340mm Overal Height 2596mm Net Weight 1480kgs Transport Package Nude Specification CE Trademark KUDAT Origin China Production Capacity 500PCS/Month

Packaging & Delivery

Package size per unit product 136.00cm * 68.00cm * 85.00cm Gross weight per unit product 2000.000kg

Product Description

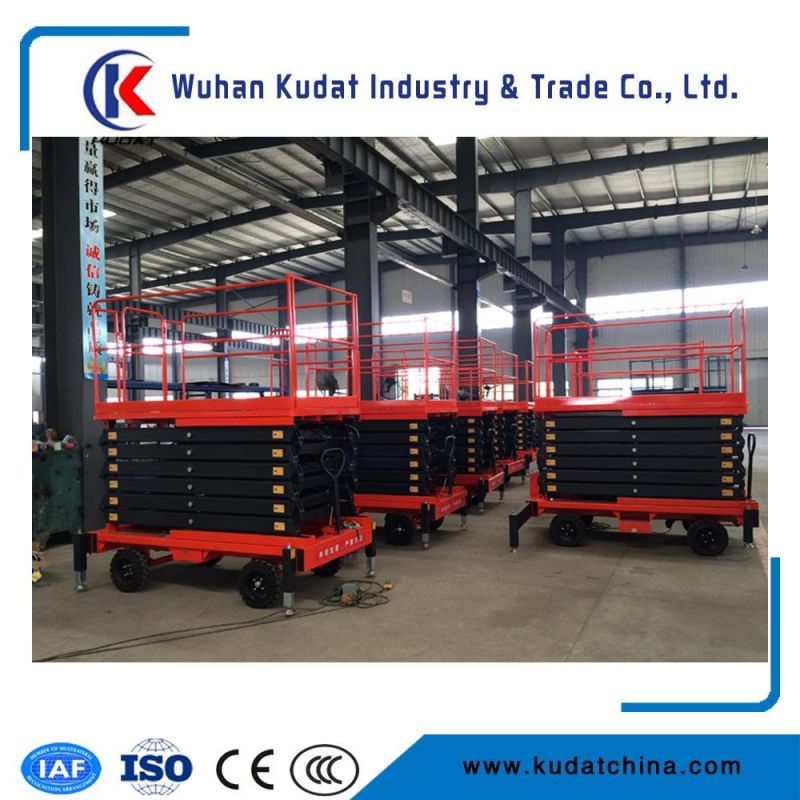

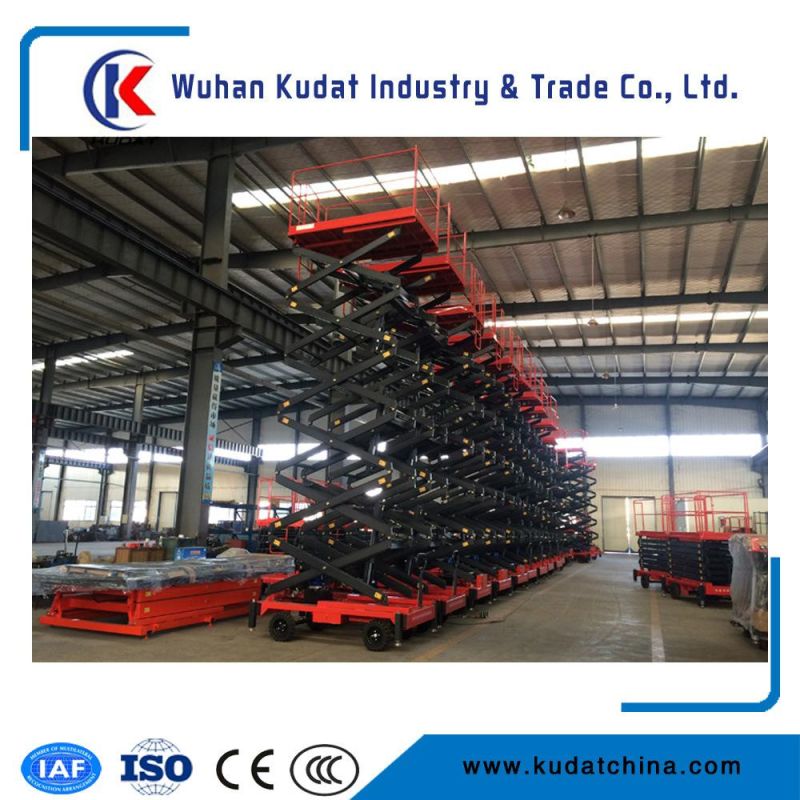

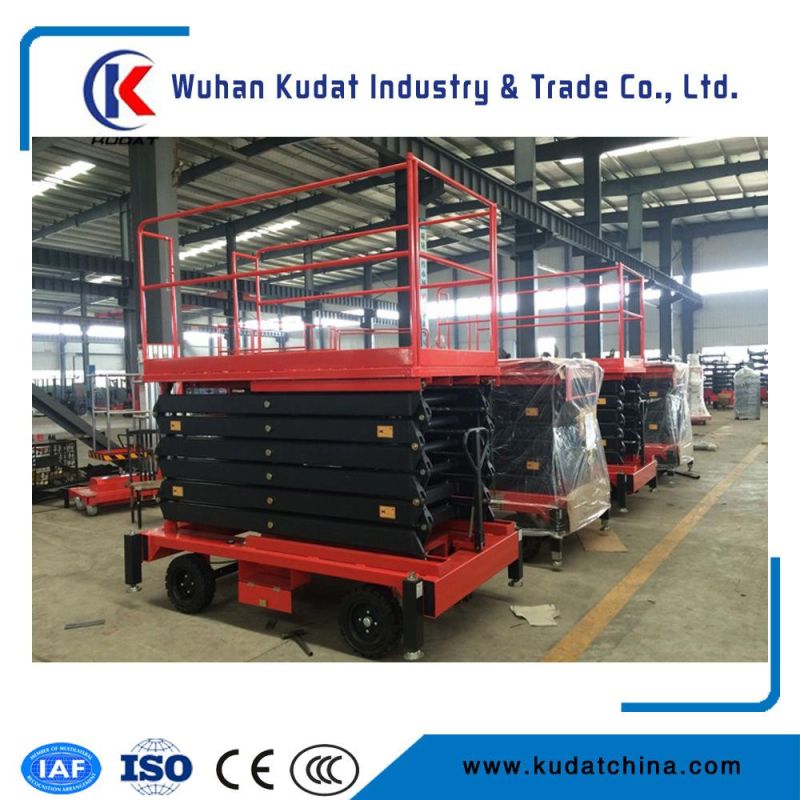

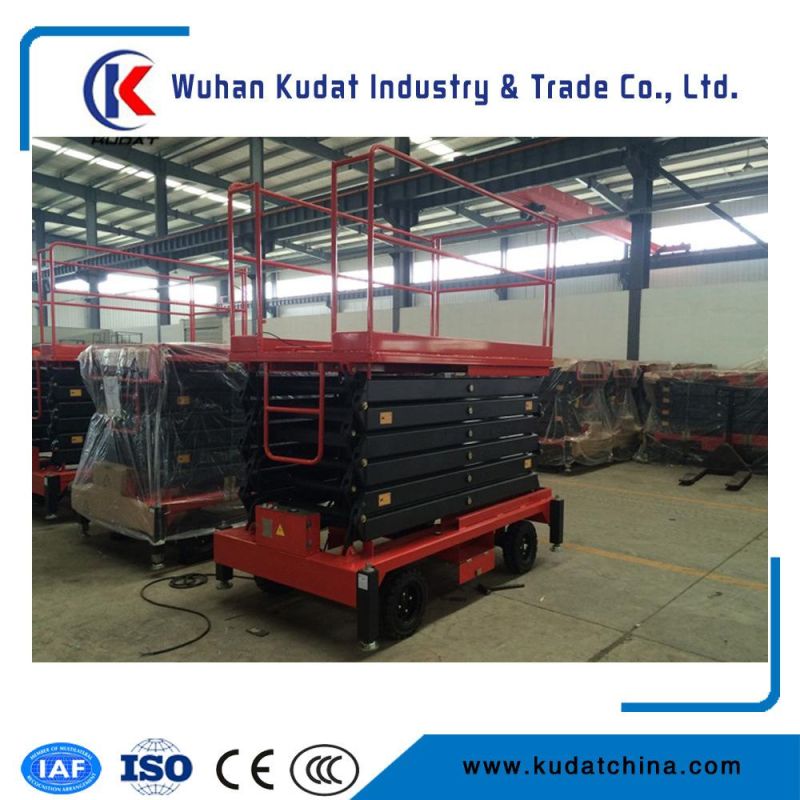

SJY Scissors Lift With CE Approved
The scissor type aerial lift table is a special equipment of wide use for aerial work. The scissor type mechanical structure makes lift more stable, lift table more broader, carrying capacity much higher and is suitable for several operators at the same time. Therefore, the aerial work is of high efficiency and security.

Lifting structure is made up of manganese steel square pipes which have high strength.
Equipped with safety protection equipments to prevent overload of lift tables.
Equipped with safety production valves to prevent rupture of hydraulic pipelines.
Equipped with urgent fall equipments for the condition of power cut.

The SJY0.3-11scissor lifts is idea for building maintenance, Indoor painting and decorating, cleaning, suspended ceiling installation, etc.
It offering a safe and effective working height of 13.8 metres.
Standard features include non-marking tyres, an optional roll-out deck extension For extra platform space where it is really needed. The standard work voltage of The scissor lift is 220V/60Hz or 380V/60Hz, 24V/DC battery power is available
For you.

Specification

Model SJY0.5-11
Unit Metric US
Work height 12.8m 42ft3.3in
Platform height 11m 36ft
Capacity 300kg 660lbs
Height-stowed 1.8m 6ft10.8in
Platform width 1.35m 4ft5in
Platform length 2.2m 7ft2.25in
Guardrail height 1m 3ft3.36in
Ground clearance 120mm 4.7in
Slide out deck extension Optional
Extension deck capacity 120kg 264lbs
Work voltage 220/380V
Package 2.2× 1.35× 1.8m 8× 5× 7ft
Weight 1380kg 3030lbs
Load quantity in 20'GP 4PC

Model	Unit	KDSJY0.5-11
Rated capacity	kg	500
Plate height(max)	mm	11000
Plate height (min)	mm	1560
Plate size(l*m)	mm	2100*1140
Working voltage	v	AC380,AC220,or AC110
Working voltage	v	DC24,or AC_DC24
Motor power	380v	1.5kw
Motor power	220v	2.2kw
Overal length	mm	2280
Overal width	mm	1340
Overal height	mm	2596
Met weight	kg	1480
