1m Vertical Lift for Disabled People
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：WL0.25-1
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Rated Loading Capacity：250kg
- Max. Lifting Height：1000mm
- Table Size：1450*1000mm
- Control System：Both on The Platform and Ground
- Remote Control：Optional
- Platform：Antiskid
- Emergency Stop：Manual Emergency Stop Valve
- Lock：Yes
- Installation：on The Ground, No Pit
- Warranty：12 Months Apart From Man Made Faults
- Transport Package：Plywood Case
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description
by pressing the emergency button.
4. Safety device:
1. Safety Interlock: Lock the platform when the vertical platform lift encounters an emergency.
2. Safety Sensor: The operation must be stopped immediately the safety edge meets obstacles during operation.
3. Emergency lowering: The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
4. Auto-flap: The small ramp will turn up while lifting.
5. Aluminum with tempered glass enclosure can be added per actual need.
5. Guarantee & After-sales Services
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.
More product show:

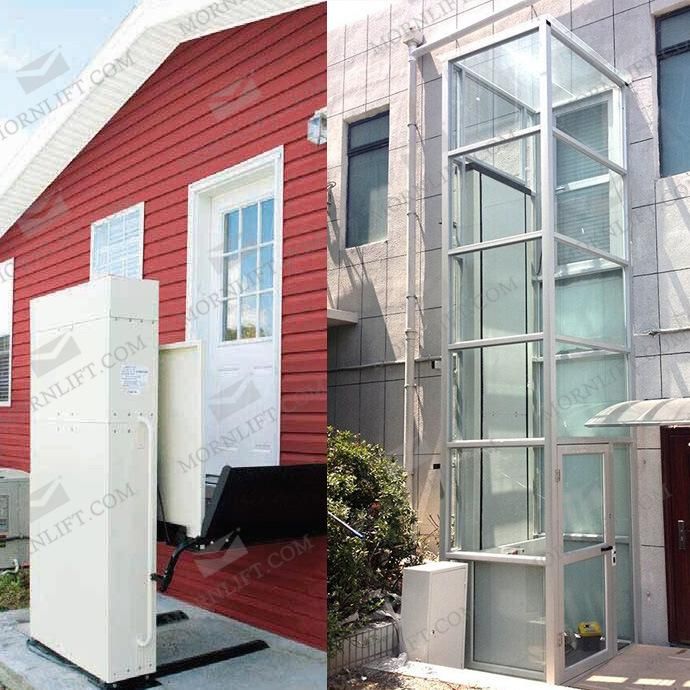

The wheelchair lift can also be added with shafts made from tempered glasses and aluminum frame.
