CD1 Lift Equipment Electric Wire Rope Hoist with Ce
Shanghai Yiying Crane Machinery Co., Ltd.- Application:Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type:Electric Hoist
- Sling Type:Wire Rope
- Lift Speed:2~8m,min
- Maximum Lifting Height:>20m
- Chain Falls:Wire Rope
Base Info
- Model NO.:CD1
- Certification:CE, ISO9001:2000
- Condition:New
- Color:as Your Request
- Service:24 Hours Online Service
- Transport Package:Carton or Wooden Case for The Manual Chain Hoist
- Specification:SGS. TUV. ISO. CE
- Trademark:HUGO
- Origin:China, Shanghai
- HS Code:8425110000
- Production Capacity:100000PCS,Year
Description
1.Reducer: adopt third-class dead axel helical gear transmission structure gear
and geaaxel are made of heat treated alloy steel
Model
CD1-0.25
CD1-0.5
CD1-1
CD1-2
CD1-3
CD1-5
CD1-10
Capacity(t)
0.25
0.5
1
2
3
5
10
Standard lift(m)
3-9
6-12
6-30
6-30
6-30
6-30
9-30
Lifting speed(m/min)
88/0.8
88/0.8
88/0.8
88/0.8
88/0.8
77/0.7
Running speed(m/min)
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
20(30)
Wire rope type
6x37-4.8-180
6x37-7.4-180
6x37-11-155
6x37-13-170
6x37-15-200
6x37-17.5-200
I Beam track type
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Motor
Power(KW)
04
0.8
1.5
3.0
4.5
7.5
13
R.P.M(r/min)
1400
1380
1380
1380
1380
1380
1380
Voltage(V)
380
380
380
380
380
380
380
Frequency(Hz)
50
50
50
50
50
50
50
Phase
3
3
3
3
3
3
3

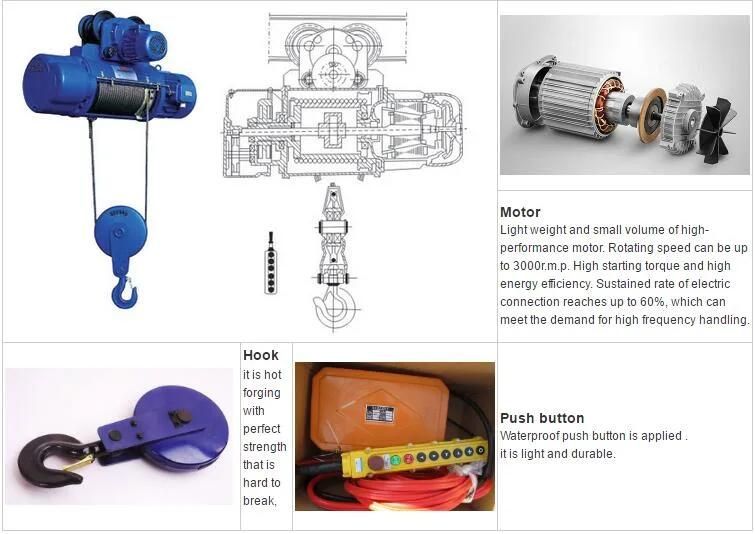

CD1 Model wire rope electric hoist lifting block CD1 Hoist Gearbox
![CD1 Lift Equipment Electric Wire Rope Hoist with Ce](http://www.853983.com/uploads/image/2021/70/a9/22/b4/17988e37771aaad003c61c5d3301eccc.jpg)

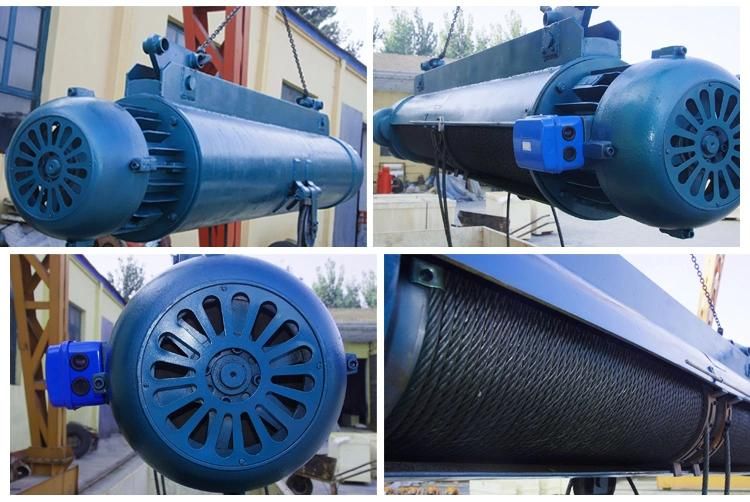

CD1 Model wire rope electric hoist Material object
![CD1 Lift Equipment Electric Wire Rope Hoist with Ce](http://www.853983.com/uploads/image/2021/a5/4e/d3/be/d8ced8ff707e11b82a97d8f3273dc05d.jpg)
CD1 Model wire rope electric hoist lifting block production process
![CD1 Lift Equipment Electric Wire Rope Hoist with Ce](http://www.853983.com/uploads/image/2021/ed/17/48/46/bc25bf2eae407f720d1834b285813e7e.jpg)
