CE Electrical & Hydraulic Wheelchair Lift (T-1600)
Changzhou Xinder-Tech Electronics Co., Ltd.- Application:Coach, Tourist Bus
- Lift Mechanism:Electrical and Hydraulic
- Carrying Capacity:350kg
- Moves:Stationary
- Driven Type:Electrical and Hydraulic
- Running Mode:Stationary
Base Info
- Model NO.:T-1600
- Certification:CE
- Platform Size:830mm*1220mm
- Overall Dimension:282mm*1016mm*1068mm
- Max Lifting Height:1600mm
- Loading Capacity:350kgs
- Rear Rollstop:816mm*250mm
- Voltage:24V
- Gross Weight:185kg
- Transport Package:Wooden Case
- Specification:CE
- Trademark:Xinder
- Origin:Changzhou Jiangsu China
- HS Code:8428909090
- Production Capacity:500 Sets Per Month
Description
Basic Info.
Model NO. T-1600 Certification CE Platform Size 830mm*1220mm Overall Dimension 282mm*1016mm*1068mm Max Lifting Height 1600mm Loading Capacity 350kgs Rear Rollstop 816mm*250mm Voltage 24V Gross Weight 185kg Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per MonthProduct Description
Introductions:

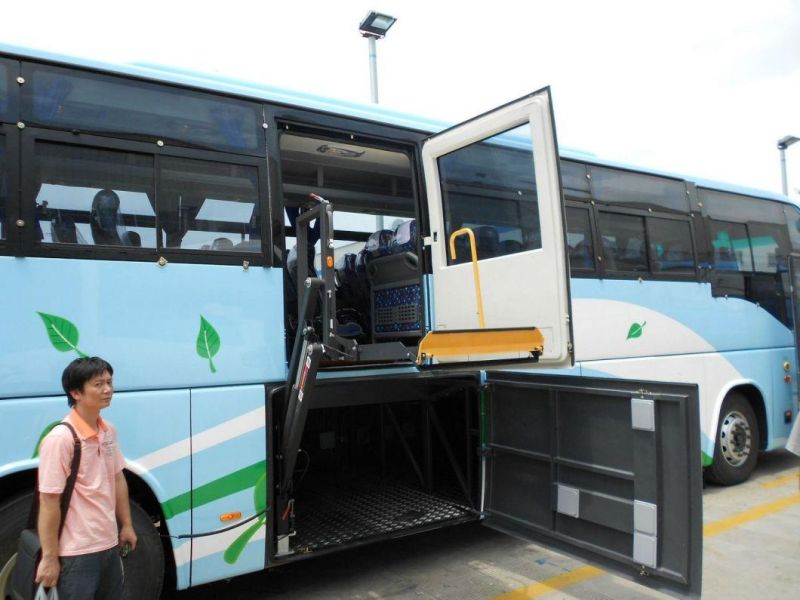

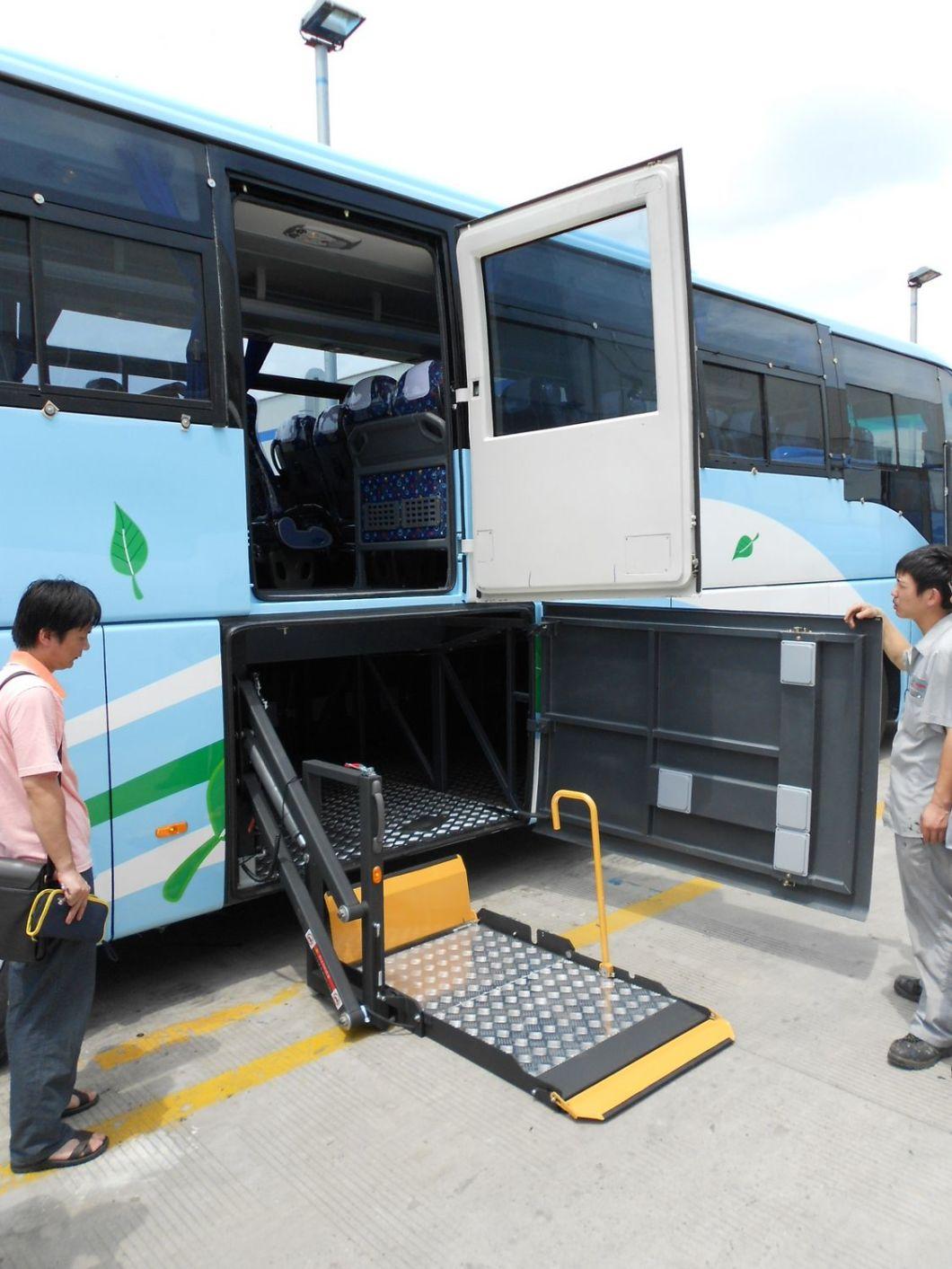

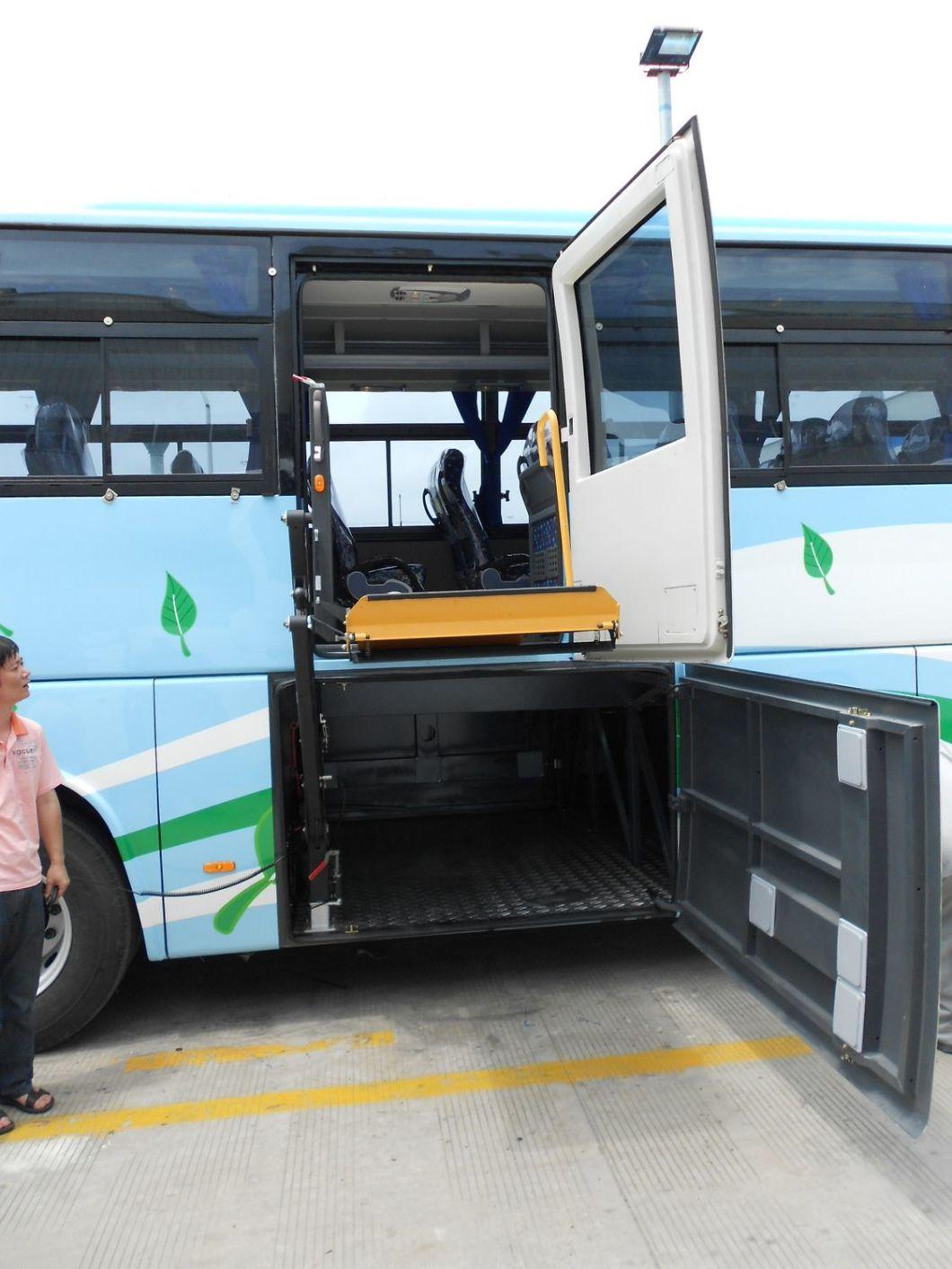

This wheelchair lift is installed in bus luggage.
It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.
It is a kind of semi-automatic wheelchair lift.
Open platform manually, but movements of lifting and lowering is automatic.
Max lifting height can reach 1600mm.
Rotating direction can be clockwise or anti-clockwise.
Advantages:

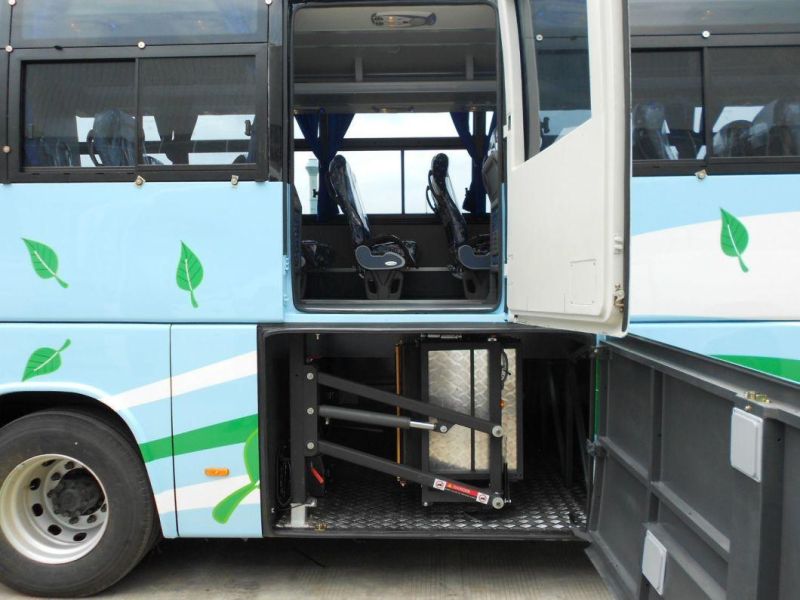

Stays out of sight and out of way when not in use;
Doesn't obstruct view, access and emergency exit when stowed;
Warning sound during working;
Manual backup function for emergency;
Door interlock function;
Mechanical automatic roll stops;
Anti-skid platform;
Powerful hydraulic pump ensures smooth and stable movement;
Side handrails to increase comfort and security;
Technical Specification:
Voltage: 12Vdc or 24Vdc;
Power: 800W;
Loading capacity: 350KG;
