• Model NO.：WL-STEP-1200
• Certification：CE
• Motor Power：0.8kw
• Pressure：2500psi
• Voltage：12V,24V
• Platform Size：1152mm*819mm
• Max Lifting Height：1200mm
• Required Door Net Width：Over 1100
• Cylinder Diameter&Stroke：45*600 Unidirectional Action
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. WL-STEP-1200 Certification CE Motor Power 0.8kw Pressure 2500psi Voltage 12V/24V Platform Size 1152mm*819mm Max Lifting Height 1200mm Required Door Net Width Over 1100 Cylinder Diameter&Stroke 45*600 Unidirectional Action Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

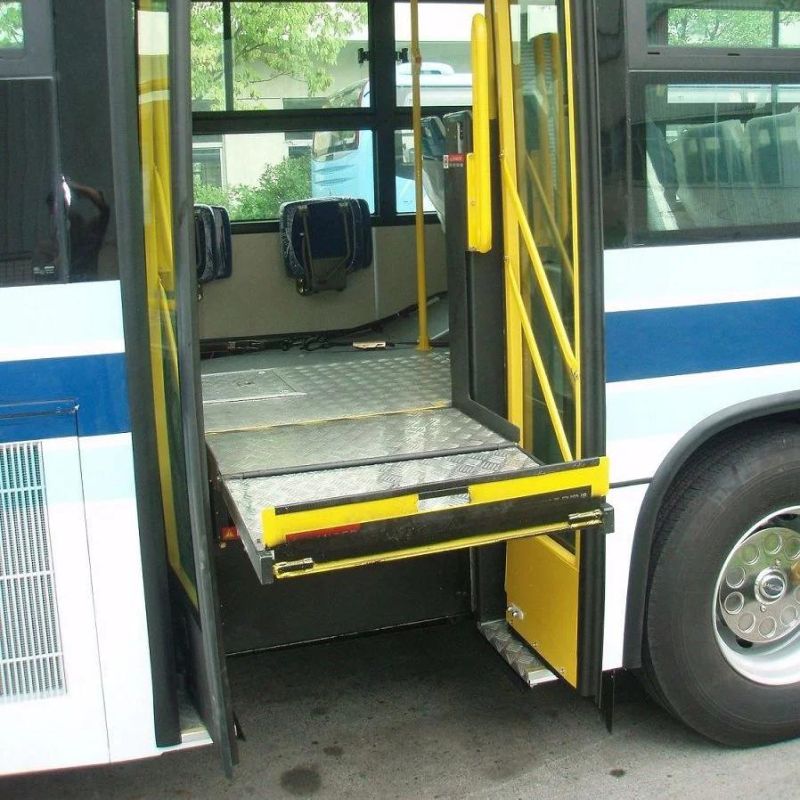

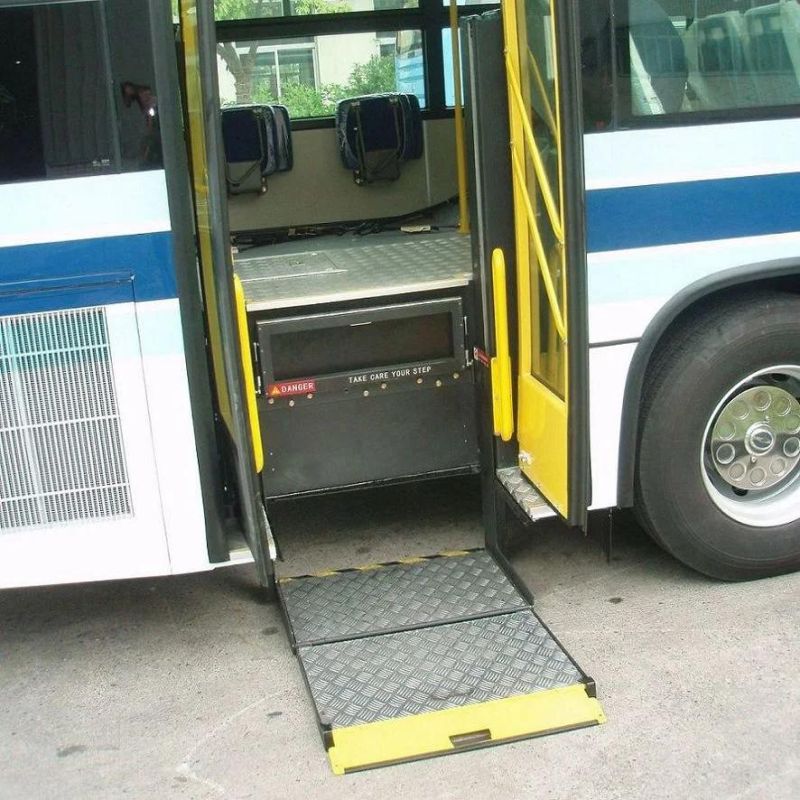

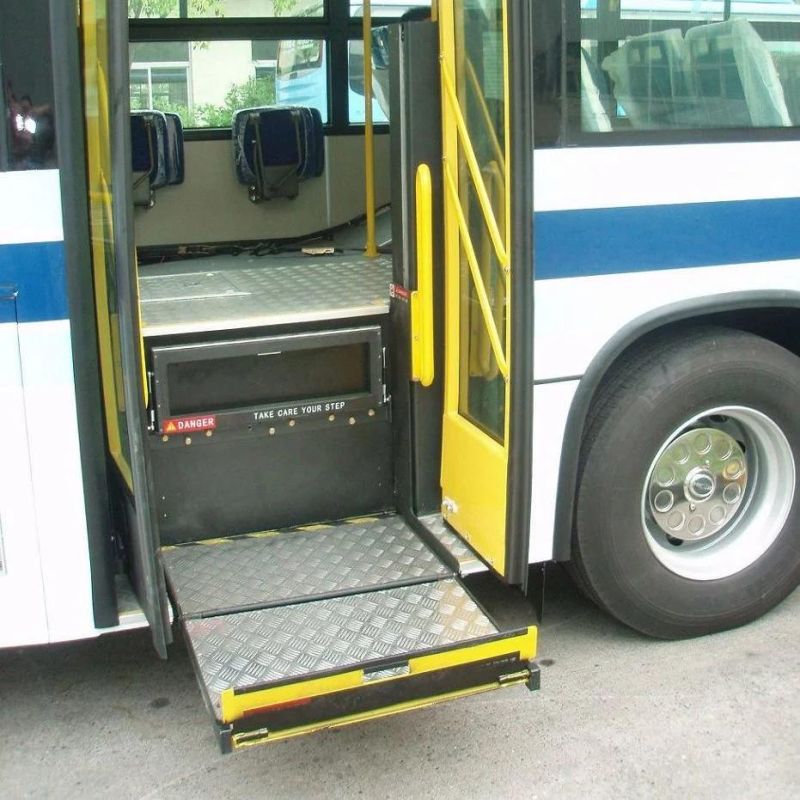

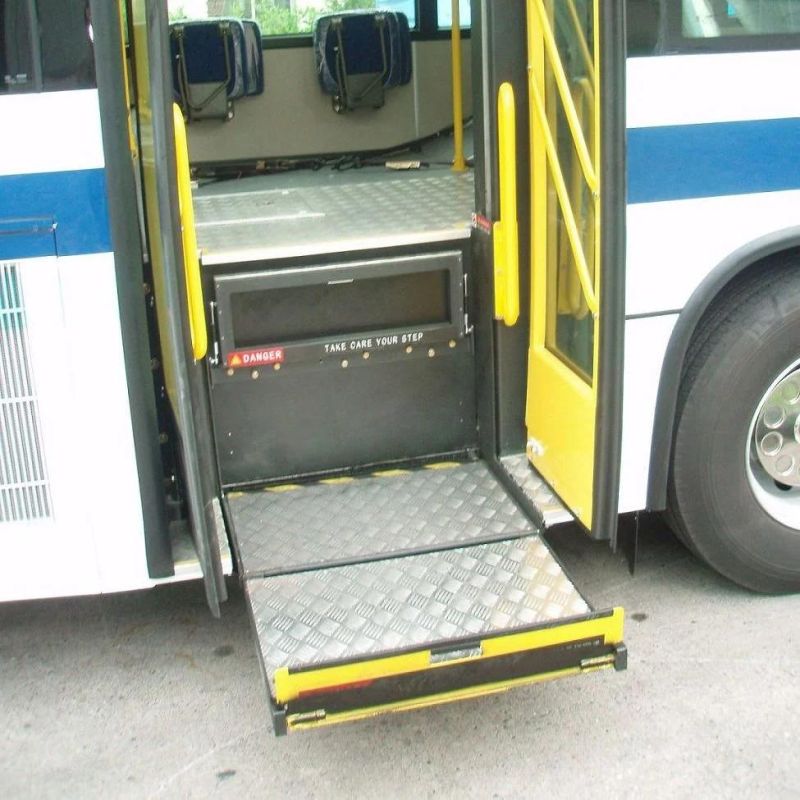

• This wheelchair lift is installed in bus step area.

• It can be used as bus steps when not in use.

• It is designed to help a person to get on bus easily and comfortably while seated in a wheelchair.

• It is a kind of semi-automatic wheelchair lift.

• Open platform manually, but movements of lifting and lowering is automatic.

• Max lifting height can reach 1150mm.



Advantages:

• Used as bus steps when not in use;

• Doesn't obstruct view, access and emergency exit when stowed;

• Warning sound during working;

• Manual backup function for emergency;

• Door interlock function;

• Anti-skid platform;

• Powerful hydraulic pump ensures smooth and stable movement;

• Side handrails to increase comfort and security;



Technical Specification:

• Voltage: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350KG;
