Stationary Scissor Lifting Platform with 2.5t Capacity

Jinan Morn Technology Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Work Platforms
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Special Weight Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：No

Base Info

  • Model NO.：SSL2.5-3.7
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Lift Speed：3-6m,Min
  • Voltage：220V,380V, AC Power, 1 or 3 Phase, Can Also Be Mad
  • Guardrail(Optional)：1000mm
  • Platform：Antiskid
  • Color：Yellow, Blue, Green, Black as Your Requirement
  • Installation：in Pit or Directly on Ground
  • Max Load Capacity：1.2 Times Rated Load
  • Surface：Rust-Proof
  • Painting：Epoxy Paint
  • Lifting Hook：4 Lifting Hooks for Easy Moving and Install
  • Transport Package：Plywood Case or Nude Packing Based on Actual Need
  • Specification：CE
  • Trademark：Morn
  • Origin：Shandong, China
  • HS Code：84289090
  • Production Capacity：50PCS Per Month

Description

 ModelLoadPlatform sizeLifting heightNo-working heightDimensionPowerSSL 2-52T2.1*1.2M5.0M870MM2.1*1.2*0.87M4KW/380VSSL 1-4.51T2.1*1.5M4.5M800MM2.1*1.5*0.80M3KW/380VSSL 1.5-3.81.5T2.2*2.0M3.8M700MM2.2*2.0*0.70M4KW/380VSSL 1-61T1.9*1.1M6.0M1100MM1.9*1.1*1.10M3KW/380VSSL 2-62T2.0*1.3M6.0M1200MM2.0*1.3*1.20M4KW/380VSSL1 -4.31T2.0*1.8M4.3M800MM2.0*1.8*0.80M4KW/380VSSL 3-2.43T2.0*2.0M2.4M630MM2.0*2.0*0.63M2.2KW/380V

3. Advantages:

1. Mature hydraulic lifting system, remote control and multi-control points at the different floors could be realized;
2. Lift Up, Stop and Lower be easily realized at each control point to make sure the lift platform stop at the accurate level point.
3. Smooth working condition, high load capacity, safety controls and reliable performance.
4. Power supply is from local power source, customize according to local voltage.


4. Safety Precaution:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
5. Safety guardrails can be added in all side, one side, two sides or per your need.
6. Supporting guard rails: two pieces connected with scissor lift to make sure the lift more stable when working


5. Applications

Mainly used for production lines with height difference between the goods transported;
Car lifting between different floors or car parking buildings' or show rooms;
Dock transfer for logistics centers, sea ports or at factories or warehouse;
Heavy duty materials lifting up or down;
Goods elevators with durable service life;
Large equipment assembly components when lifting;
Cargo handling, vehicles moving or under other conditions which need loading and unloading works.


6. Warranty:

1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.


7. Product picture show:

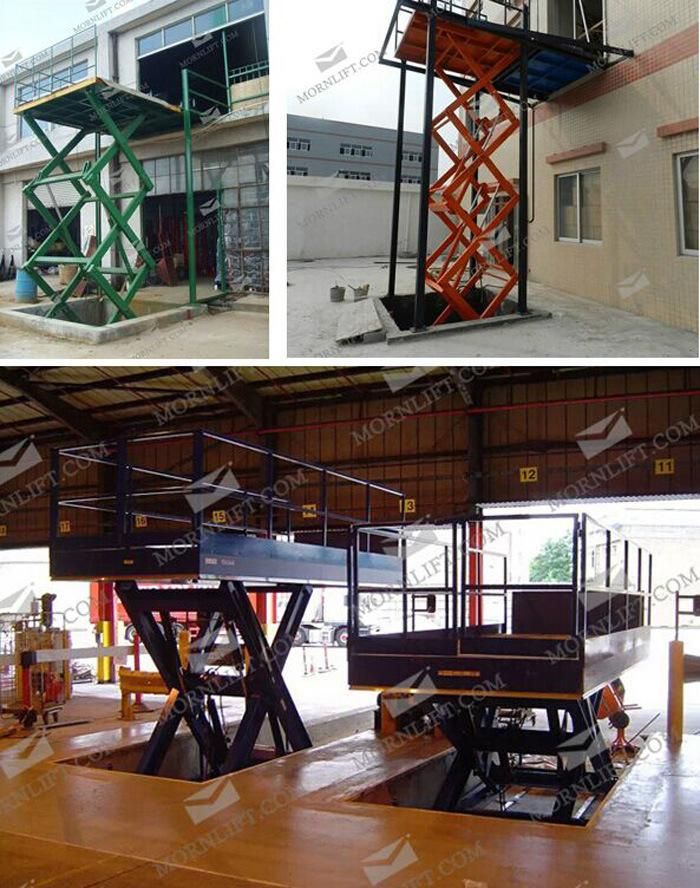

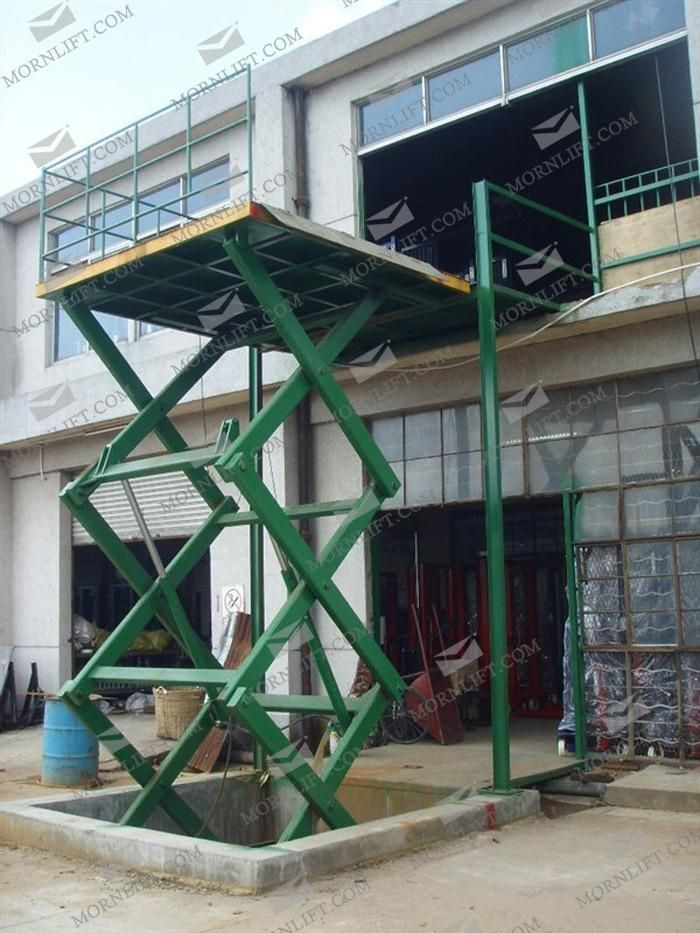

Various applications for warehouse, car lifting, cargo transfer both indoor or outdoors.
Stationary Scissor Lifting Platform with 2.5t Capacity
Stationary Scissor Lifting Platform with 2.5t Capacity

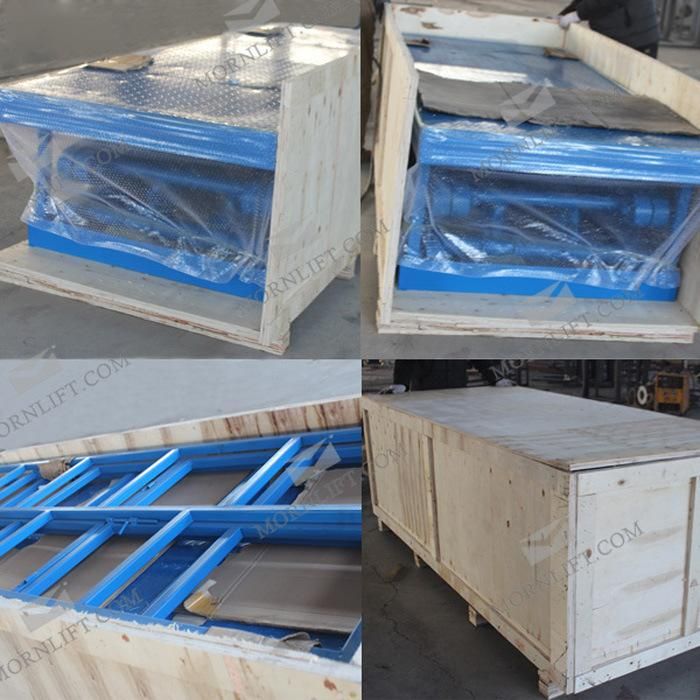

Plywood case packing with steel tube enhanced in the case. Stretched films keep dust away from the lift, so when coustomer recieve it, the lift is brand new.

 Stationary Scissor Lifting Platform with 2.5t Capacity

8. Please tell us the following info and then we will send our quotation and design drawing to you ASAP.
1) Max platform height
2) Loading capacity
3) Table size (L*W)
