• Model NO.：LRL0.25-8
• Feature：Explosion-Proof, Insulating
• Certification：CE
• Rated Loading Capacity：250kg
• Max. Lifting Height：8000mm
• Table Size：1400*1100mm
• Control System：Both on The Platform and Ground
• Material：Stainless Steel
• Remote Control：Yes
• Emergency Stop：Manual Emergency Stop Valve
• Platform Safety：Underpan Sensor(Optional)
• Installation：on The Ground, No Pit
• Warranty：12 Months Apart From Man Made Faults
• Transport Package：Plywood Case
• Specification：CE, SGS
• Trademark：MORN
• Origin：Shandong China
• HS Code：8428909090
• Production Capacity：200 Units Per Month

Basic Info.

Model NO. LRL0.25-8 Feature Explosion-Proof, Insulating Certification CE Rated Loading Capacity 250kg Max. Lifting Height 8000mm Table Size 1400*1100mm Control System Both on The Platform and Ground Material Stainless Steel Remote Control Yes Emergency Stop Manual Emergency Stop Valve Platform Safety Underpan Sensor(Optional) Installation on The Ground, No Pit Warranty 12 Months Apart From Man Made Faults Transport Package Plywood Case Specification CE, SGS Trademark MORN Origin Shandong China HS Code 8428909090 Production Capacity 200 Units Per Month

Product Description

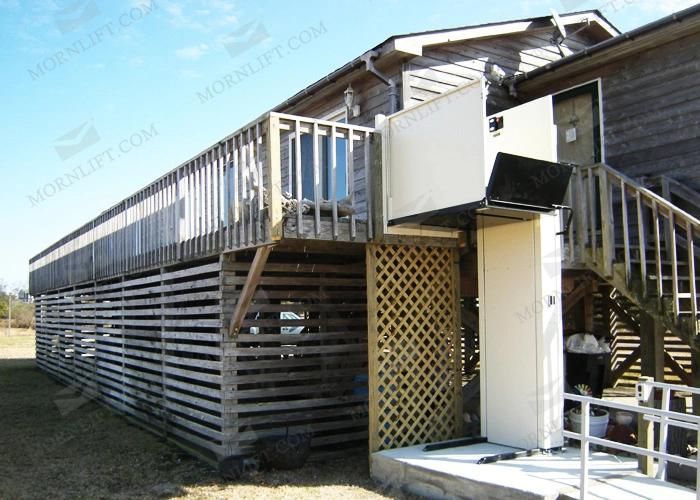

8m vertical platform lift for the diabled



The MORN Brand Vertical Handicap Lift provides a convenient, easy and reliable access to the second floor, it can easily accommodates a wheelchair with the max
capacity 550 lbs(250kg). Built with durability in mind, the MORN handicap lift is up
for the challenge of tough climate conditions.

You can count on this lift for reliable performance and ease of operation.

An ideal lift for home use,the handicap lift is approved for certain commercial
accessibility projects as well





SAFETY DEVICE:
Safety Interlock: Lock the platform when it is out of control
Emergency Stop: The lifting and lowering process can be stopped immediately by
pressing the emergency button.
Underpan sensors to stop the lift if it senses an obstruction when lifting or
lowering.(Optional)
Emergency lowering: The platform can be lowered by opening hydraulic valve
manually or rolling screw rod.
Auto-flap Turn up after lifting, which can prevent the wheelchair rolling.
Column switch: Two column switch, one is on the ground floor, one on the first
floor




SPECIFICATIONS



Platform size	1200-1400mm L* 1000-1100mmW
Min Platform height	80mm
Speed	60mm/s
Lift height	1000 to max 6000mm
Power Output	0.75kw-2.2kw
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic or Screw type
Material of Platform	Stainless steel or Powder Spraying

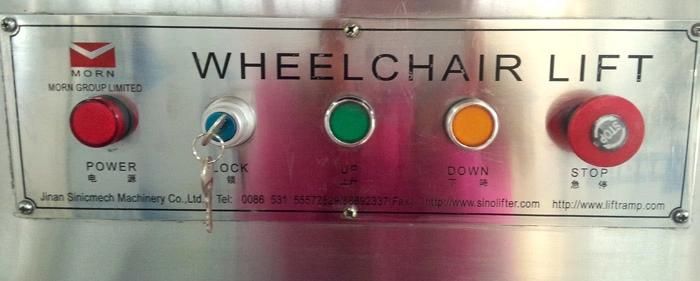

Operation Panel	Polished Stainless steel(Up Down and Emergency Stop)
Working Condition	Both indoors and outdoors
Working temperature	From -10°~60°C
Non-pit installation	directly fixed to concrete floor
Control Device	Calling box and remote controller
Optional	Tempered-glass-door;
	Customerized-LOGO
	Interlocking device
	Safety senser Extra guardrail for up floor

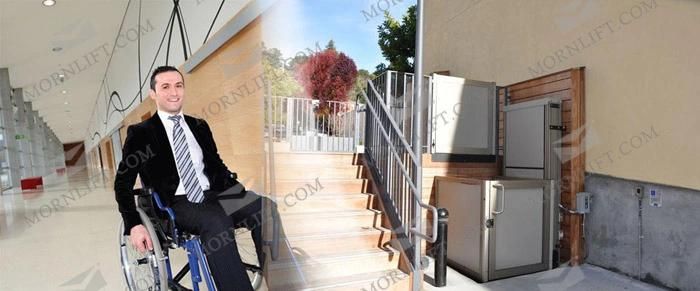

Applications:
MORN lift is also available to suit specific installation needs including enclosed
units,mobile and three-gate applications. Also the two ways in and out according
 to different installation environment, 180 ° Access and 90° Access.
