Electric Mine Shaft Sinking Wire Winder Slow Lifting Speed Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Driven Type：Screw
- Speed：Slow
- Carrying Capacity：Weight Level
- Tonnage：25T
- Reel Number：1
Base Info
- Model NO.：JZ-5,400
- Running Mode：Stationary
- Feature：Antiseptic, Insulating, Explosion-Proof
- Certification：CE
- Model：Jz-5,400
- Maximum Static Tension of Rope：5000kg
- Rope Capacity：400m
- High Speed：6m,Min
- Twisting Layers：6 Layers
- Rope Diameter：23mm
- Diameter：400mm
- Width：900mm
- Date：15 Days
- Ability：1000,Month
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE, SGS
- Origin：China
- HS Code：8531100000
- Production Capacity：1000 Sets Per Month
Description
ModelJZ-5/400 JZA-5/600 JZ-10/800/1000 JZ-16/800 JZ-16/1000/1300 JZ-25/1300/1500 Maximum Static Tension of Rope 5000KG 5000KG 10000KG 16000KG 16000KG 25000KG Rope Capacity 400M 600M 800/1000M 800M 800/1300M 1300/1500M Mean Speed of Rope High Speed 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN 6M/MIN Low Speed 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN 3M/MIN Twisting Layers 6 Layers 10 Layers 7 Layers 6 Layers 7 Layers 9 Layers Rope Diameter 23MM 23MM 31MM 40MM 40MM 52MM Winding Drum Diameter 400MM 400MM 800MM 1000MM 1000MM 1050MM Width 900MM 1000MM 1050MM 1400MM 1400MM 1560MM Center Height 650MM 580MM 800MM 1050MM 1050MM 1250MM Speed Ratio Reducer High Speed 50 50 63.5 77 77 77 Low Speed 100 100 127 154 154 154 Overall gear ratio High Speed 252.5 252.5 388 506.6 506.6 506.6 Low Speed 505 505 776 1013.2 1013.2 1013.2 Motor Model Y160L-6 Y160L-6 Y200L2-6 YR250M1-8 YR250M1-8 YZR280M-8 Power 11KW 11KW 22KW 30KW 30KW 55KW Rotate Speed 970 Rp/M 950 Rp/M 970 Rp/M 720 Rp/M 720 Rp/M 728 Rp/M Voltage 380V 380V 380V 380V 380V 380V

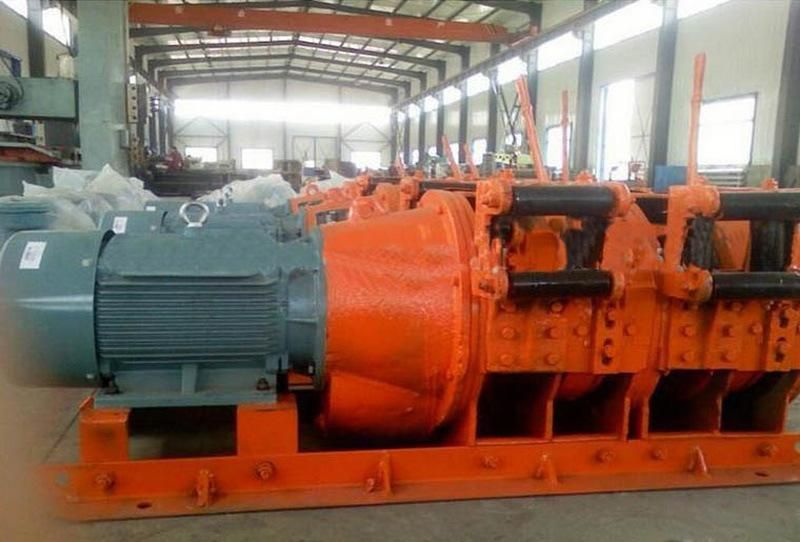

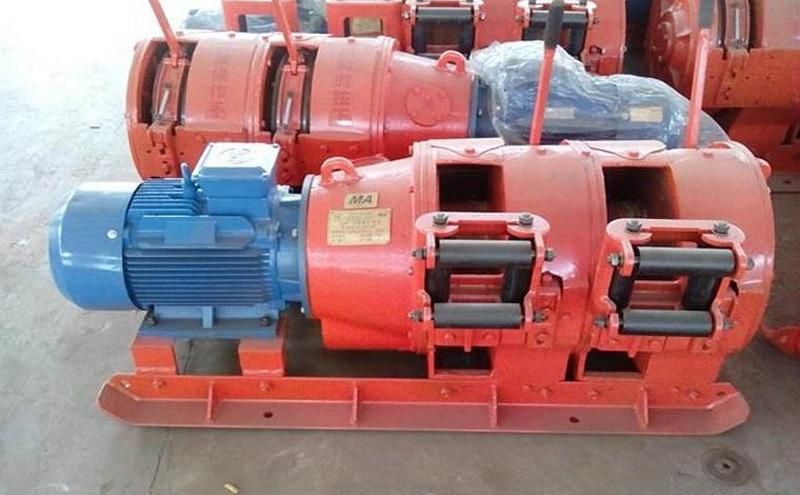

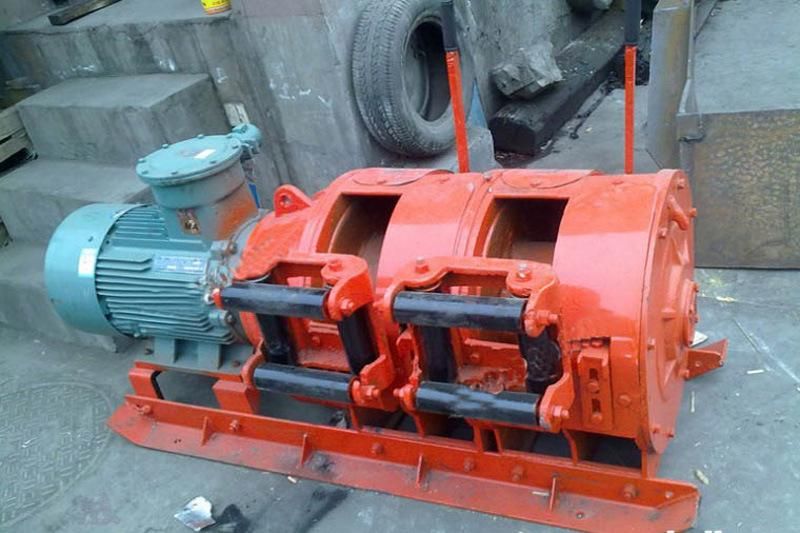

Photos of Electric Mine Shaft Sinking Wire Winder Slow Lifting Speed Winch
