• Model NO.：HSZ
• Certification：CE, ISO9001:2000, TUV, SGS
• Condition：New
• Color：Yellow or to Order
• Capacity：2t
• Chain：G80
• Hook：Forged
• Warranty：2 Years
• Net Weight：14kg
• Grow Weight：18kgs
• Wheel of Hand Pulling Chain：Exact Interval , Smooth Pulling , Would Not Get St
• Wheel Gear：Thicken Steel , Holding-on Together Compactness
• Transport Package：Carton
• Specification：Carton Size 33*30*20cm
• Trademark：HUGO
• Origin：Shanghai-China
• HS Code：8425190000
• Production Capacity：2000pieces,Month

Basic Info.

Model NO. HSZ Certification CE, ISO9001:2000, TUV, SGS Condition New Color Yellow or to Order Capacity 2t Chain G80 Hook Forged Warranty 2 Years Net Weight 14kg Grow Weight 18kgs Wheel of Hand Pulling Chain Exact Interval , Smooth Pulling , Would Not Get St Wheel Gear Thicken Steel , Holding-on Together Compactness Transport Package Carton Specification Carton Size 33*30*20cm Trademark HUGO Origin Shanghai-China HS Code 8425190000 Production Capacity 2000pieces/Month

Product Description

Model	HSZ0.5	HSZ1	HSZ1.5	HSZ2	HSZ3	HSZ5	HSZ10	HSZ20
Capacity	0.5	1	1.5	2	3	5	10	20
standard lift (M)	2.5	2.5	2.5	2.5	3	3	3	3
Running test load ( ton)	0.75	1.5	2.25	3	4.5	7.5	12.5	25
Min distance between hooks  mm	290	350	420	430	500	620	820	1060
Chain pull to lift full load  N	225	309	343	314	343	383	392	392
No. of load chain fall lines	1	1	1	2	2	2	4	8
Diameter of load chain  mm	6	6	8	6	8	10	10	10

1.Chain: G80 alloy steel, high strength;
2.Hook: Forged 20manganese steel, more security;
3.100% four times load tested before packaging.


FAQ :

1.Is your product customized?Thanks for your question. Yes, because the working condition are different, all our products are customized dependingon detail requirement!
So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick quote!

2. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can
also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!

3.The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.

4. What's the information should I provide when inquiry?
  a. What's the lifting material?
  b. How much is the maximum lifting weight of the hoist?
  c. Have you installed the rails? Do you need us supply the rails? How long is it?
  d. Where are the working environment?

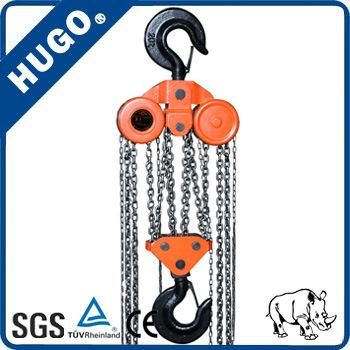

10TONS

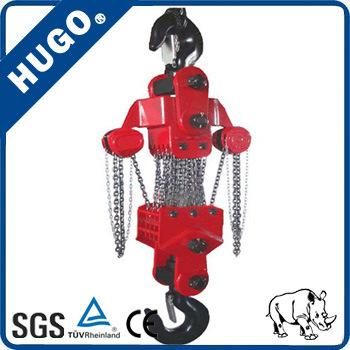

20TONS
