| Main Specs of Articulating Boom Lifts |
| Comply with CE/ANSI/GB Standard |

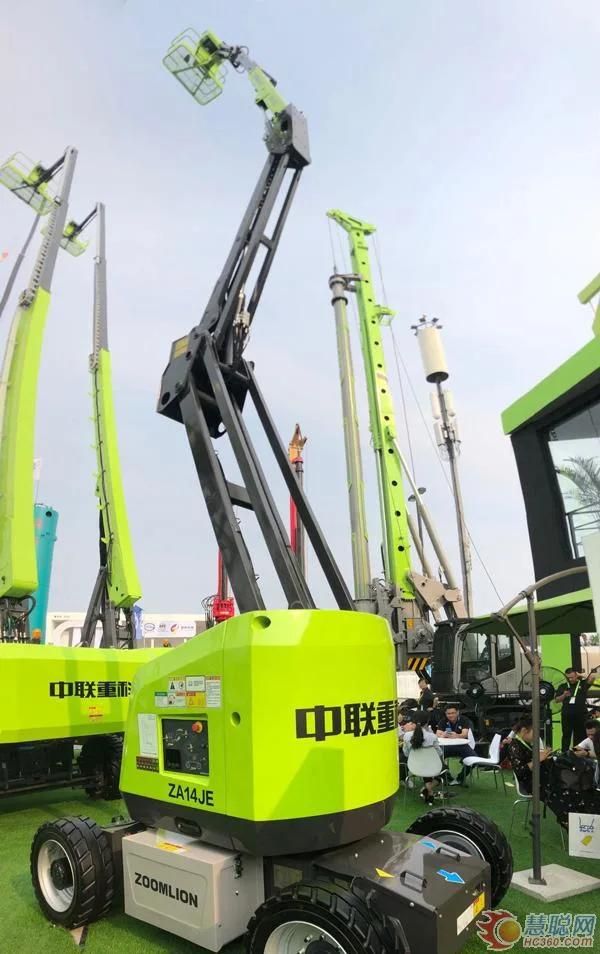

| Model | ZA14J |
| Size |
| Work Height | 15.80m |
| Platform Height | 13.80m |
| Horizontal Outreach | 7.70m |
| Up and Over Height | 7.55m |
| A - Stowed Length | 6.57m |
| B - Stowed Width | 2.30m |
| C - Stowed Height | 2.27m |
| D - Platform Length | 1.83m |
| E - Platform Width | 0.76m |
| F - Wheelbase | 2.36m |
| G - Ground Clearance | 0.42m |
| Performance |
| Platform Capacity | 300kg |
| Drive Speed | 6.8km/h |
| Gradeability | 45% (24°) |
| Axles Oscillation | 0.1m |
| Turning Radius (Inside) | 2.06m |
| Turning Radius (Outside) | 4.78m |
| Swing | 355° |
| Platform Rotation | ±90° |
| H-Tail Swing | 0 |
| Max. Working Slope | 5° |
| Max. Wind Speed | 12.5m/s |
| Power |
| Diesel Engine | Deutz D2.9L4 |
| Engine Power | 35.7kw/2600rpm |
| Fuel Tank Capacity | 65L |
| Auxiliary Power | 12V |
| Control Voltage | 12V |
| Hydraulic System Capacity | 150L |
| Hydraulic Tank Capacity | 76L |
| Tire |
| Type | 315/55 D20 Foam-filled Tires |
| Weight |
| Gross | 7100kg |
| Highlights |
| 300 kg platform capacity for higher efficiency |
| Built-in multiple pressure control leveling system to enhance stability |
| Precise load sensing system to improve overload safety operations |
| Integrated with rotary reducer to enhance rotation stability |
| Hostile Kits available for dusty working environment |
| Deadweight Lowering System for smooth operation and energy efficiency |
| Features |
| Standard Features | Accessories & Options |
| Horn | Platform work lights |
| All motion alarm | Anti-collision device |
| Proportional control | AC power to platform |
| Self-closing entry gate |
| Flashing amber beacon |
| GPS position and tracking system |
| Remote monitoring and rental management system |
| Auto-leveling system |
| Emergency stop button |
| Over tilt protection system |
| Emergency descent system |
| On-board diagnostic system |
| Oscillating axle |
| 4.3' LED display |
| Load sensing system |
| Swing-out engine tray |
