• Model NO.：ATB0.2-10
• Feature：Moving
• Certification：CE, ISO 9001
• Platform Size：900*700mm
• Color：According You
• Transport Package：Container
• Specification：5400*1600*1900
• Trademark：MORN
• Origin：China
• HS Code：842890
• Production Capacity：5000 Sets , Month

Basic Info.

Model NO. ATB0.2-10 Feature Moving Certification CE, ISO 9001 Platform Size 900*700mm Color According You Transport Package Container Specification 5400*1600*1900 Trademark MORN Origin China HS Code 842890 Production Capacity 5000 Sets / Month

Product Description

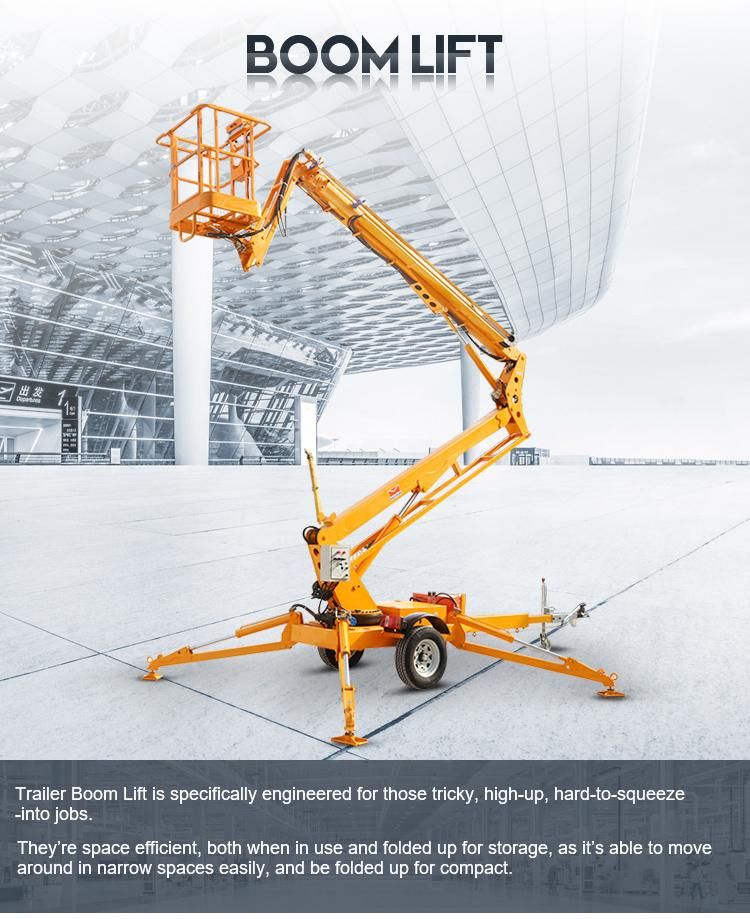

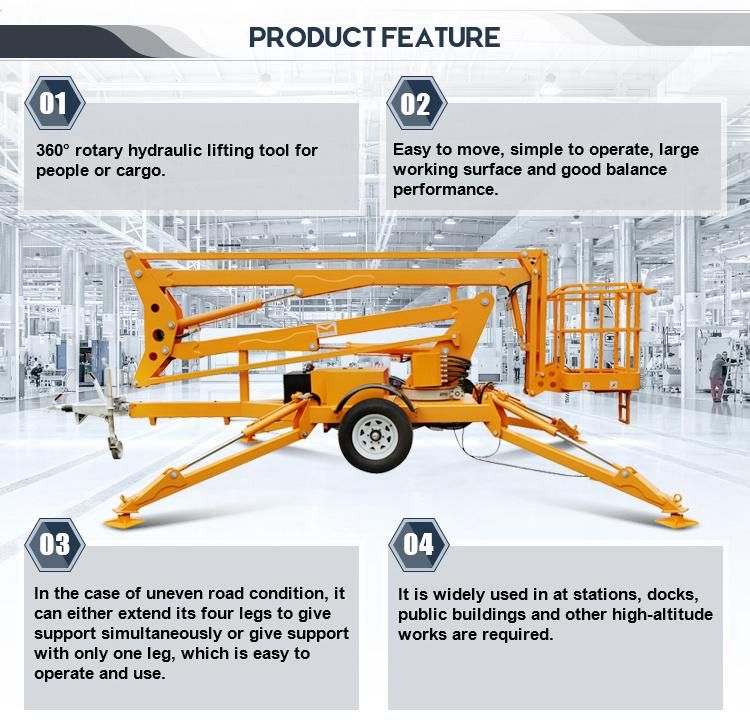

It can be towed everywhere by car, and the four automatic hydraulic legs provide high stability.

Widely used in roads, street light maintenance, shopping malls, and other working place.

Standard petrol engine power, battery and AC power are optional.

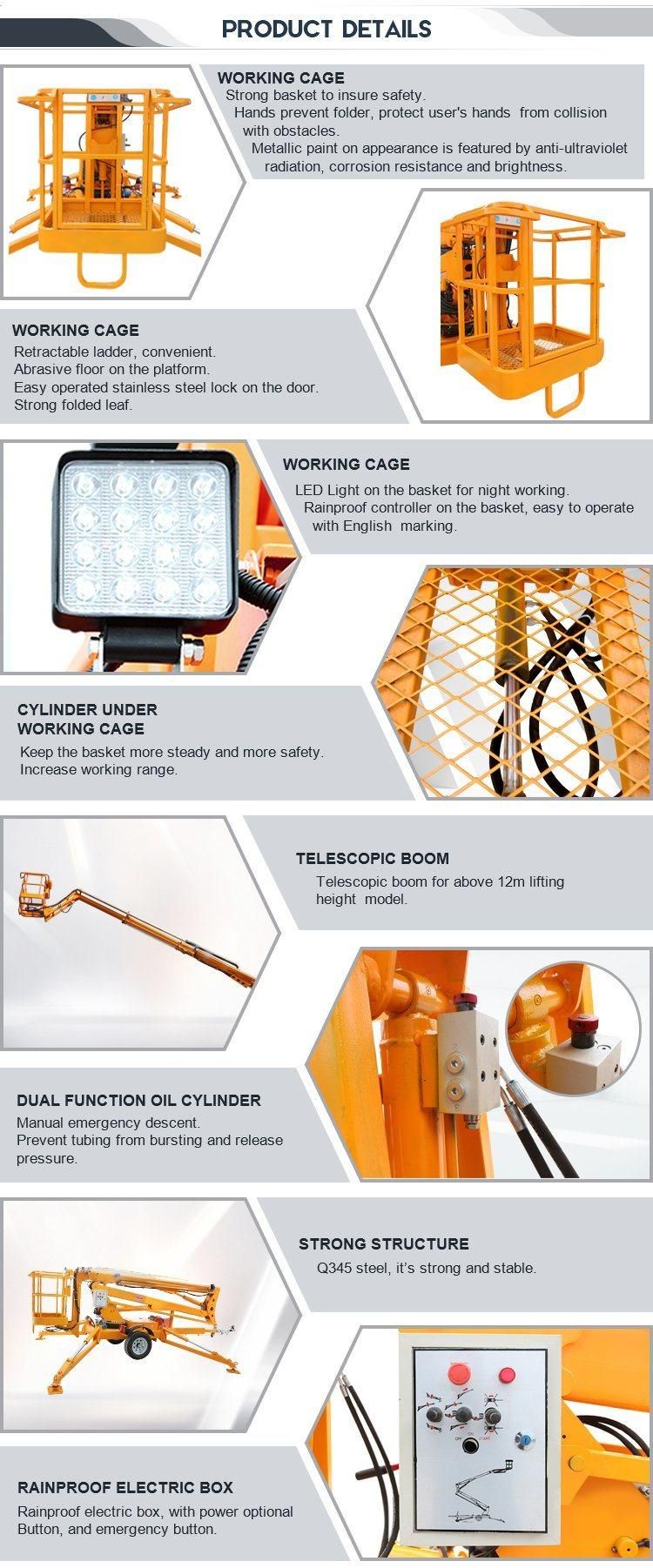

Advantages and safety

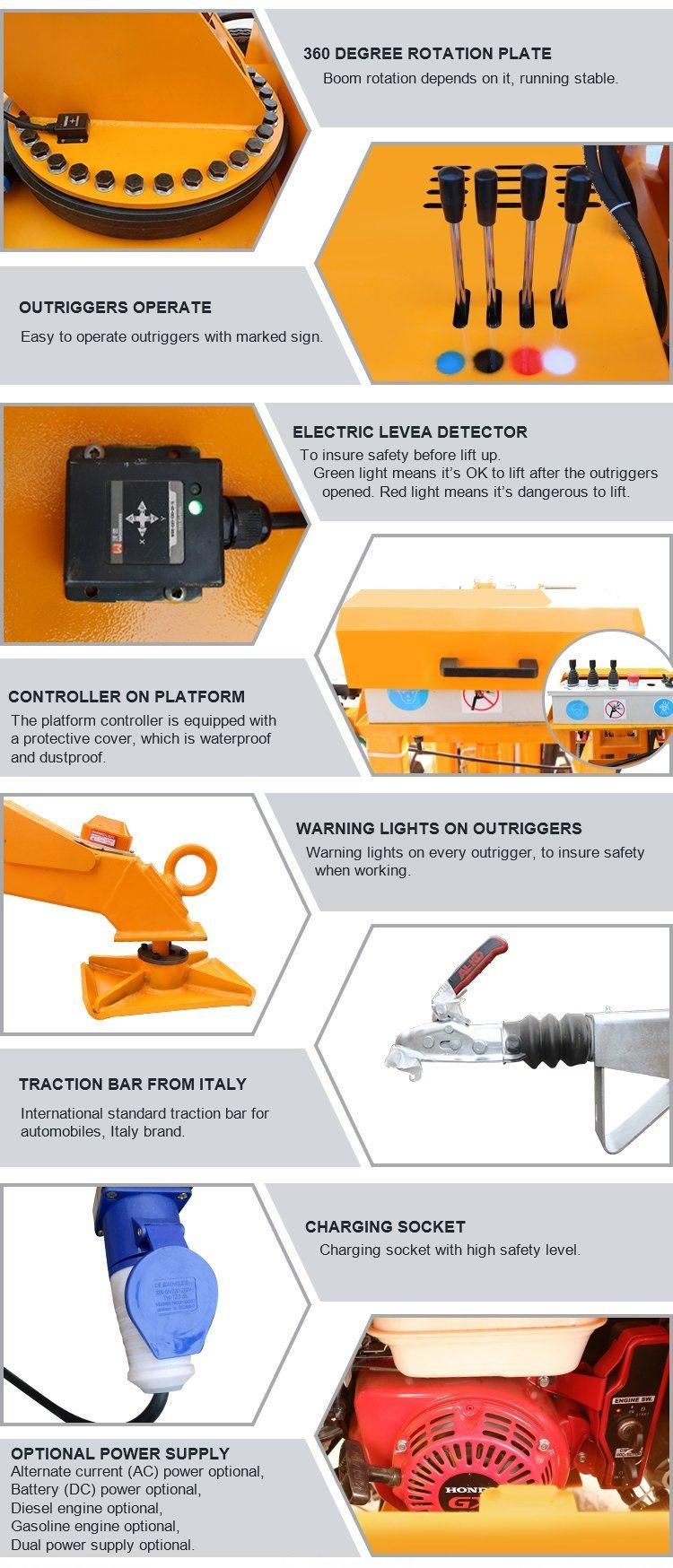

1.Outriggers  :
Guarantee the boom lift and worker safety during working.

2. hydraulic lock
Each outrigger is installed one hydraulic lock, prevent outrigger back, in case of the hydraulic  oil pipe damaged. It will protect worker safety at top platform

3.Warning alarm
During boom lift work, warning alarm will work to remind surround people mind safety

4.Turntable system:
Turnable platform with big load capacity. And slewing bearing adopt fence-mounted.(could be rotated 360°)
Function:Guarantee the boom lift stability during rotation,waterproof and dust proof.IP65
We used is big, strong and durable turntable system .

5.Balance valve:
There is a balancing valve on each hydraulic cylinder
Function: 1.If the hydraulic pipe rupture, balance valve will prevent oil over flow and prevent the lift platform down suddenly. 2.If meet emergency situation, we could down the platform by balance valve.
    Boom lift with balance valve main parts imported from Italy

6.Hands prevent folder on the platform
 The platform with protect bar to protect the hand from clamping, if the platform near the any obstacle.

7.Boom lock:
fixed folding boom,prevent the machine from shaking during movement.(Lock only the first arm)

8.trailing system
The function of the small wheel is to control the direction when the machine is moving manually.The little wheel will rise when the truck goes.

9.Brake
Double brake system
It is imported from Italy with two kinds brake system:
(1)Mechanical brake,One brake line connect to the truck, if the truck stop, boom lift will stop against inertia
(2)Electric brakes,Boom lift could be connect the truck brake light, if truck brake light working, the boom lift will be brake automatically.

10.Emergency stop
The boom lift will be stopped in case of any emergency

11.Trailer has need special tow hook, connect with trucking well, and move or turning smoothly.
12.Transport
10m, 12m, 14m height towable boom lift load in one small container only.
16m,18m height towable boom lift load in one big container only.

Model	ATB0.2-8	ATB0.2-10	ATB0.2-12	ATB0.2-14	ATB0.2-16	ATB0.2-18
Platform height	8 m	10 m	12 m	14 m	16 m	18 m
Working height	10 m	12 m	14 m	16 m	18 m	20 m
Load capacity	200 kg	200 kg	200 kg	200 kg	200 kg	200 kg
Platform size	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm	900*700 mm
Dimensions(mm)	5400*1600*1900	5400*1600*1900	5800*1800*2200	6550*1660*2130	7000*1800*2250	7200*1800*2300
Weight	1600 kg	1600 kg	1800 kg	2500 kg	2800 kg	3800 kg

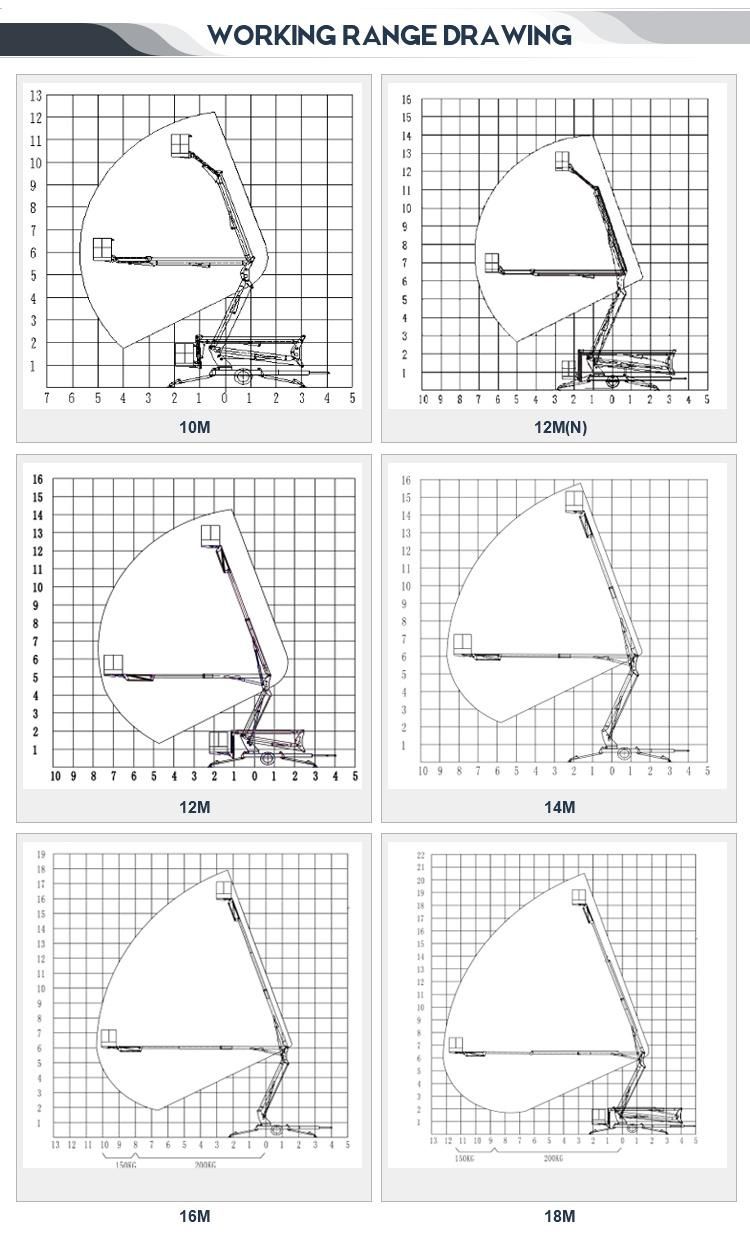

Working radius	4.5 m	4.5 m	7 m	7 m	8 m	8 m
Wind level	<=5	<=5	<=5	<=5	<=5	<=5
Units for 40GP	3 units	3 units	3 units	3 units	2 units	1 units
