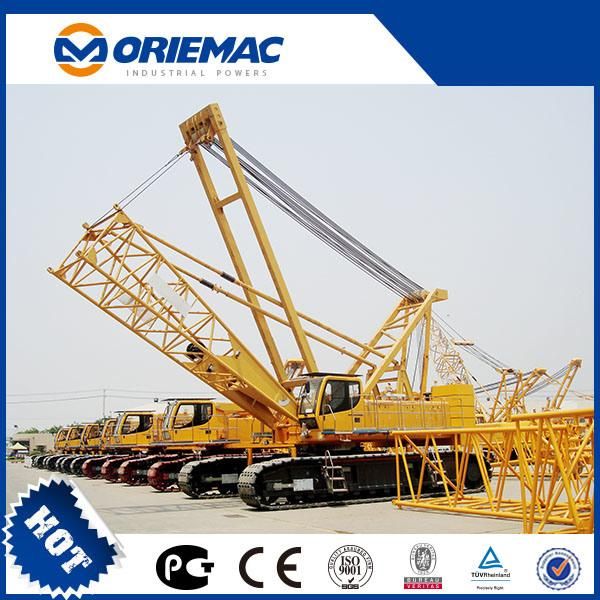

55ton Lifting Capacity Xgc55 Crawler Crane

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Max. Rated Lifting Capacity：55ton
  • Max Load Moment：1994kn.M
  • Boom Length：13~52m
  • Max. Swing Speed：1.5r,Min
  • Max. Travel Speed：1.35km,H
  • Gradeability：40%

Base Info

  • Model NO.：QUY55 XGC55
  • Average Ground Pressure：0.069MPa
  • Engine Power：125,158kw
  • Overall Weight(Main Lifting Hook,13m Boo：48.5t
  • Max. Single Unit Weight for Transportati：31ton
  • Transport Package：Container or RO-RO or Bulk Ship
  • Specification：ISO, CE
  • Origin：Xuzhou, Jiangsu
  • HS Code：84264910
  • Production Capacity：50000PCS,Year

Description


Item
Unit
Parameter
Max. rated lifting capacity
Basic boom
t
55
Fixed jib
t
5
Max load moment
KN.m
1994
Boom length
m
13~52
Boom luffing angle
°
-3~80
Fixed jib length
m
9.15~15.25
Max. single line speed for hoist mechanism (no load, at 5th layer )
m/min
121
Max. single line speed for boom luffing mechanism(at 1st layer)
m/min
52
Max. swing speed
r/min
1.5
Max. travel speed
km/h
1.35
Gradeability
%
40
Average ground pressure
MPa
0.069
Engine power
kW
125/158
Overall weight(main lifting hook,13m boom)
t
48.5
Max. single unit weight for transportation
t
31
Max. single unit dimensions for transportation(L×W×H)
m
11.5×3.47×3.455ton Lifting Capacity Xgc55 Crawler Crane
