• Model NO.：XZJ5067JGKQ4
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Max Lifting Capacity：2000kg
• Weight：5795kg
• Max. Lifting Height：14.9m
• Overall Dimensions：6650*2000*3050mm
• Transport Package：Nude Package
• Specification：ISO, CE
• Origin：Jiangsu, China
• Production Capacity：50units,Month

Model
Unit
XZJ5067JGKQ4
Performance Parameter
Max Operating Height
m
14.9
Max Operating Range
m
7.5
Rated Load of Platform
kg
200
Max Operating Range on Maximum Operating Height
m
2.5
Max Operating  Height on Maximum Operating Range
m
8.8
Max Lifting Capacity
kg
2000
Max Lifting Moment
m
8.2
Dimension Parameter
Overall Dimension
mm
6650×2000×3050
Rotation Angle
°
360° continuous
Platform rotation
°

Vehicle Model
Model of Chassis
QL1070A1HWY
Model of Engine
4KH1-TCG40
Engine Power
kw
96
Cab Seats

2+3
 Chassis parameter of the truck mounted aerial work platform :
Main technical parameter
Unit
XZJ5067JGKQ4
Model of Chassis
QL1070A1HWY
Wheel Base
mm
3360
Front Track
mm
1385
Rear Track
mm
1425
Plate spring amount

7/5+6
Tire Type

7.00R16LT,7.00-16LT
Steering Gear Type

Steering Wheel
Axles Amount

2
Tyre Amount

6
Fuel Type

Diesel

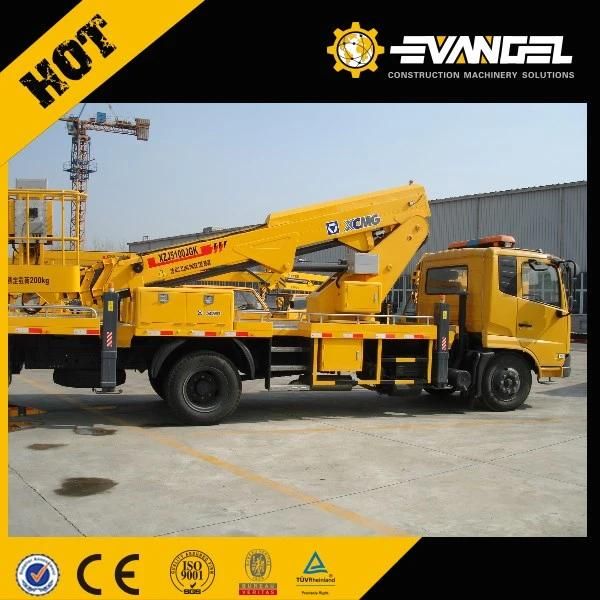

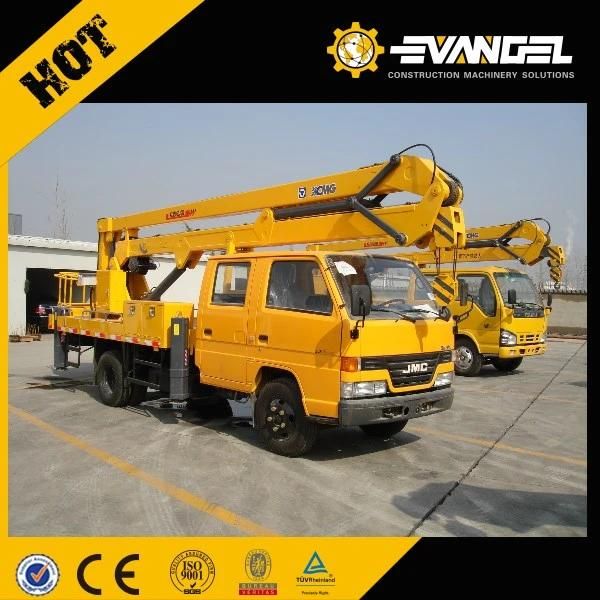

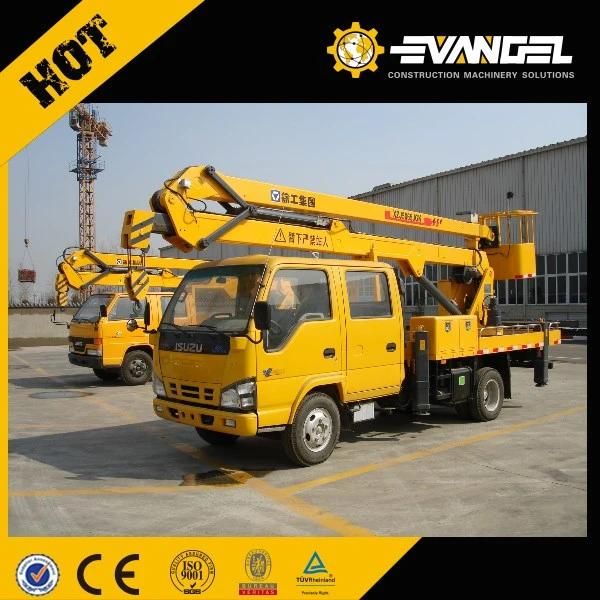

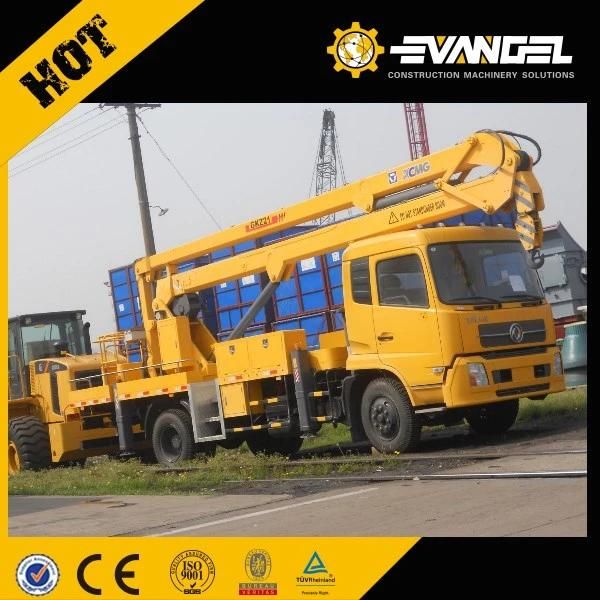

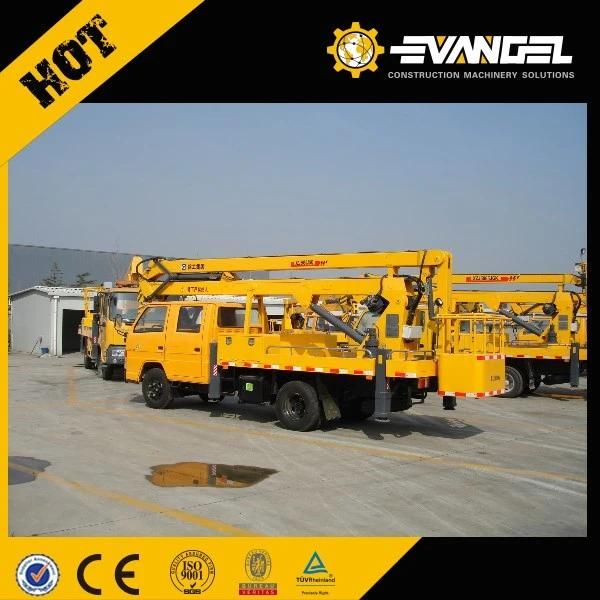

Main features of the truck mounted aerial work platform :
? Originally imported German Hawe electro-magnetic valve, proportional control valve and proportional amplifier,British proportional handles ,Italian bidirectional balance valves and French proximity sensors and relays.
? Electro-hydraulic proportional control, stepless speed regulation, and superior operational performance.XCM 14M Truck Mounted Hydraulic Lift Articulated Boom Aerial Working Platform
? There are two control boards. One is on the work platform, the other is on the chassis. Both of them can achieve remote control of engine.
? The internally mounted leveling system ensures that the work platform always keeps level.
? The four outriggers can be independently controlled, featuring good adaptability.
? There is elevation angle limit device for the upper arm, which can avoid danger.
? The interlock between the superstructure and undercarriage and the soft outrigger protection function ensure safe operation.
? When the horizontal outriggers are not extended, the slewing of the work arm is limited, while it can still be lifted or lowered, which ensures safety and improves efficiency.
? The emergency pump is available.
? The electronic timer can add up the work time for timely maintenance.
? The imported key parts has high reliability, good performance and long service life.
? The synchronic telescopic arm structure has high work efficiency and wide work range.
? The multifunction integrated handle is very convenient, smooth and comfortable to operate.
? There is a hoisting mechanism between the two arms so that it also can lift heavy things
