• Model NO.：XGC100
• HS Code：84264910
• Production Capacity：3000,Month

Basic Info.

Model NO. XGC100 HS Code 84264910 Production Capacity 3000/Month

Product Description

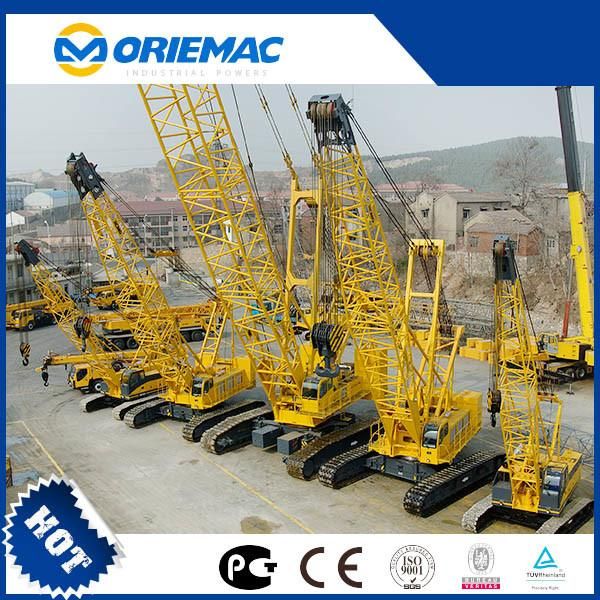

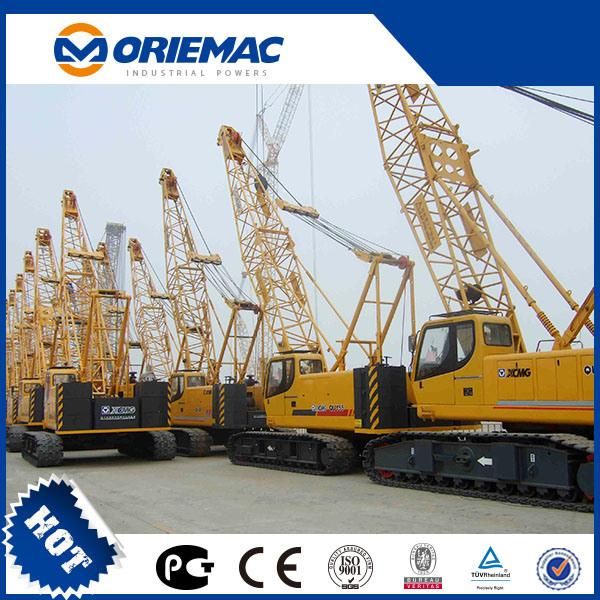

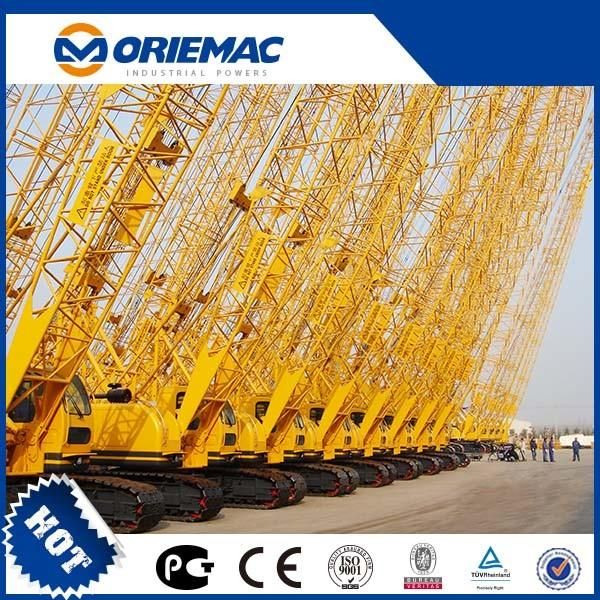

 Construction crane 100 tons mobile Crawler Crane Price

Contact:Allan


Main parameters:

Max. rated total lifting capacity:100T

Main boom length:19~73M

Fixed jib length:13~25M

Main configuration:

*Engine: SC8DK280Q3/QSC(206/183kw)

* Wire rope

* Hirschmann PAT

*Heater

Item	Unit	Parameter
Parameter item	-	XGC100
Performance parameters
Main boon rated liad	(t)	100
Fixed jib rated lifting weight	(t)	15.6
Luffing jib maximum rated lifting weight	(t)	-
Max Lifting Moment	(t.m)	575
Tower jib maximum lifting weight	(t)	-
Working condition of single arm end pulley maximum rated lifting weight	(t)	13
	(t)	-
Dimension parameter
Main boom length	(m)	19~73
The main luffing Angle	(°)	30~81
Fixed jib length	(m)	13~25
Tower jib length	(m)	-
Operating dimension(L*W*H)	(m)	10.5×3.0×3.35
Fixed jib installation Angle	(°)	15,30
Special deputy arm length	(m)	-
Speed parameter
The biggest single rope hoist speed	(m/min)	110/120
The boom luffer maximum speed of single rope	(m/min)	34/46
Deputy arm luffing mechanism's largest single rope speed	(m/min)	-
Engine
Model	-	SC8DK280Q3/QSC
power	(kW)	206/183
Emission	-	EuropeIII
mass parameter
Operating weight	(t)	104.5
Cargo status sheet maximum quality	(t)	32.5

Hi , sincerely with you have a nice day!


As authorized dealer, we specialized in exporting all kinds of constructions made by Chinese famous factory, like  CHANGLIN,FOTON,LIUGONG,CHENGGONG. Our productions include Truck and special Vehicle, Earthmoving Machinery, Road construction machinery, concrete machinery, drilling machinery, logistics machinery, Mining Machinery, Agricultural Machinery,Spare parts, ungrouped. Our company website is oriemac.en.made-in-china.com
