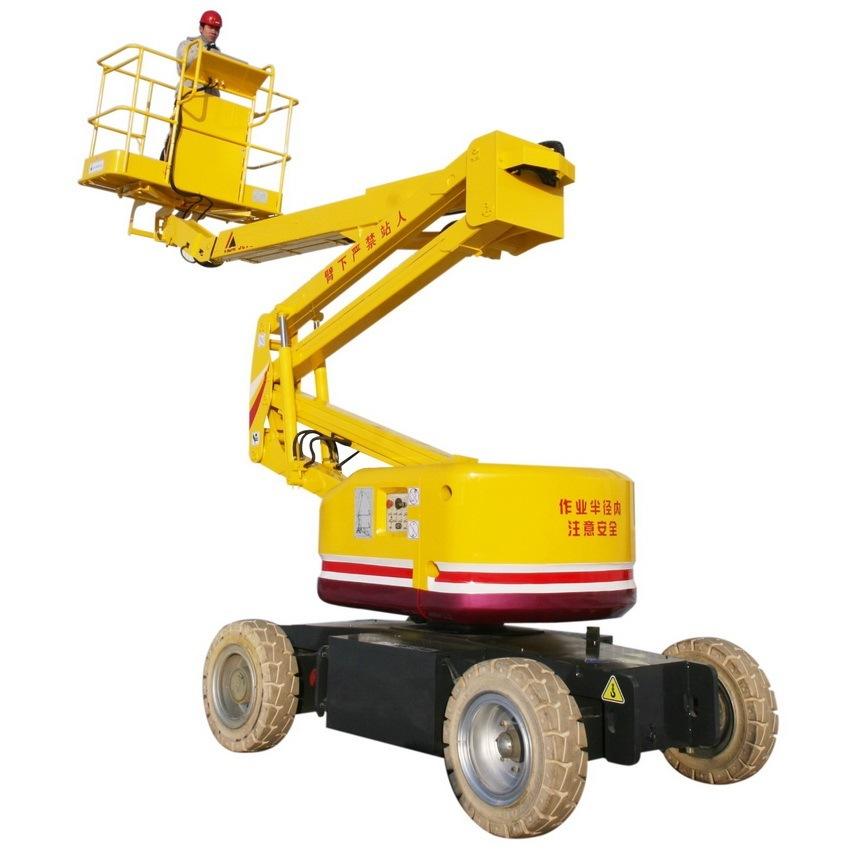

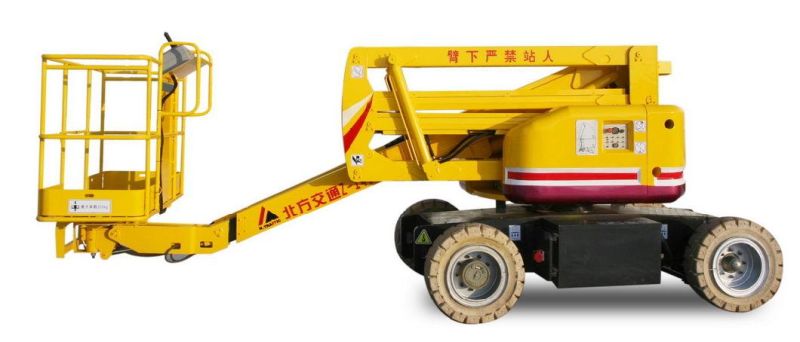

12m Battery Self-Propel Articulated Aerial Working Platform Zz12AC

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Articulated Lift
  • Carrying Capacity：Middle-Level
  • Moves：Self-propelled
  • Driven Type：AC
  • Running Mode：Moving

Base Info

  • Model NO.：ZZ12AC
  • Feature：Explosion-Proof, Insulating
  • Max.Working Height：14.5m
  • Max.Platform Floor Height：12.8m
  • Working Platform Height：1.1m
  • Min. Platform Floor Height：0.145m
  • The Whole Vehicle Retractiong Height：2m
  • Transport Package：Nude
  • Specification：ISO, CE
  • Trademark：N. traffic
  • Origin：China
  • Production Capacity：2000PCS,Month

Description

ModelZZ10ACZZ12ACZZ14ACZZ16M/ACZZ18M/AC
Main dimension parameter
Max.working height12.2m14.5m16m18.5m20.1m
Max.platform floor height10.5m12.8m14.3m16.8m18.4m
Max.working outreach6.8m7.1m7.1m13.2m13.2m
Working basket length 1.4m1.8m1.8m1.8m1.8m
Working basket width0.76m0.76m0.76m0.76m0.76m
Working platform height1.1m1.1m1.1m1.1m1.1m
The whole vehicle retracting length 5.7m5.46m5.46m9.3m9.3m
The whole vehicle retracting width1.7m1.87m1.87m2.41m2.41m
The whole vehicle retractiong height2m2m2m2.54m2.54m
Axle base1.9m2.04m2.04m2.74m2.74m
Min. platform floor height0.145m0.205m0.205m0.24m0.24m12m Battery Self-Propel Articulated Aerial Working Platform Zz12AC
