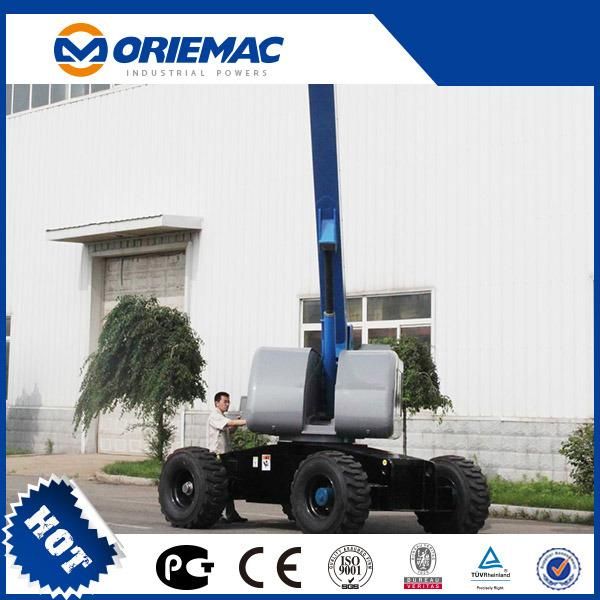

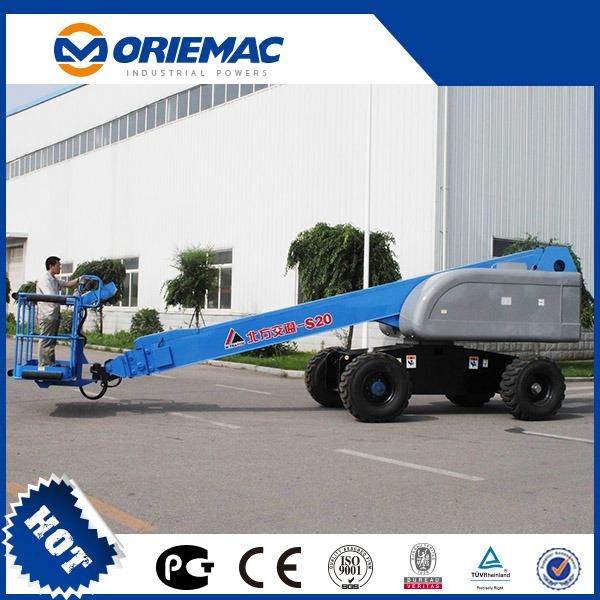

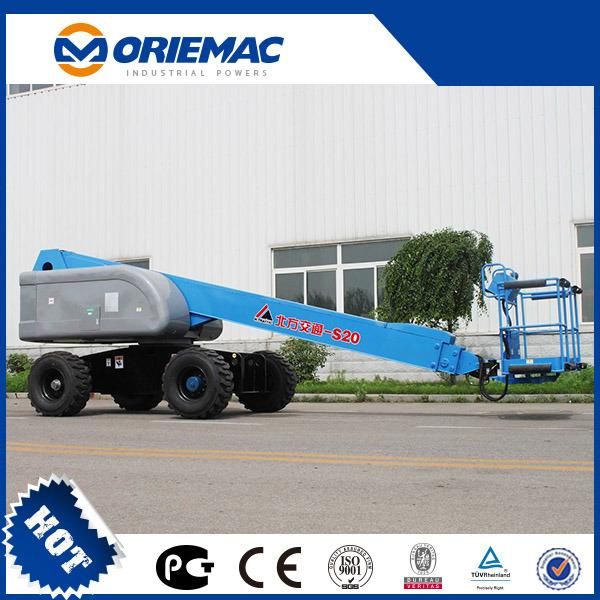

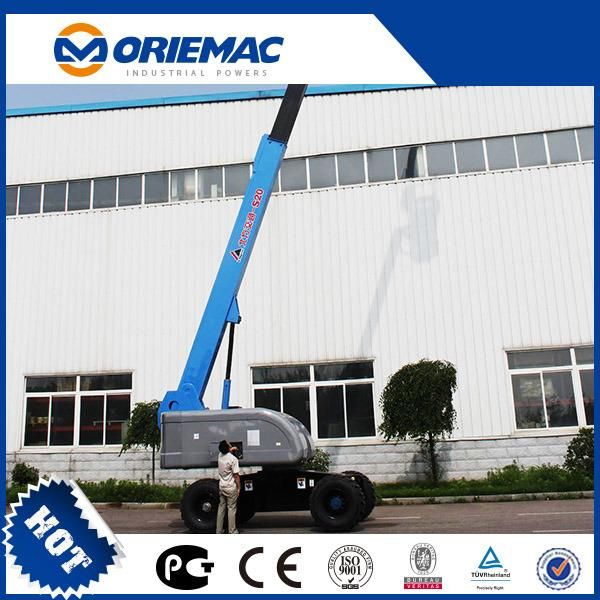

20m Telescopic Boom Mobile Aerial Platform Zs18

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Material：Telescopic Boom Lift Use High-Duty Steel
  • Platform Height：20.6m
  • Drive & Steer Model：2WD*2ws,4WD*2ws
  • Working Height：22.6m
  • Transport Package：Nude
  • Specification：ISO, CE

Base Info

  • Model NO.：ZS18
  • Trademark：N. traffic
  • Origin：China
  • Production Capacity：2000PCS,Month

Description

     Technical Parameters
The main size parameter
Max working height20m
Max platform floor height18.3m
Max. working outreach16.5m
Basket Size1.8m´0.76m´1.1m
The whole vehicle retracting size8.15m´2.44m´2.75m
Axle base2.7m
The main technical parameter
Load capacity of working basket270kg(340kg)
270kg(or 340kg)
Rotation of working platform160°
Turret rotation360°
360°Continuous
Turret drifting1.14m()
The max. actuating speed(retracting)4.8km/h()
The max. actuating speed(raising or extending)1.1km/h()
The max. actuating speed(fully extending)0.6km/h()4x2
Grade ability (retracting)4x240%()4x4
Grade ability (retracting)4x445%
Turning radiusInside3.2mOutside7m
Power parameter
Power source
Diesel engine
Weight parameter
Weight of whole vehicle10.6t20m Telescopic Boom Mobile Aerial Platform Zs18
