Jsdb-10 Double Speed Electric Lifting Winch Machine

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Electric Winch
  • Driven Type：AC
  • Speed：Slow
  • Carrying Capacity：Middle-Level
  • Tonnage：5T
  • Reel Number：1

Base Info

  • Model NO.：JSDB-10
  • Running Mode：Moving
  • Feature：Explosion-Proof
  • Certification：CE
  • Standard：National Standards
  • Model：Jsdb-10
  • Traction (Kn)：120
  • Fast：0.756-1.03m,S
  • Slow：0.115-0.157m,S
  • Reduction Ratio：175.62,26.89
  • Diameter mm：20
  • Wirerope Rope Capacity：120m
  • Wirerope Diameter：20mm
  • Motor Power：18.5kw
  • Brand：China Coal
  • Transport Package：Wooden Case or Carton Case
  • Trademark：China Coal
  • Origin：Jining City, Shandong Province, China
  • HS Code：8425399000
  • Production Capacity：1000 Sets Per Month

Description

Reference number/typeJSDB-10JSDB-13JSDB-19 traction KNlow speedouter100130190
average
 120165250internal140200320Fast≥12≥15≥25
rope speed
m/sSlow0.115-0.1570.103-0.1520.118-0.204
Fast0.756-1.030.833-1.230.86-1.5reduction ratio
Slow
 175.62209.66247.44
Fast26.8925.8234.13wirerope diameter mm202430
rope capacity
m120180400motortypeYBK2-200L1-6YBK2-200L2-6YBK2-280S-6power KW18.52245speed r.pm970970980Drum size
mmdiameter380400540width408531560
overall dimension
mmlength263031583845width7701215(970)1315high85510301255Total Weight  kg200029606500

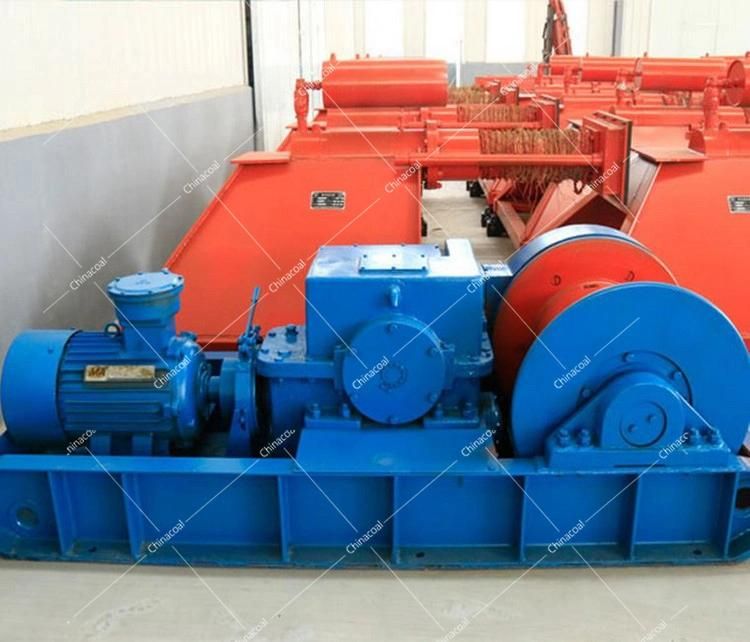

Photos Of Jsdb-10 Double Speed Electric Winch
Jsdb-10 Double Speed Electric Lifting Winch MachineJsdb-10 Double Speed Electric Lifting Winch Machine


Jsdb-10 Double Speed Electric Lifting Winch Machine
