Three Electric Scissor Lift Table (Cargo Platform MOW0301 MOW0302)

Tengzhou Hoton Machinery Co., Ltd.
  • Application：Warehouse Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Stationary
  • Driven Type：electric
  • Running Mode：Moving

Base Info

  • Model NO.：MOW0301 MOW0302
  • Feature：cargo lifting
  • Certification：GS, RoHS, ISO 9001
  • Capacity：1000
  • table size：1700X1000
  • raising height：3000mm
  • base size：1600X1000mm
  • Transport Package：Plywood Case
  • Specification：450kgs
  • Trademark：HOTON
  • Origin：Shandong, China
  • HS Code：87091190
  • Production Capacity：50 PCS,Month

Description

Basic Info.

Model NO. MOW0301 MOW0302 Feature cargo lifting Certification GS, RoHS, ISO 9001 Capacity 1000 table size 1700X1000 raising height 3000mm base size 1600X1000mm Transport Package Plywood Case Specification 450kgs Trademark HOTON Origin Shandong, China HS Code 87091190 Production Capacity 50 PCS/Month

Product Description

FEATURES:
Suitable for lifting heavy loads to higher heights
Maximum lift height 3mm
Capacity ranges from 1000 kg to 20000 kg
1. This model of lift is designed and produced based on customers' special requirements: load capacity, lifting height, platform size and power supply.
2. They have two mainly types according to different sites. One is to be sited on a special place to loading cargoes and then lifting to a certain height and move the cargoes
3. They other type is sited into a lift pit. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also called freight elevator.
MODELUNITMOW0301MOW0302
capacity(Kg)10002000
min.height(mm)470560
Lifting height(mm)30003000
Size of platformL×W(mm)1700×10001700×1000
Base size(mm)1600×10001606×1010
Lifting time(s)35-4550-60
motor 380V/50Hz,AC2.2kw380V/50Hz,AC2.2kw
Net weight(Kg)450750

 Three Electric Scissor Lift Table (Cargo Platform MOW0301 MOW0302)Three Electric Scissor Lift Table (Cargo Platform MOW0301 MOW0302)
Contact Us:
Miss Wynn
Sales Manager

TENGZHOU HOTON MACHINERY CO.,LTD
Tel:0086 632 5633796
MP:0086 16678336698
hotonmachinery.en.made-in-china.com
Company Profile:

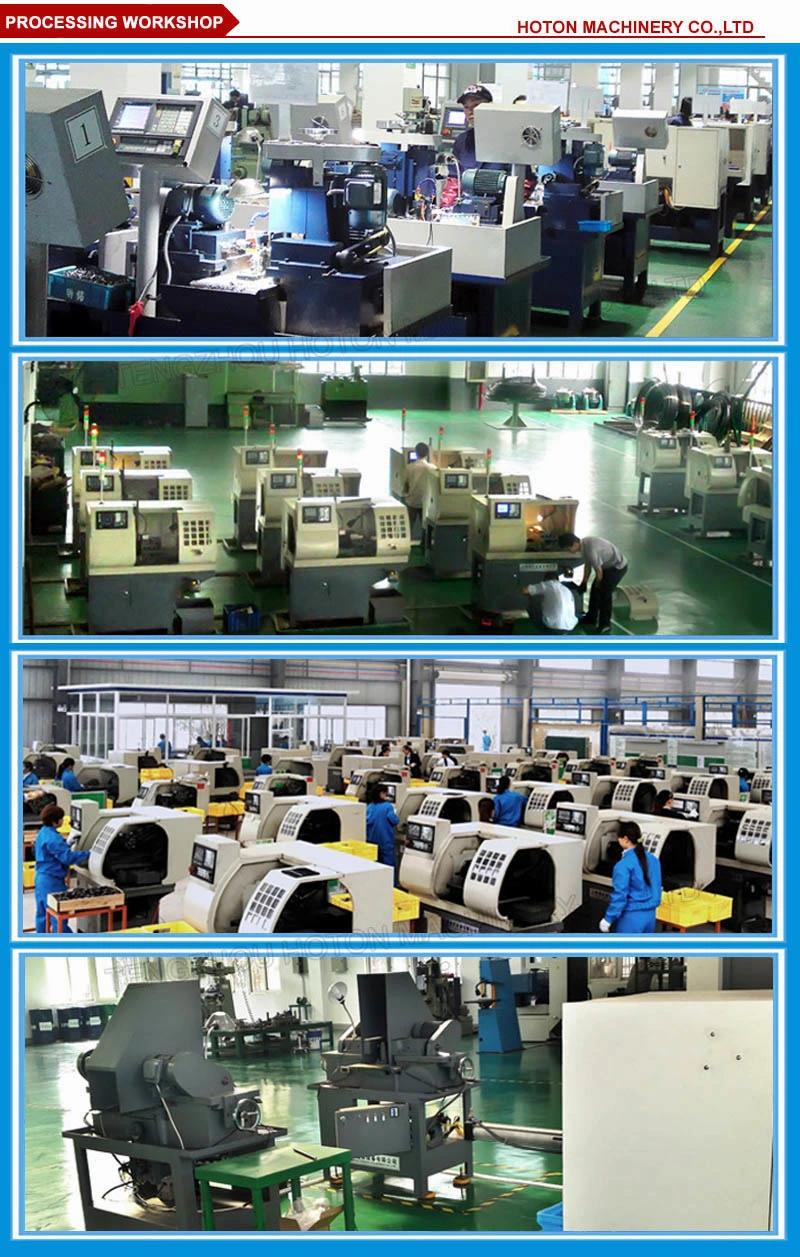

    Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008.
