• Model NO.：CD1
• Running Mode：Moving
• Feature：Antiseptic, Explosion-Proof
• Certification：CE, TUV SGS, ISO9001: 2000, Ce
• Standard：National Standards
• Phase：3
• Standard Lifting：8 M,Min
• Frequency Hz：50
• Capacity：10 Ton
• Lifting Height：88,0.8 M,Min
• Delivery Time：10 Days
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Single Girder
• Power Source：Electric
• Transport Package：Packaged by High Quality Plywood Crate
• Specification：CE, ISO, TUV
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425110000
• Production Capacity：10000,Month

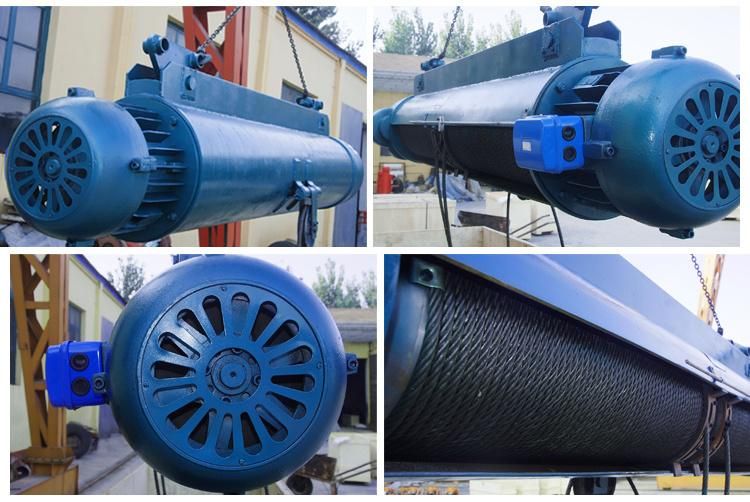

 Product parameters

1.Reducer: adopt third-class dead axel helical gear transmission structure gear

and geaaxel are made of heat treated alloy steel

2.Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.3.Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.4.Protection grade: IP54, work grade: M35.Over load limit is available. Hook is widen and thicken 6.Power-Off protection, Emergency stop system.
20/30
Wire Rope type
6*19-3.6
6*37-4.8-180
6*37-7.4-180
6*37-11-155
6*37-13-170
6*37-15-200
6*37-15-200
I beam track type
16-22b
16-28b
16-28b
20a-32c
20a-32c
25a-63c
28a-63c
Loop track minimum Radius  m
0.8
1.5
1.5-4
2-4
2-4
2.5-5
3.5-9
Voltage V
380
380
380
380
380
380
380
Frequency HZ
50
50
50
50
50
50
50
Phase
3
3
3
3
3
3
3
