• Model NO.：VC-B
• Certification：CE, ISO9001:2000, TUV
• Condition：New
• Color：Depends
• Name：Vc_a Manual Hoist
• Easy Lift：Yes
• Gear：National Standard
• Capacity：0.5t-50t
• Hook：Wide Thick Forged Forged
• Body：Robust
• Warranty：2 Year
• Zinc Hand Chain：Available
• G80 Chain：Yes
• Transport Package：Carton, Wooden Case, Pallet, and So on
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai
• HS Code：8425190000
• Production Capacity：60000 PCS,Year

Basic Info.

Model NO. VC-B Certification CE, ISO9001:2000, TUV Condition New Color Depends Name Vc_a Manual Hoist Easy Lift Yes Gear National Standard Capacity 0.5t-50t Hook Wide Thick Forged Forged Body Robust Warranty 2 Year Zinc Hand Chain Available G80 Chain Yes Transport Package Carton, Wooden Case, Pallet, and So on Specification CE, ISO Trademark HUGO Origin Shanghai HS Code 8425190000 Production Capacity 60000 PCS/Year

Product Description

2 Ton Chain Pulley Block Mechanism Factory





♣ . Introduction of Manual Able , Hand Pulling Chain Block
1.Capacity from 0.5t to 50t
2.Automatic double-pawl braking system
3.Gear: by adopting Japanese technology,they are innovated symmetrical arrayed high -speed synchronous gears, and are made from international standard gear steel.Compared with common gears ,they are more wearable and steadier, and more laborsaving.
4.Chain: adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling multi-angle operation.
5.Hook: made of high-class alloy steel,it has high strength and high security; by using new design,weight will never escape.
6.Components:main components are all made of high-class alloy steel,with high precision and security.
7. Framework: slight design and more beautiful; with less weight and smaller work area.
8. Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
9.Encloser: made of high-classed steel,more firmly and dextero
♣2.Parameters of Manual Able , Hand Pulling Chain Block

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9

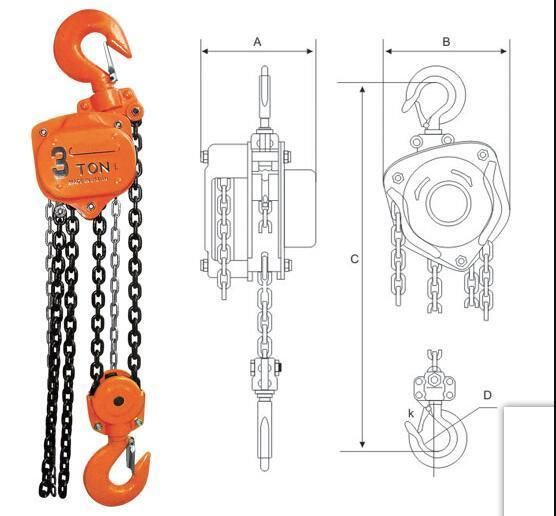

Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22x14 x15	25x19 x16	33x24 x16	33x24 x19	34.5x24 x16	40x30 x19	48x42 x18.5	78x68 x20	85x67 x30	110x100
