• Certification：CE, ISO9001:2000
• Condition：New
• Color：Green
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Limited Switch：Include
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, Ohsas18001: 1999：Pass
• Electric Hoist Double Limit：Include
• Transport Package：Packed by Plywood Crate and Plastic Woven Cloth.
• Specification：China National standard
• Trademark：KY(KuangYuan)
• Origin：Xinxiang, Henan Province
• HS Code：84261930
• Production Capacity：18, 000 Sets,Year

Capacity

0.25T-50T

Powder supply

3P 220-690V,50/60HZ

Control power

24V/36V/48V

Low noise:

81db

Speed type:

Single speed or Duel speed

Chain material:

G80/G100

Insulation grade:

F class

Standard lifting height:

3m

Working temperature:

-40ºC - +40ºC

Accessories:

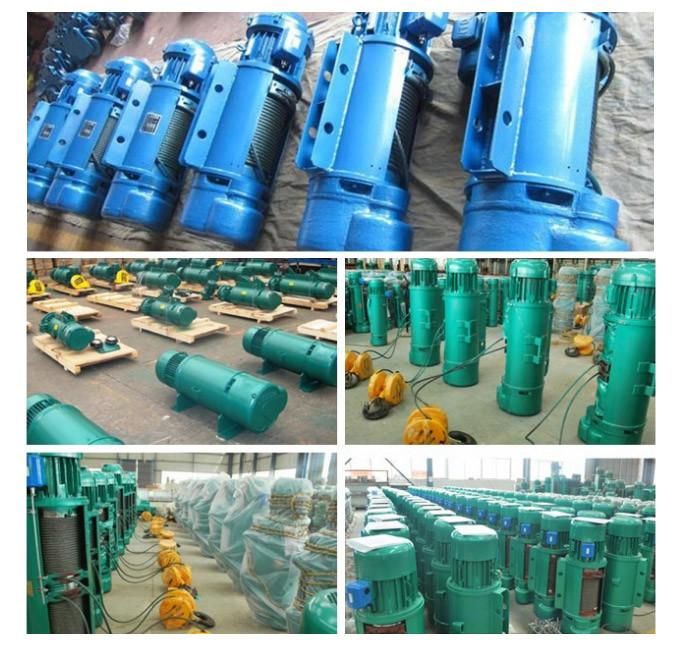

Wire rope electric hoist is assembled by several parts: hoisting gear box, hoisting motor with brake, rope drum, electric control panel and traveling trolley. All these units are separately accessible and promptly disassembled cost and stopped.
Motor: hoist motor is a taper type rotor motor with braking, it is made by Nanjing special motor factory, it is of the best quality motors, it has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Gear box: hoist gear box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.
Wire rope: hoisting ropes comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

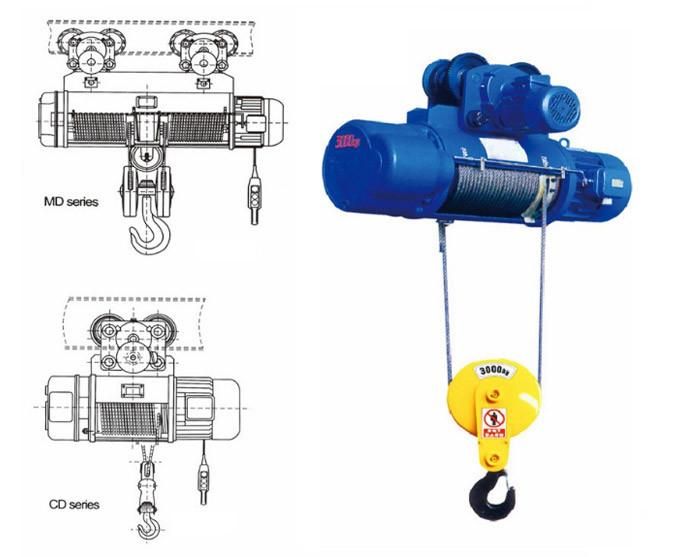

Rope drum: grooved hoist drum, seamless pipe of adequate length to be wounded in one layer and to provide proper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on ball bearings for ensuring smooth running.Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage)

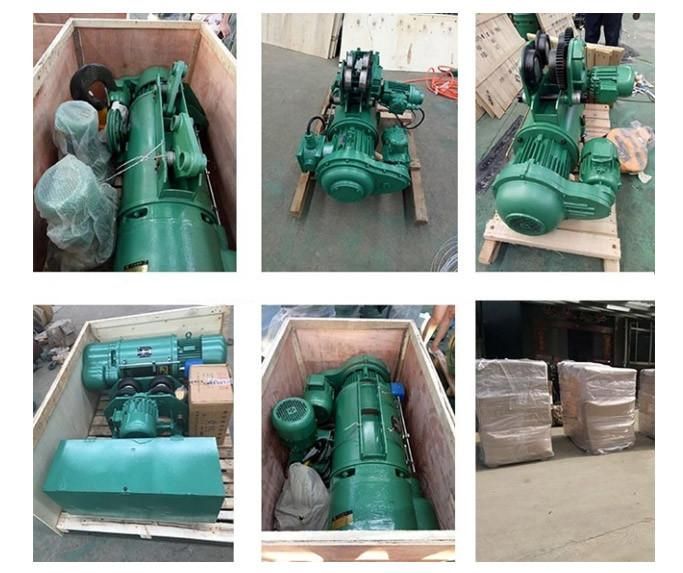

Packaging:
