• Model NO.：electric hoist
• Certification：CE, ISO9001:2000, GOST BV
• Condition：New
• Color：Orange
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, Ohsas18001: 1999：Pass
• Industrial Voltage：According to Your Demand
• Electric Hoist Double Limit：Include
• Transport Package：Packed by Plywood Crate All by Export Standard
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84251100
• Production Capacity：88, 000 Sets,Year

Overview

Product Description

Wire rope electric hoists are widely used and very popular among user because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance.

The hoists exist in form of stationary Style and crab-style. The former is divided into four styles that is, A1, A2, A3, and A4 according to the position (up, down, left, and right) of the fixed trestle. It can be installed directly on the frame. The latter with movable function can be installed on the track. CD1 model lifts with single speed, and MD1 model not only with usual speed but also with low speed.

On such a basis, single speed and double speed hoist and WH164 20t, 32t are developed by our technicians. They share the same structure principles and installation ways with the original CD1 and MD1. The following contents all take CD1 and MD1for example.

Our running scope mainly lies in series of electric hoist with 0.25~32t load and 3m~30m height. In addition, your special needs shall be met and non-standard hoists shall be manufactured.

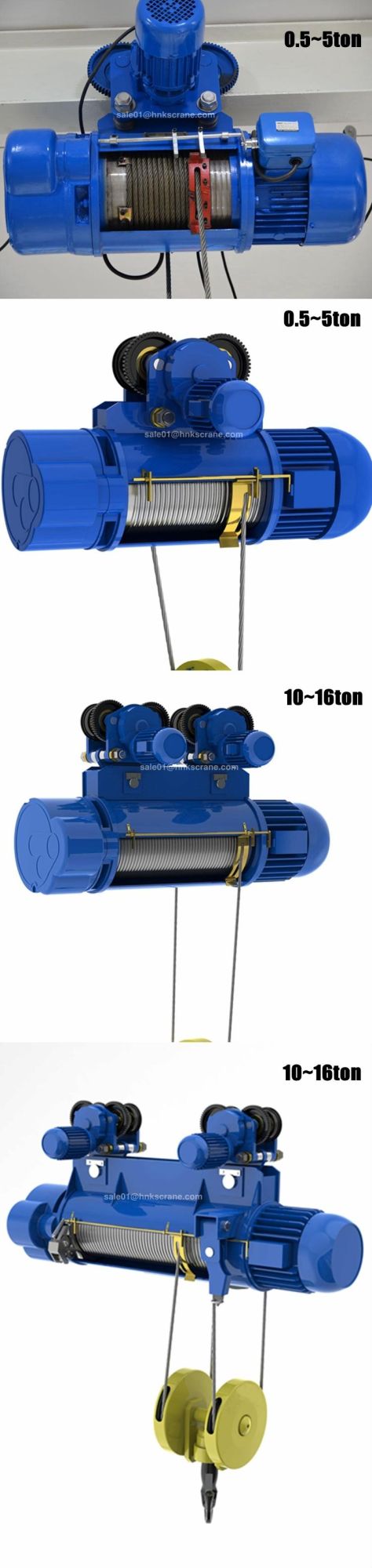

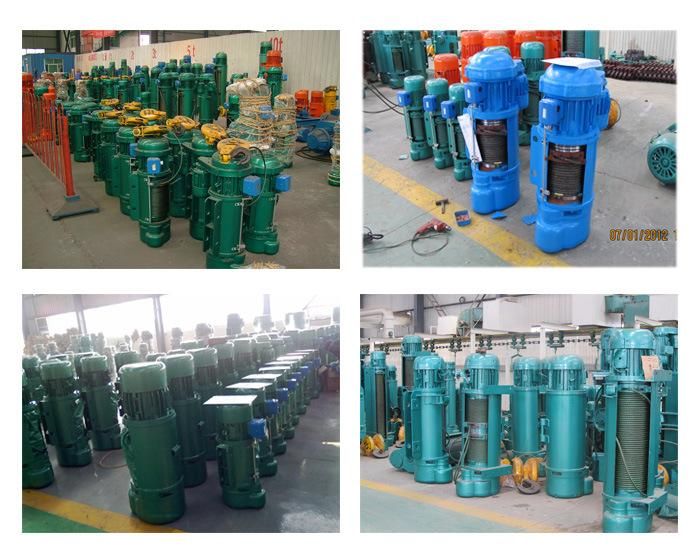

Detailed Photos

Product Parameters

TypeElectric wire rope hoistCap.t0.250.51235101620Hook Pathm3  /6 / 9 / 12 / 18 / 24 / 30SpeedHoistingm/min873.54Travelling20/30Wire
RopeDia.mm3.64.87.711131517.519.5Construction 6*196*37+16*37+16*37+16*37+16*37+16*37+16*37+16*37+1Track16-22b16-28b16-28b20a-32c20a-32c25a-45c32b-63c45b-63c56b-63cMotorHoistingType0.40.81.534.57.5131318.5Rotation
speedr/min1380CurrentA1.252.44.37.61118303041.7TravellingTypeZDY₁10-4ZDY₁10-4ZDY₁11-4ZDY₁12-4ZDY₁12-4ZDY₁21-4ZDY₁21-4ZDY₁21-4ZDY₁21-4Powerkw0.060.20.40.80.8*2Rotation
speedr/min14001380CurrentA0.30.721.252.4Connecting Times120Working systemintermediate FC=25%Power source3P AC 380V 50Hz or according to your requirements

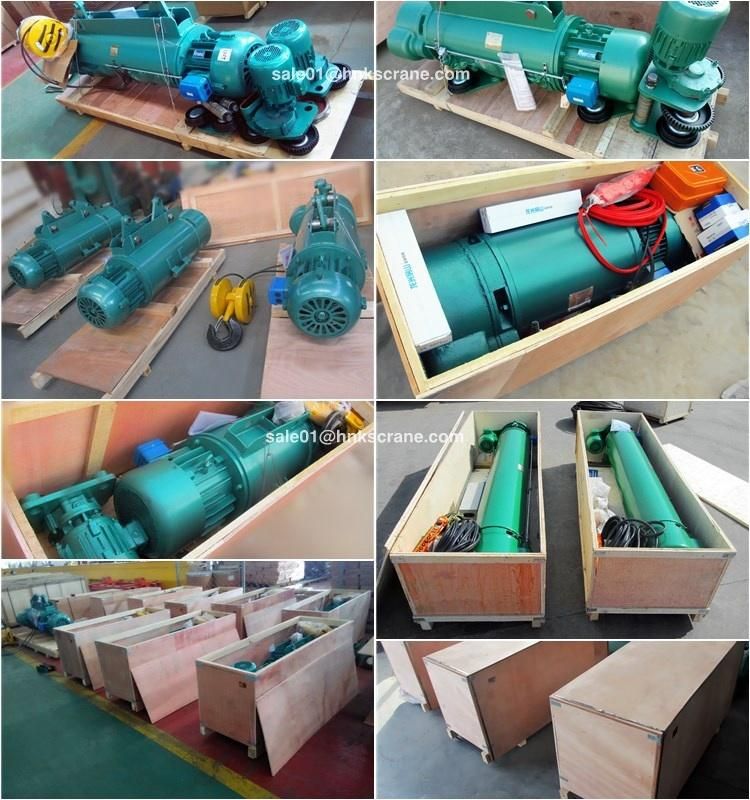

Packaging & Shipping



Company Profile

Our Advantages

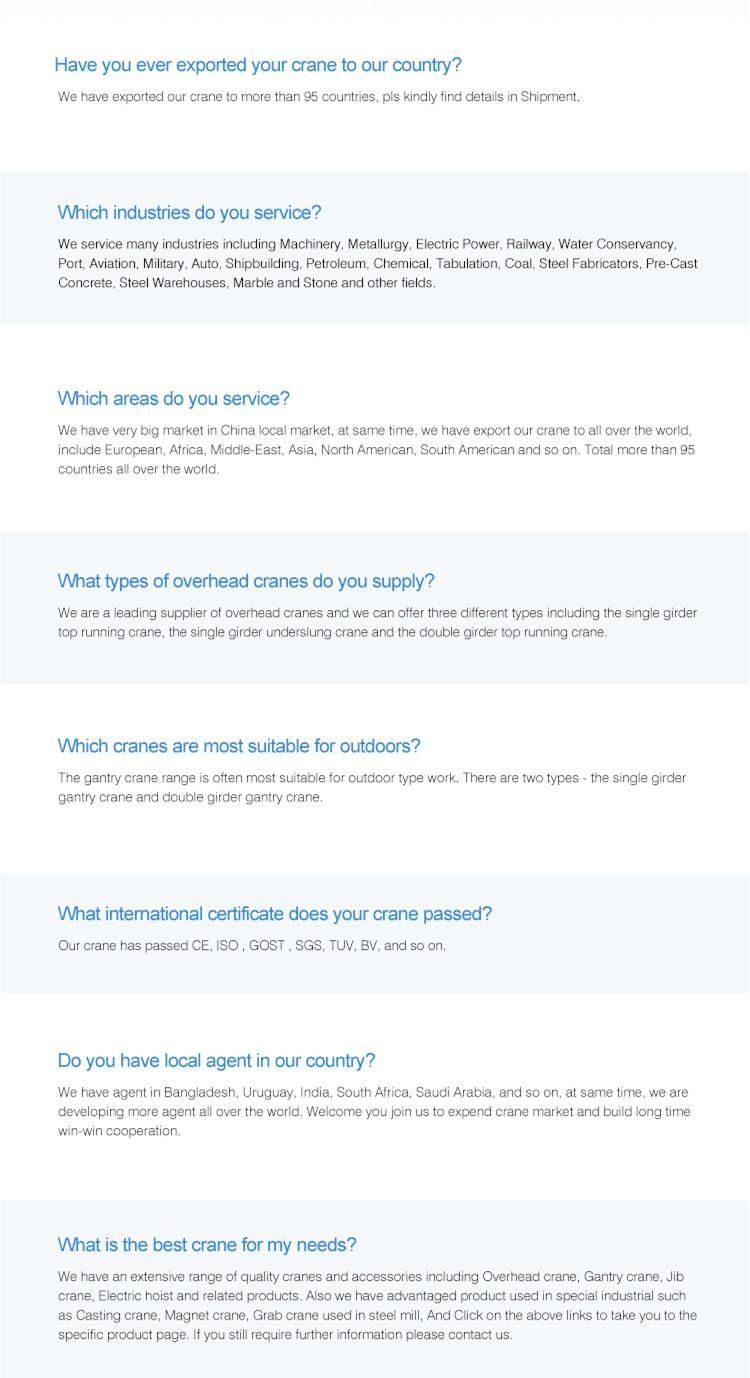

FAQ
