• Model NO.：JD-0.75
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE
• Standard：National Standards
• Model：Jd-0.75
• Traction Force Kn：7.5
• Average Speed M/S：0.71
• Dia of Wire Rope mm：9.3
• Drum Size mm：200X300
• Rope Capacity M：400
• Total Reduction Ratio：34.81
• Motor Type：Yb132s-4-B5
• Motor Power Kw：5.5
• Place of Origin：China
• Transport Package：Wooden Case or Carton Case
• Specification：1085*730*697
• Trademark：China Coal
• Origin：Shandong, China
• HS Code：8425391000
• Production Capacity：1000 Sets Per Month

ModelJD-0.5JD-0.75JD-1JD-1.6JD-4Traction Force KN7.57.51017.630Average Speed m/s0.710.710.781.41.44Dia of Wire Rope mm9.39.312.51520Drum Size mm200×300200×300224×304310×400620×580Rope Capacity m250250400440480Total Reduction Ratio34.8134.814132.531.8Motor TypeYB132S-4-B5YBJ-11.4YBJ45-4YBJ40-4YB2-132S-4Motor Power KW5.511.425405.5Motor Rev Rev/min14401460147014701440Motor Voltage V380/660380/660V380/660V380/660V380/660VDi mention mm
L×W×H1085×730
×6971085×730
×6971073×766
×7271448×1255
×12601900×2350

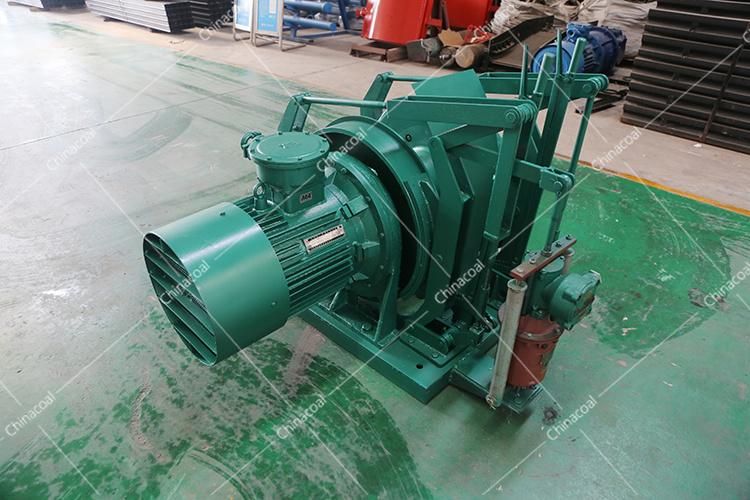

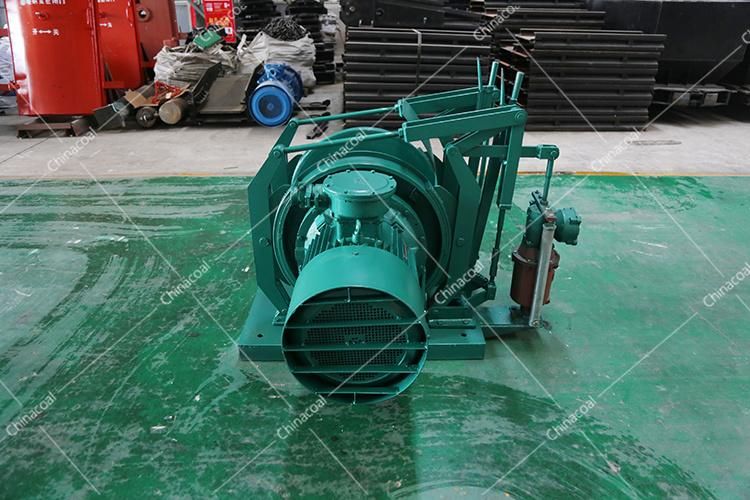

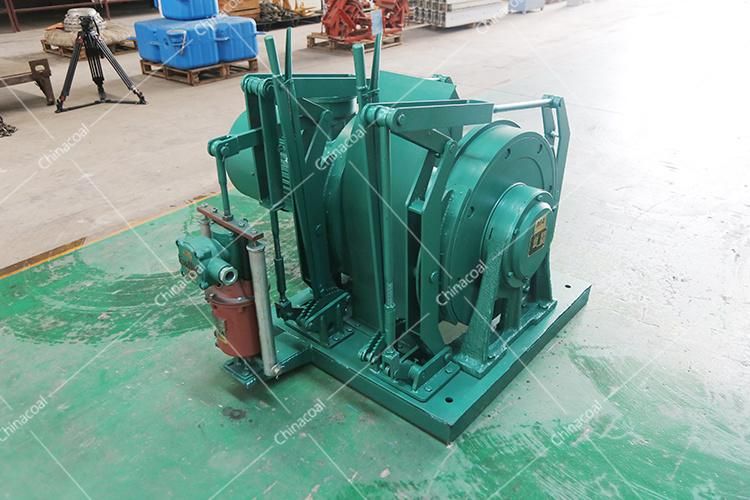

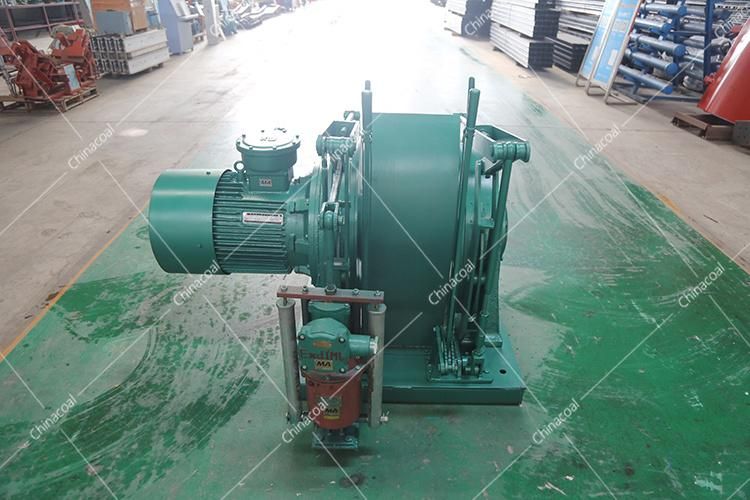

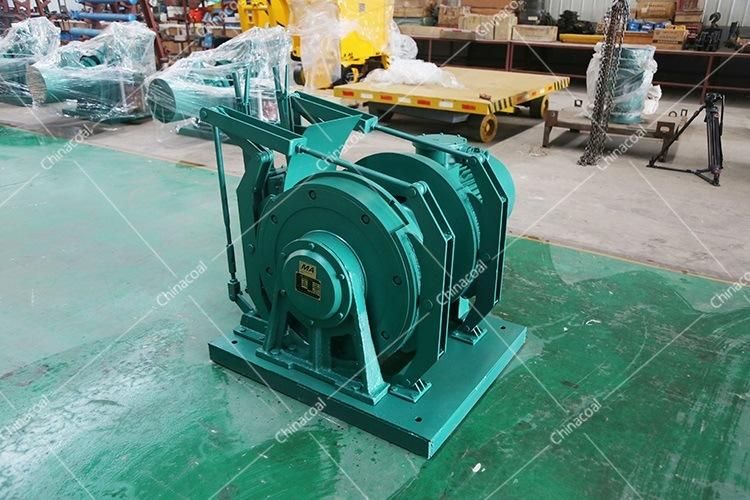

×1370Weight KG40040057813702800  Photos Of JD-0.75 Explosion-Proof Dispatching Winch



Shandong China Coal Industrial & Mining Supplies Group Co.,Ltd (hereinafter referred to as China Coal) is a group company, which is a collection of e-commerce, machinery manufacturing, software, research and development, modern logistics of large diversified industrial group. The group has 100 million yuan registered capital , with more than 1100 employees.
China Coal is a professional manufacturing base of mines support equipment, transport equipment, lifting equipment, spray equipment, drilling equipment, ventilation equipment, lifting equipment and other products, as well as research and development new product and mine construction products with advanced high technology.
