1 Ton 2 Ton 3 Ton Manual Chain Pulley Block

Shanghai Yiying Crane Machinery Co., Ltd.
  • Application：Gantry Crane
  • Type：Chain Hoist
  • Sling Type：Chain
  • Lift Speed：2~8m,min
  • Maximum Lifting Height：>20m
  • Chain Falls：2

Base Info

  • Model NO.：VD
  • Certification：CE, ISO9001:2000
  • Condition：New
  • Color：Yellow
  • Capacity：0.5-50 Ton
  • Max Lifting Height：3 Meter
  • Chain：80 Grade
  • Hook：Forged
  • Brake：Double Brake
  • Cab Location：Adjustable
  • Power：Hand
  • Load Capacity：1t - 5t
  • Fuel：No
  • Load Center：500mm
  • Transport Package：Colour Paper Case or Plywood
  • Specification：CE, ISO
  • Trademark：HUGO
  • Origin：Shanghai, China
  • HS Code：8425190000
  • Production Capacity：1000000PCS,Year

Description

                                                                   The Paramters of VC_B Manual Hoist  ModelVC-B 0.5VC-B 1VC-B 1.5VC-B 2VC-B  5 3VC-B 5VC-B 10VC-B 20VC-B 30VC-B 50Capacity(t)0.511.523510203050Standard lift(m)2.52.52.53333333Running test load(t)0.751.52.2534.57.515304575No.of falls of load chain111122481224Load chain diameter(mm)56.37.187.199999Dimension(mm) A129149.5157.5161.5151.5163207215350406B136145164.5187164.5211398650680962C27031739941446563679889013802578Net weight(kg)8.41216.2202441791932201092Packing(L*W*H)(cm)22*14*1525*19*1633*24*1633*24*1934.5*24*1640*30*1948*42*18.578*68*2085*67*30110*100*130

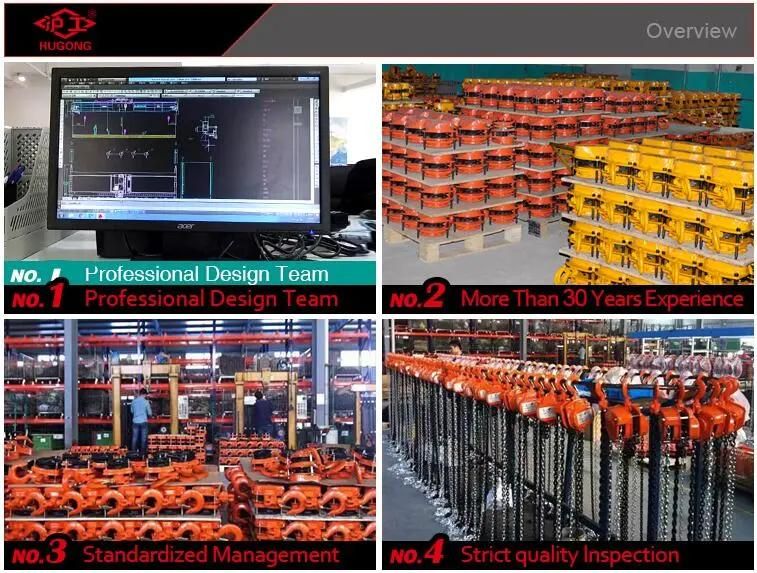

Factory view for the VD manual chain block:

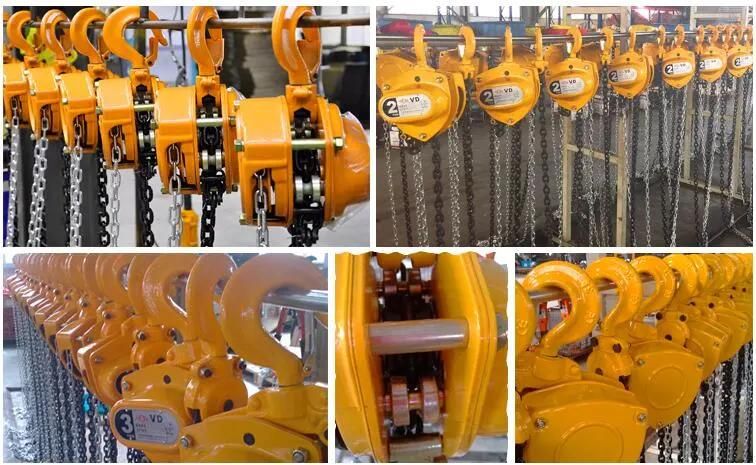

1 Ton 2 Ton 3 Ton Manual Chain Pulley Block
1 Ton 2 Ton 3 Ton Manual Chain Pulley Block


Package for the manual chain block:
1 Ton 2 Ton 3 Ton Manual Chain Pulley Block

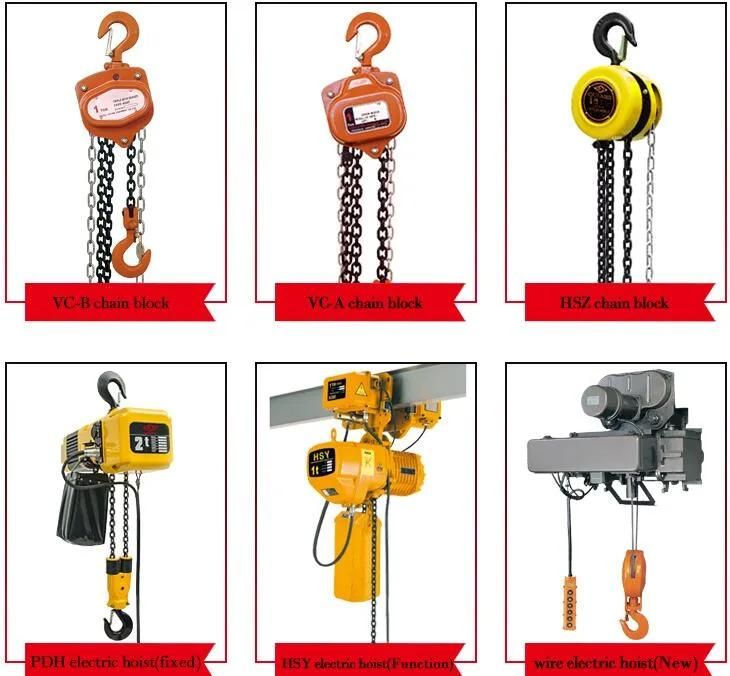

Related products for the VD chain block:
