• Model NO.：YH
• Chain Falls：Wire Rope
• Certification：CE, ISO9001:2000, GOST BV
• Condition：New
• Color：by Customization
• Weight Overload Protection Device：Include
• Voltage Lower Protection Function：Include
• GB/T 24001-2004 Idt ISO14001: 2004：Pass
• Sandblast：Could Supply
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• Painting Color：According to Your Demand
• Current Overload Protection System：Include
• GB/T 28001-2001, Ohsas18001: 1999：Pass
• Industrial Voltage：According to Your Demand
• Electric Hoist Double Limit：Include
• Transport Package：Packed by Plywood Crate All by Export Standard
• Specification：China National standard
• Trademark：KUANGYUAN
• Origin：Xinxiang, Henan Province
• HS Code：84251100
• Production Capacity：28, 000 Sets,Year

Overview

Product Description

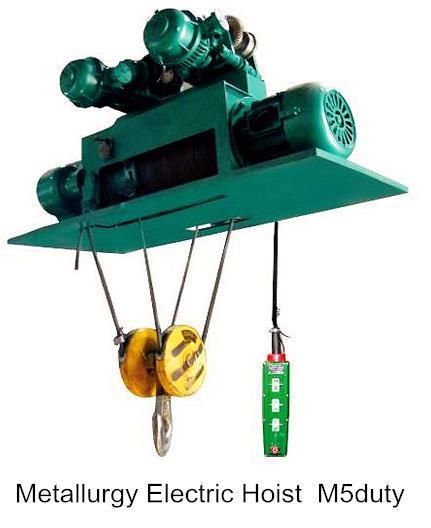

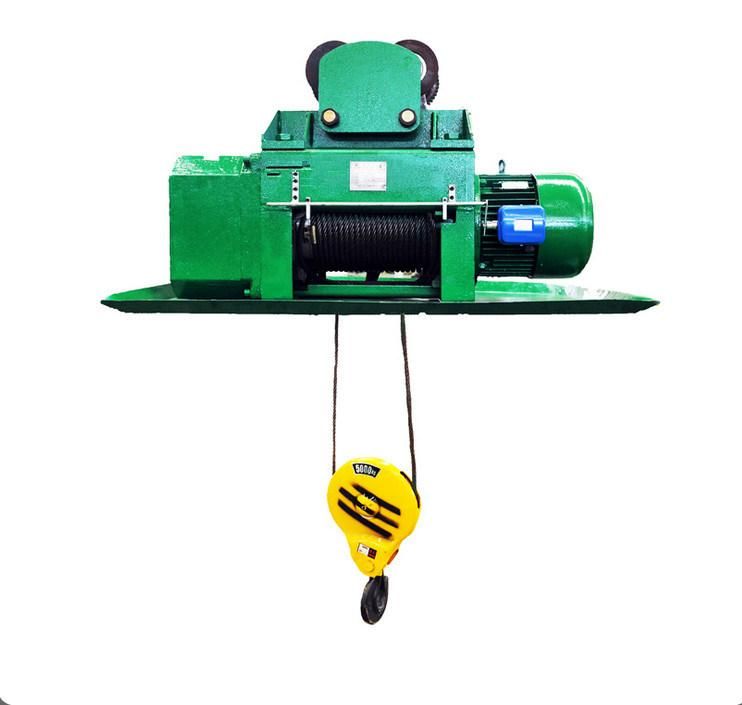

YH series electric hosit for metallurgy is a metallurgy crane equipment mainly used for lifting molten metal. Its lifting capacity is less than or equal or equal to 10T and lifting height is less than or equal to 20m. The working environment temperature is -10~60 centigrade and relative humidity is less than 50% under the condition of 40 centigrade temperature.
Electric hoist has many protection functions such as double braking/double spacing/heat insulation plate and so on.

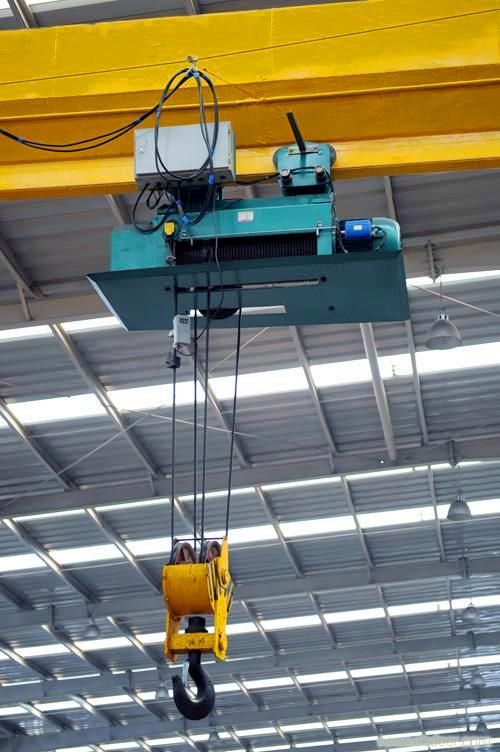

Metallurgy electric hoist is a perfect light-duty metallurgy hoisting equipment that can be used together with LDY type metallurgy single girder crane and can be installed under workshop fixed suspending rail to use individually.
Design and manufacture of metallurgy electric hoist meet the requirements of AQSIQ Doc#(2007)375. Other situation that lifts fusion non-metallic material or hot solid metal also can refer!

1)In which CD1, MD1 electric hoist rope on the basis of the design used exclusively for hoisting the molten metal or other high temperature solid-state items of metallurgy electric hoist rope.
2)Fixed aerial track on independent use, is small and medium-sized metallurgy workplaces safe and reliable light small special lifting equipment.
3)The electric hoist brake and set up double not only set up a double ShengXian a and falling spacing device, and at the same time set over current protection, pressure loss protection, sequence protection, the weight limit device, speeding down overloaded power DuoZhong protection safety protection devices. To enhance the security of electric hoist performance.
4)The insulation of the motor for H level by level, this 6 x 371 WR wire rope meet the conditions of production needs. Metallurgical.

Detailed Photos

Product Parameters



TypeSingle speed electric wire rope hoistCap.t0.250.51235101620Hook Pathm3/6/9/12/18/24/30SpeedHoistingm/min873.54Travelling20/30Wire
RopeDia.mm3.64.87.711131517.519.5Construction 6*196*37+16*37+16*37+16*37+16*37+16*37+16*37+16*37+1Track16-22b16-28b16-28b20a-32c20a-32c25a-45c32b-63c45b-63c56b-63cMotorHoistingType0.40.81.534.57.5131318.5Rotation
speedr/min1380CurrentA1.252.44.37.61118303041.7TravellingTypeZDY₁10-4ZDY₁10-4ZDY₁11-4ZDY₁12-4ZDY₁12-4ZDY₁21-4ZDY₁21-4ZDY₁21-4ZDY₁21-4Powerkw0.060.20.40.80.8*2Rotation
speedr/min14001380CurrentA0.30.721.252.4Connecting Times120Working systemintermediate FC=25%Power source3P AC 380V 50Hz or according to your requirements
