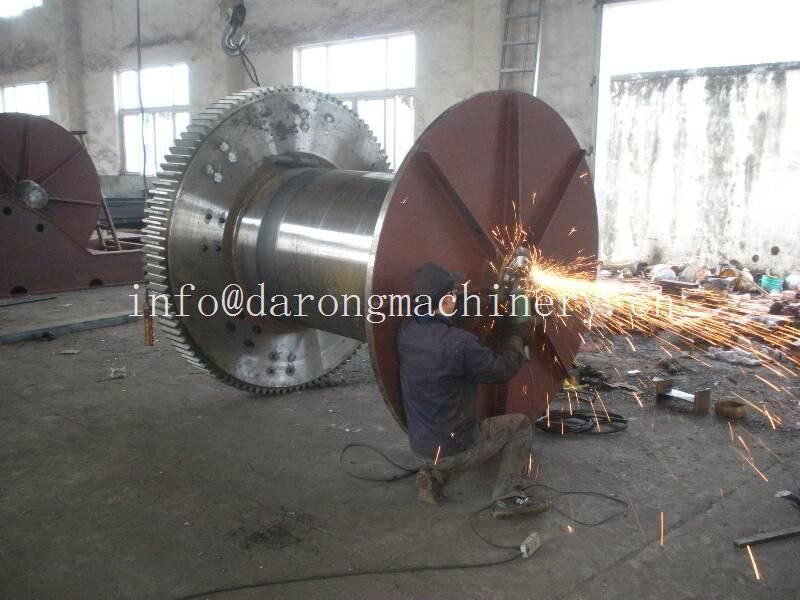

Smooth Surface Steel Drum Design Custom Made Drum

Pingyang Construction Hoisting Machinery Co.

Material：Steel Plate , Seamless Steel Tube
Diameter：as Customer Drawing
Length：as Customer Drawing
Rope Groove：as Diameter of Wire Rope
Transport Package：Woonden Case
Specification：1ton to 50ton

Base Info

Model NO.：DW
Trademark：CH
Origin：Wenzhou, China
HS Code：8425319000
Production Capacity：100units,Month

Description

ModelJM2JM3JM5JM8JM10Line pull capacity (kg)200030005000800010000average speed (m/min)121010109Wire rope(mm):12.515.521.52630Reduction boxTypeJZQ350JZQ350JZQ400JZQ500JZQ650Transmission ratio23.3431.523.3431.540.17Drum (mm)Diameter/mm273325406500550Length4805206459001000Capacity(m)150180250300450motorTypeYZ160M2-6YZ160M2-6YZ160L-6YZR225M-8YZR250M1-8Power(kW)7.57.5112230Rotate speed(r/min)948948953720720Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-300Equipment Dimension (mm)1060x1500x7501600x1100x8201400x1910x9502050x1640x10002470x2280x1180Weight(kg)630680140030004000 Smooth Surface Steel Drum Design Custom Made Drum

Smooth Surface Steel Drum Design Custom Made Drum
