Mobile Scissors Lift with CE Approved Sjy0.3-6

Wuhan Kudat Industry & Trade Co., Ltd.
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level

Base Info

  • Model NO.：SJY0.3-6
  • Driven Type：AC
  • Running Mode：Moving
  • Feature：Scissor Lift
  • Structure：Scissor Lift
  • Installation：Scissor Lift
  • Type of Work：Special Weight Level
  • Transport Package：Film
  • Specification：CE
  • Trademark：KUDAT
  • Origin：CHINA
  • Production Capacity：500PCS,Month
  • Package size per unit product：180.00cm * 89.00cm * 180.00cm
  • Gross weight per unit product：1200.000kg

Description

Basic Info.

Model NO. SJY0.3-6 Driven Type AC Running Mode Moving Feature Scissor Lift Structure Scissor Lift Installation Scissor Lift Type of Work Special Weight Level Transport Package Film Specification CE Trademark KUDAT Origin CHINA Production Capacity 500PCS/Month

Packaging & Delivery

Package size per unit product 180.00cm * 89.00cm * 180.00cm Gross weight per unit product 1200.000kg

Product Description

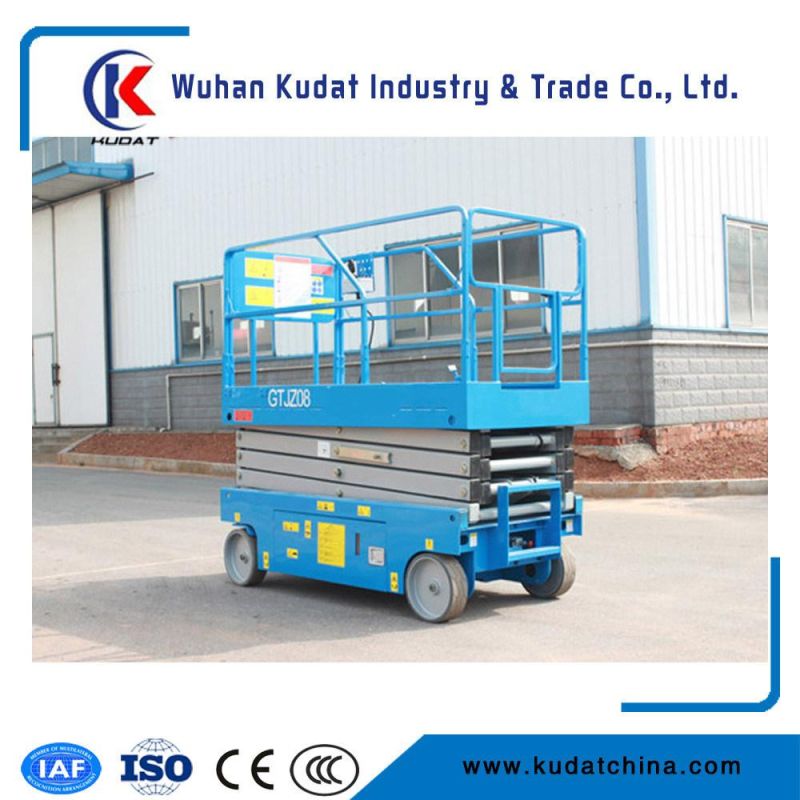

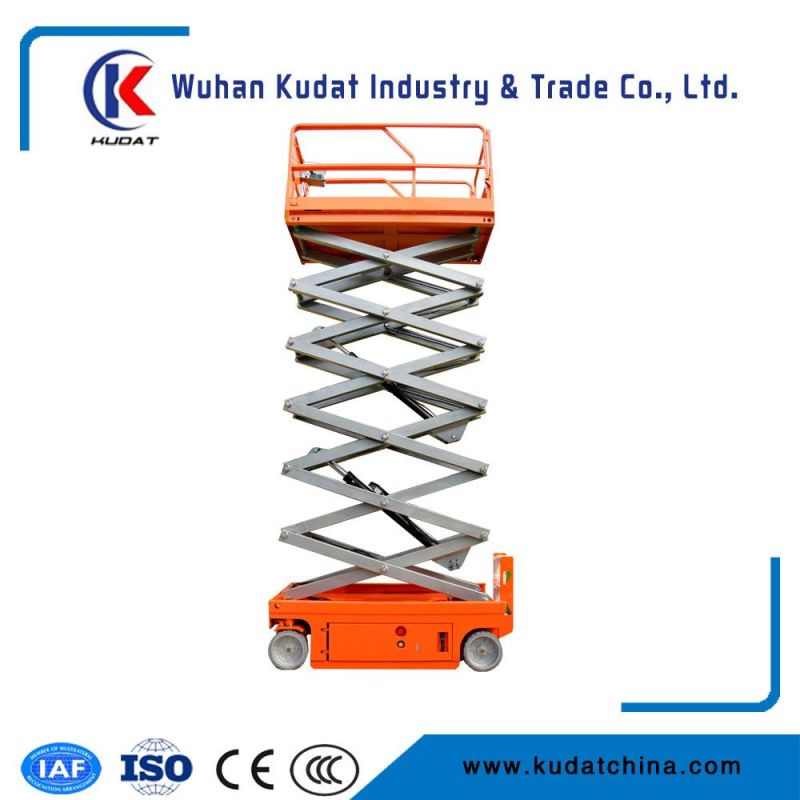

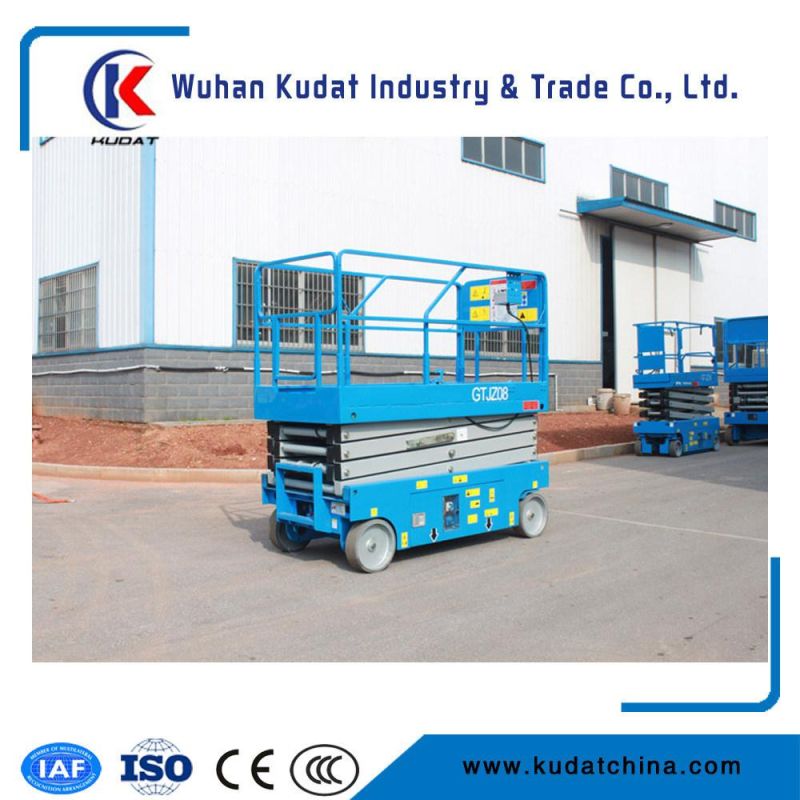

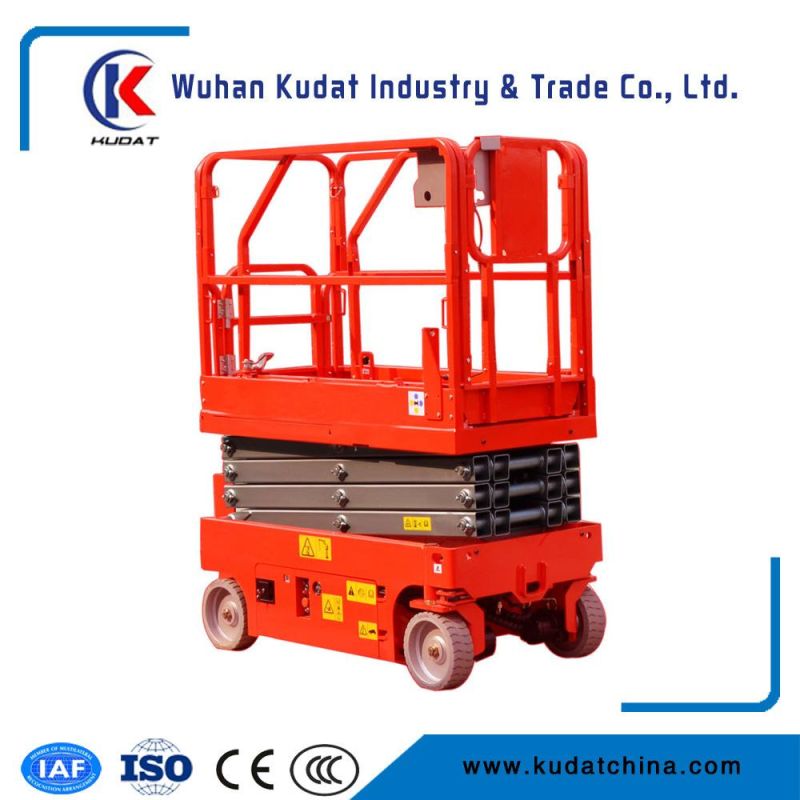

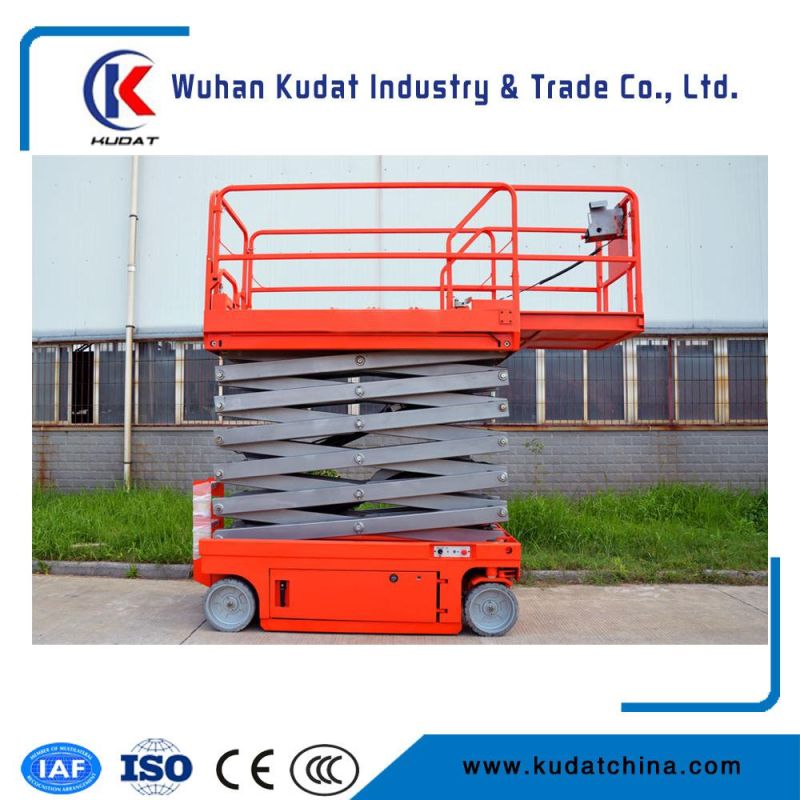

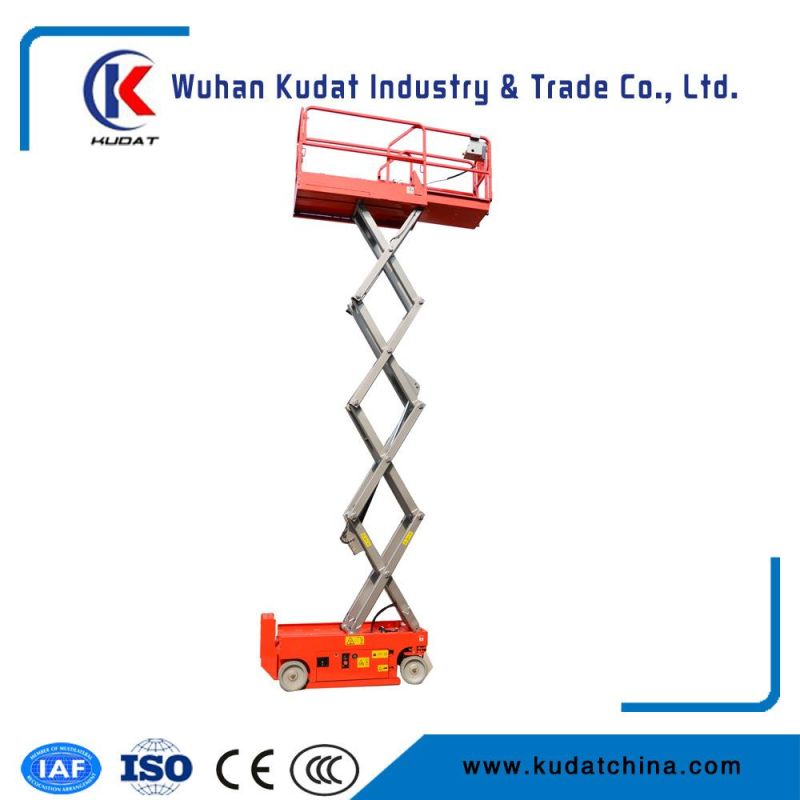

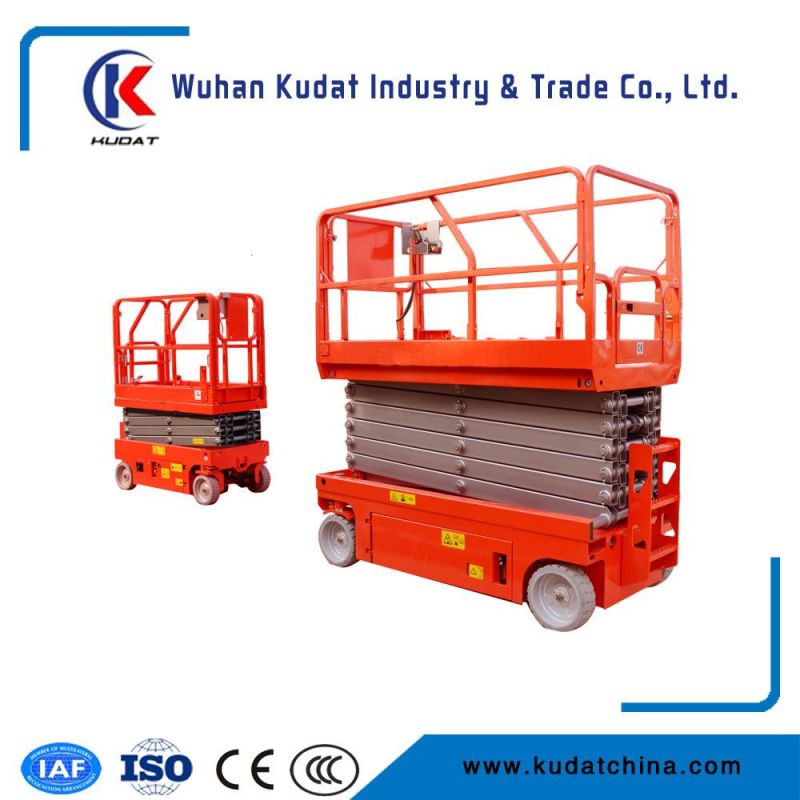

SJY Scissors Lift With CE Approved

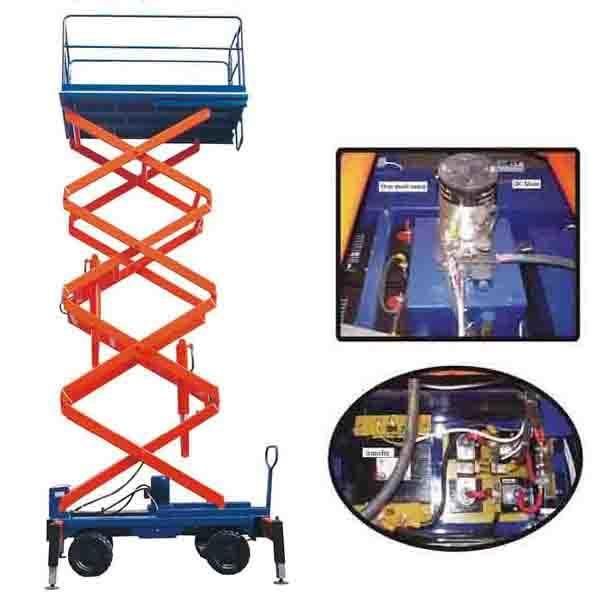

The scissor type aerial lift table is a special equipment of wide use for aerial work. The scissor type mechanical structure makes lift more stable, lift table more broader, carrying capacity much higher and is suitable for several operators at the same time. Therefore, the aerial work is of high efficiency and security.

Lifting structure is made up of manganese steel square pipes which have high strength.

Equipped with safety protection equipments to prevent overload of lift tables.

Equipped with safety production valves to prevent rupture of hydraulic pipelines.

Equipped with urgent fall equipments for the condition of power cut.

The SJY0.3-11scissor lifts is idea for building maintenance,
Indoor painting and decorating, cleaning, suspended ceiling installation, etc.
It offering a safe and effective working height of 13.8 metres.
Standard features include non-marking tyres, an optional roll-out deck extension
For extra platform space where it is really needed. The standard work voltage of
The scissor lift is 220V/60Hz or 380V/60Hz, 24V/DC battery power is available
For you.

Specification

Model SJY0.3-11
Unit Metric US
Work height 12.8m 42ft3.3in
Platform height 11m 36ft
Capacity 300kg 660lbs
Height-stowed 1.8m 6ft10.8in
Platform width 1.35m 4ft5in
Platform length 2.2m 7ft2.25in
Guardrail height 1m 3ft3.36in
Ground clearance 120mm 4.7in
Slide out deck extension Optional
Extension deck capacity 120kg 264lbs
Work voltage 220/380V
Package 2.2× 1.35× 1.8m 8× 5× 7ft
Weight 1380kg 3030lbs
Load quantity in 20'GP 4PC
ModelUnitKDSJY0.3-6
Rated capacitykg300
Plate height(max)mm6000
Plate height (min)mm1127
Plate size(l*m)mm1830*1000
Working voltagevAC380,AC220,or AC110
Working voltagevDC24,or AC_DC24
Motor power380v1.5kw
Motor power220v2.2kw
Overal lengthmm1900
Overal widthmm1200
Overal heightmm2163
Met weightkg940
