150/300/500kg Hydraulic Lift Table Scissor Lift Table Lifting Table

Ningbo Cholift Forklift Co., Ltd.
  • Application：Material Handling Industry
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：150-1000kg
  • Moves：Moving
  • Driven Type：Manual
  • Running Mode：Moving

Base Info

  • Model NO.：SPA150 300 500
  • Feature：Compact Stucture & Stable Quality
  • Certification：GS, CE, ISO 9001
  • Overall Dimensions：860X485X300,985X510X350mm
  • Rated Loading Capacity：150kg 300kg 500kg
  • Lift Drive / Actuation：Hand
  • Warranty：1 Year
  • Board：Optional
  • Table Size：740X450X35,855X500X50mm
  • Weight：44kg,82kg,87kg
  • Color：Optional
  • Min. Lifting Height：225mm
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Max. Lifting Height：560mm
  • Transport Package：Carton for Each Piece, 2~10PCS, Ply Wooden Pallets
  • Specification：SPS350
  • Trademark：CHOLIFT,ODM,OEM
  • Origin：Ningbo, China
  • HS Code：84279000
  • Production Capacity：1500 Piece,Pieces Per Month

Description

Model (single sissor) SPA150SPA300SPA500Load capacity/rated loadkg150300500Max.lift heighth12 (mm)740900900Min.height of tableh13 (mm)225340340Lifting heighth3 (mm)515560560Table sizelxb5xs(mm)740*450*35855*500*50855*500*50Foot pedal cycles to max height ≤25≤32≤45Service weightkg448287Carton sizemm860*485*300985*510*350985*510*350

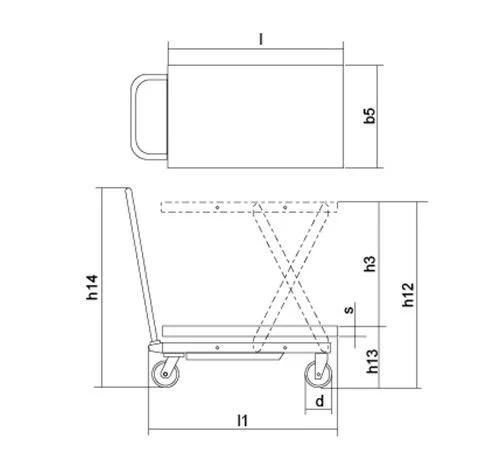

3. Diagram

150/300/500kg Hydraulic Lift Table Scissor Lift Table Lifting Table
