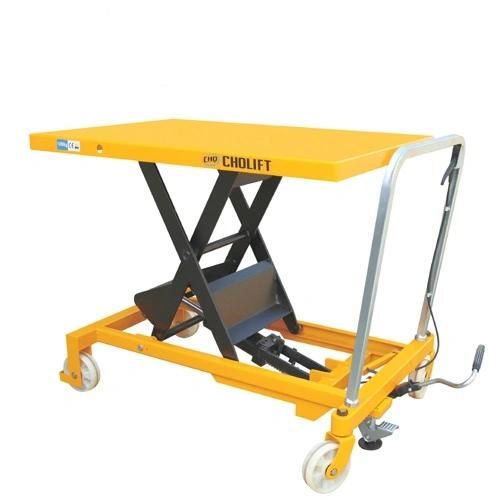

Hydraulic Foot Pump Mechanical Scissor Lift Table with Good Quality
Ningbo Cholift Forklift Co., Ltd.- Application：Material Handling Industry
- Lift Mechanism：Scissor Lift
- Carrying Capacity：150-1000kg
- Moves：Moving
- Driven Type：Manual
- Running Mode：Moving
Base Info
- Model NO.：SPS350
- Feature：Stable Quality & Convenience
- Certification：GS, CE, ISO 9001
- Overall Dimensions：985*510*350mm
- Lifting Height：950mm
- Commodity：Manual Scissor Lift Table
- Quality：Excellent
- Lift Drive / Actuation：Hydraulic
- Power：No
- Load Capacity：350kg
- Factory：Yes
- Table Size：910*500*52mm
- with Overload Protection：Yes
- Weight：105
- OEM：Is Welcomed
- Key Word：Mechanical Scissor Lift Table
- Min. Lifting Height：350mm
- Package：by Standard Export Carton
- Transport Package：Each One Packed by Standard Export Carton
- Specification：Wooden pallet
- Trademark：CHOLIFT
- Origin：Ningbo, China
- HS Code：84279000
- Production Capacity：1000 Pieces Per Day
Description
Model(Double Scissor)
SPS150
SPS350
SPS800
Load capacity
150kg
350kg
800
Max. lift height
1100mm
1300mm
1500mm
Min. height of table
302mm
350mm
Lifting height
798mm
950mm
1025mm
Table size
700*450*35mm
910*500*52
1220*610*60
Foot padel cycles to max height
≤30
≤60
≤70
Innovation design: details
1) High reliability, suitable for a variety of environments. It can be used for 3 ~ 5 years under normal maintenance.
2) High-strength alloy steel carefully crafted, increased loading capacity.
3) Set the active safety valve to prevent overloading of operation.
4) Maintenance-free design, ensure security, reduce service cost.
