• Model NO.：QUY80
• Trademark：xcm
• Origin：China
• Production Capacity：3, 000 Pieces,Year

Basic Info.

Model NO. QUY80 Trademark xcm Origin China Production Capacity 3, 000 Pieces/Year

Product Description

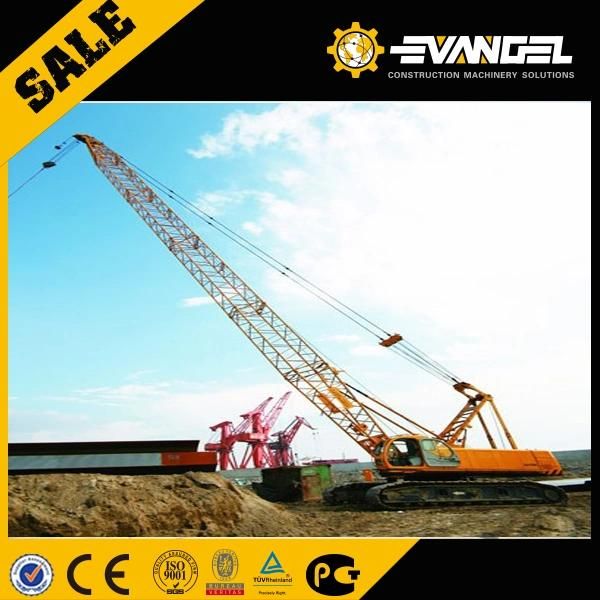

 Crawler Crane QUY80
One stop service
Competitive price
Comprehensive after ---sale services and spare parts
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.

Item	Unit	Parameter
Max. lifting capacity	t	80
Max. load moment	kN. m	337
Boom length	m	13-58
Elevation angle	°	30-80
Main winch system	m/min	0-120
Aux. winch system	m/min	0-120
Elevating system	m/min	0-57
Grade-ability		30%
Swing speed	r/min	0-2
Max. travel speed	km/h	1.2
Mean ground pressure	MPa	0.087
Engine output	KW	200
Jib length	m	9-18
Jib erection angle	°	10/30
Max. weight of single part in transport state	t	28
Dimension of single part(main machine) in transport state(L× W× H)	m	6.5× 3.3× 3.5
