• Model NO.：VC-B
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Optional
• Hook：2.0 Manganese Steel
• Usage：Lifting
• Warranty：1 Year
• Material：High Quality Steel
• Chain Full：2
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai
• HS Code：84279000
• Production Capacity：2000 Set ,Month

Basic Info.

Model NO. VC-B Certification CE, ISO9001:2000 Condition New Color Optional Hook 2.0 Manganese Steel Usage Lifting Warranty 1 Year Material High Quality Steel Chain Full 2 Payment Term T/T, L/C Loading Port Shanghai Transport Package Plywood Specification CE, ISO Trademark HUGO Origin Shanghai HS Code 84279000 Production Capacity 2000 Set /Month

Product Description

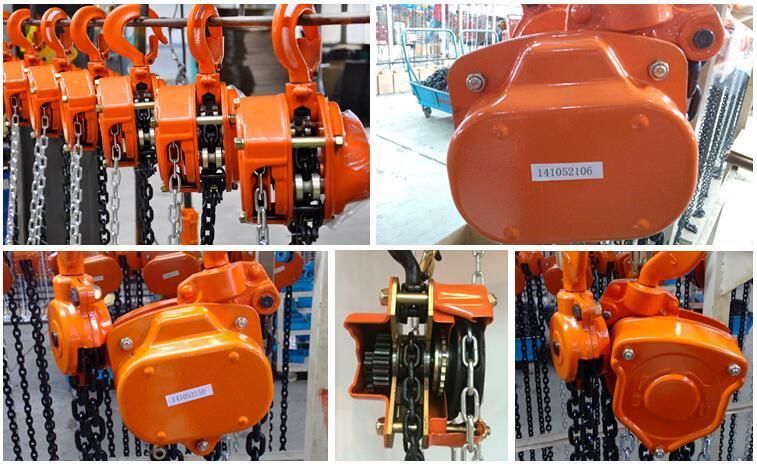

Introduction for Hand Chain Block with Forged Hook
KII series chain block is one kind of use simple, carries the convenience the manual hoisting machinery. It is in the structural design and the operational performance.

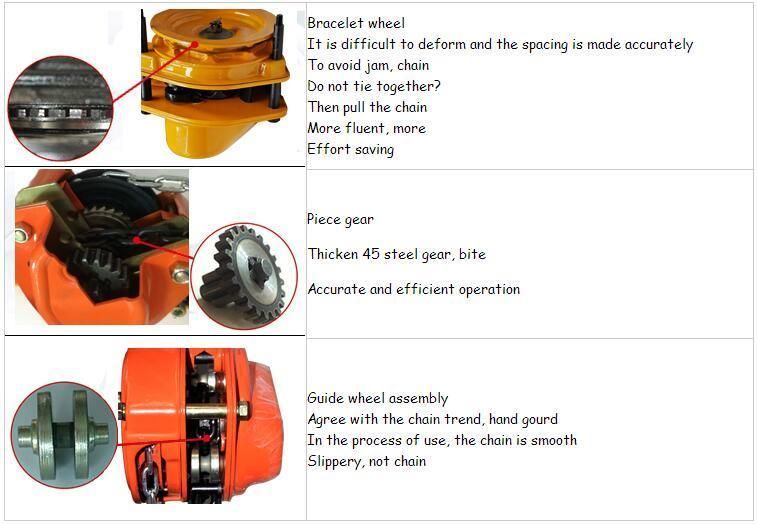

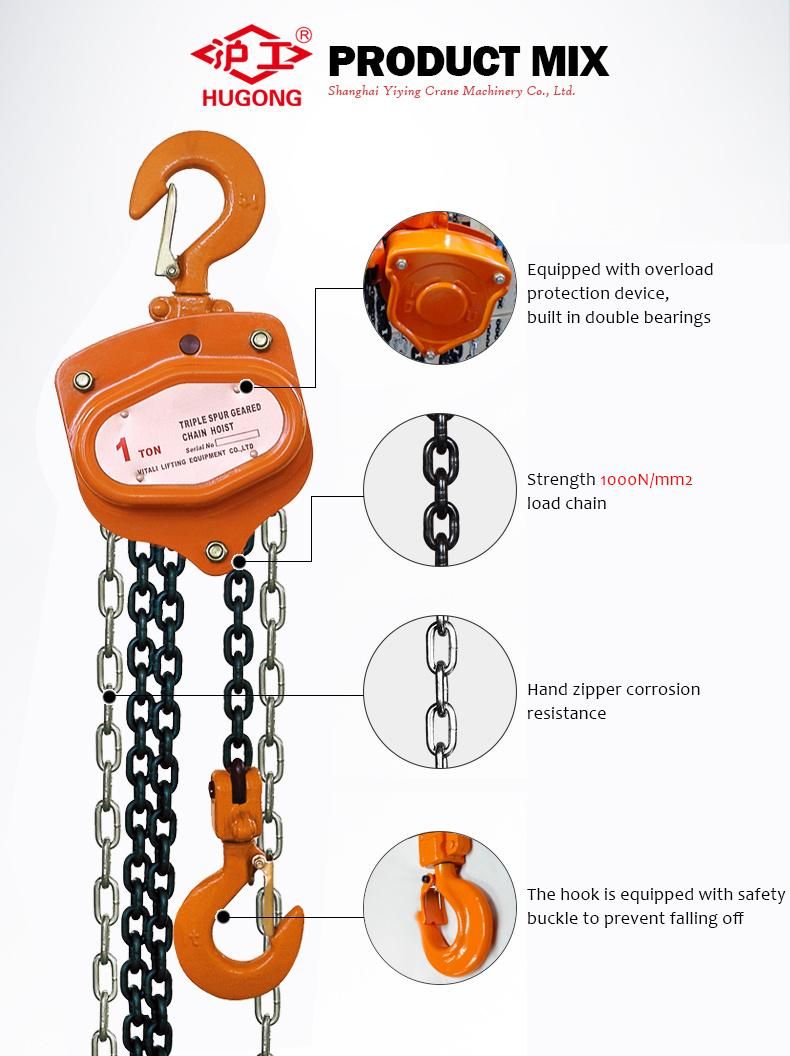

Characteristics for Chain Hoists (VC-B) 2.0 Manganese Steel Hook

1). Uses safely reliable, maintains easily.
2). Mechanical efficiency is high, the bracelet pulling force is small
3). It is self-possessed lightly, and advantageous carries.
4). Durable
5). Small size

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B  5 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9

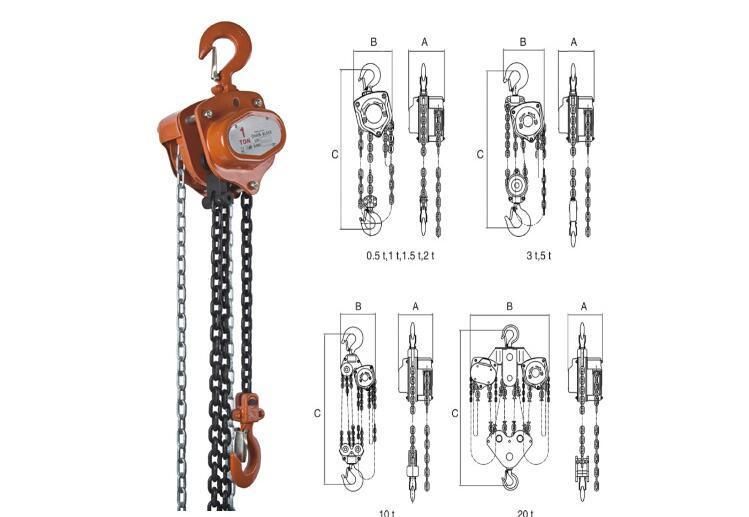

Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

Package for the VC-B manual chain block
