Manual Chain Block Forging Tools and Equipment Ratchet Pulley
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Single Grinder Crane
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：Manual
- Maximum Lifting Height：>20m
- Chain Falls：1-4
Base Info
- Model NO.：VC-B
- Certification：CE
- Condition：New
- Color：Yellow
- Cover：Alloy
- Warranty：2 Years
- Request Lifting Capacity：Available
- Request Lifting Height：Available
- Zinc Hand Chain：Available
- Hook：Forged
- Delivery Time：10 Days
- Chain：G80
- Brand Name：Hugo
- Transport Package：Carton, Plywood, Pallet
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai, China
- HS Code：8425190000
- Production Capacity：10000,Month
Description
Basic Info.
Model NO. VC-B Certification CE Condition New Color Yellow Cover Alloy Warranty 2 Years Request Lifting Capacity Available Request Lifting Height Available Zinc Hand Chain Available Hook Forged Delivery Time 10 Days Chain G80 Brand Name Hugo Transport Package Carton, Plywood, Pallet Specification CE, ISO, TUV Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 10000/MonthProduct Description
Introduction for Manual Chain Block Forging Tools and Equipment Ratchet PulleyKII series chain block is one kind of use simple, carries the convenience the manual hoisting machinery. It is in the structural design and the operational performance.

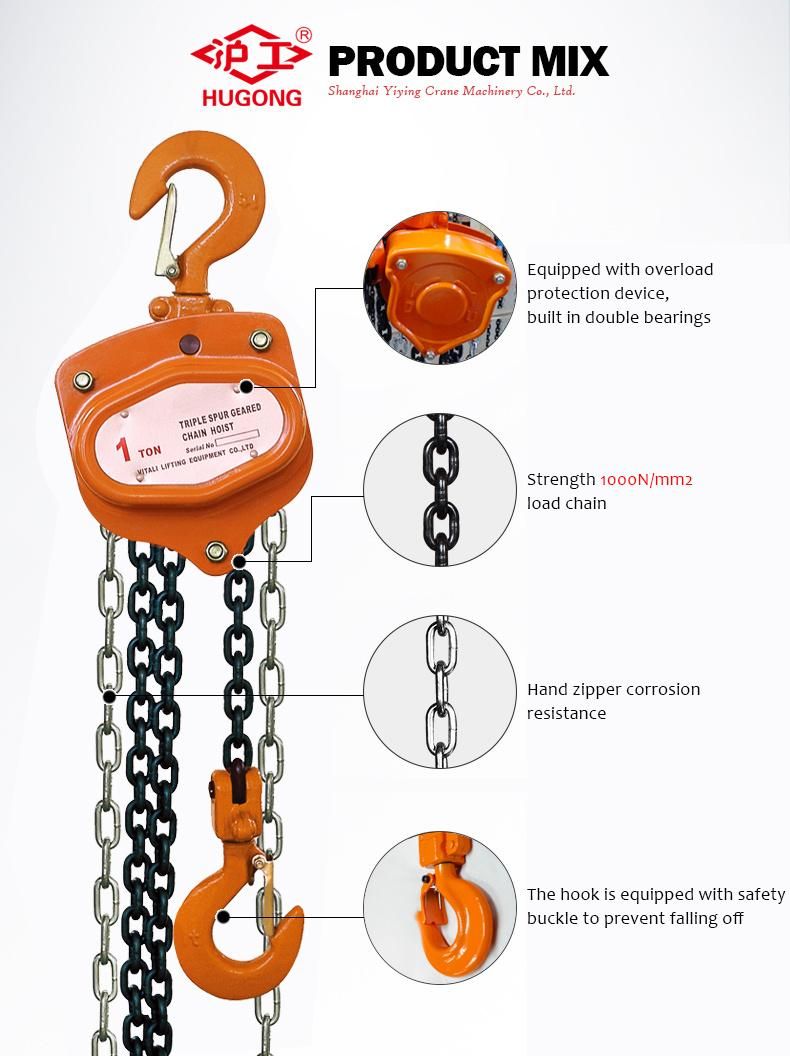

Characteristics for Chain Hoists (VC-B) 2.0 Manganese Steel Hook
1). Uses safely reliable, maintains easily.
2). Mechanical efficiency is high, the bracelet pulling force is small
3). It is self-possessed lightly, and advantageous carries.
4). Durable
5). Small size
| Model | VC-B 0.5 | VC-B 1 | VC-B 1.5 | VC-B 2 | VC-B 5 3 | VC-B 5 | VC-B 10 | VC-B 20 | VC-B 30 | VC-B 50 |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 |
| Standard lift(m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Running test load(t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | 45 | 75 |
| No.of falls of load chain | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 8 | 12 | 24 |
| Load chain diameter(mm) | 5 | 6.3 | 7.1 | 8 | 7.1 | 9 | 9 | 9 | 9 | 9 |
| Dimension(mm) A | 129 | 149.5 | 157.5 | 161.5 | 151.5 | 163 | 207 | 215 | 350 | 406 |
| B | 136 | 145 | 164.5 | 187 | 164.5 | 211 | 398 | 650 | 680 | 962 |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 |
| Net weight(kg) | 8.4 | 12 | 16.2 | 20 | 24 | 41 | 79 | 193 | 220 | 1092 |
| Packing(L*W*H)(cm) | 22*14*15 | 25*19*16 | 33*24*16 | 33*24*19 | 34.5*24*16 | 40*30*19 | 48*42*18.5 | 78*68*20 | 85*67*30 | 110*100*130 |
Package for the VC-B manual chain block
