• Model NO.：KFM5140JGK07S-GKS-28E
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• External Dimensions(mm)：8950×2490×3950
• Rated Loading(Kg)：200
• Max. Working Height(mm)：28000
• Max. Height From Ground(mm)：26300
• Max. Working Radius(mm)：14500
• Transport Package：Nude
• Specification：ISO, CE
• Trademark：N. traffic
• Origin：China
• Production Capacity：3000PCS,Month

Bulletin No.KFM5140JGK07S
TypeGKS-28E(mm)
External dimensions(mm)8950×2490×3950
Structure type
Four-section telescopic boom

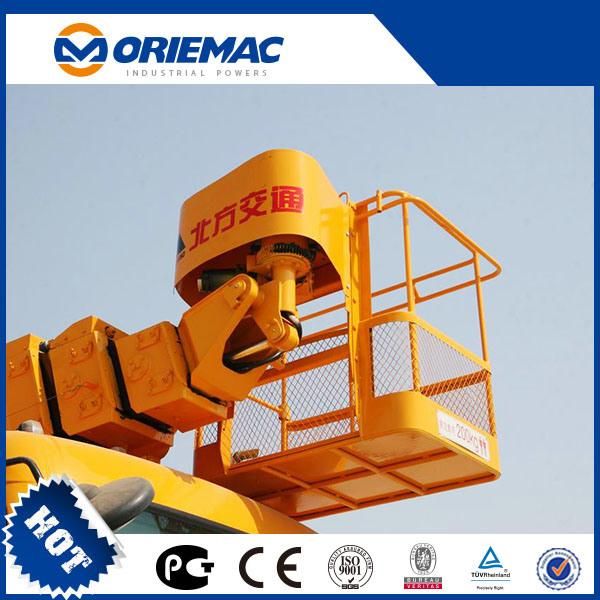

Working Cage(mm)
Internal size(mm)1000×700×1100(kg)
Rated loading(kg)200(2)
200(or 2 persons)(mm)
Max. Working height(mm)28000(mm)
Max. Height from ground(mm)26300(º)
Rotation angle(º)Left 90º, right 90º(mm)
Max. Working radius(mm)14500(mm)
Working radius when doing the highest height(mm)4480
Working Boom(º)
Lifting angle(º)-12~80(mm)
Length of main boom(mm)7860-24700(º)
Boom rack rotation angle(º)360

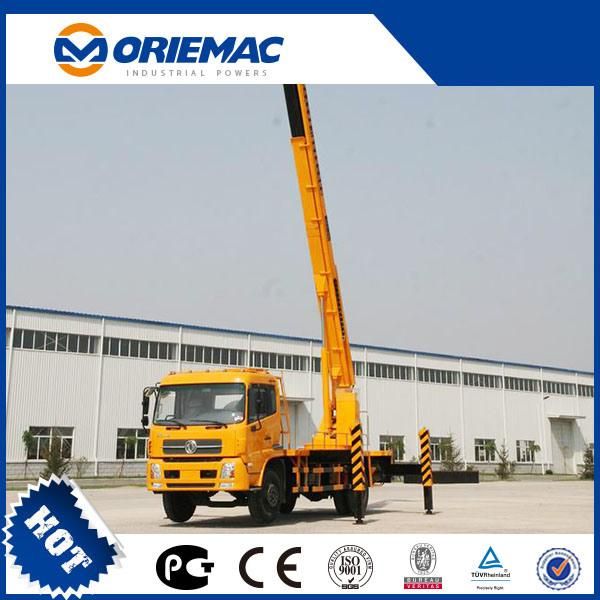

Outrigger(mm)
Vertical span(mm)5000(mm)
Horizontal span(mm)4500(mm)
Traveling of vertical outrigger650
Adjustment
Single adjustable
