• Model NO.：MINI-UVL
• Running Mode：Stationary
• Certification：CE
• Volt：12-24V
• Platform Size：1100mm*750mm
• Loading Capacity：350kg
• Overall Width：970mm
• Overall Length：1615mm
• Overall Height：90mm
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. MINI-UVL Running Mode Stationary Certification CE Volt 12-24V Platform Size 1100mm*750mm Loading Capacity 350kg Overall Width 970mm Overall Length 1615mm Overall Height 90mm Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

A. INTRODUCTION

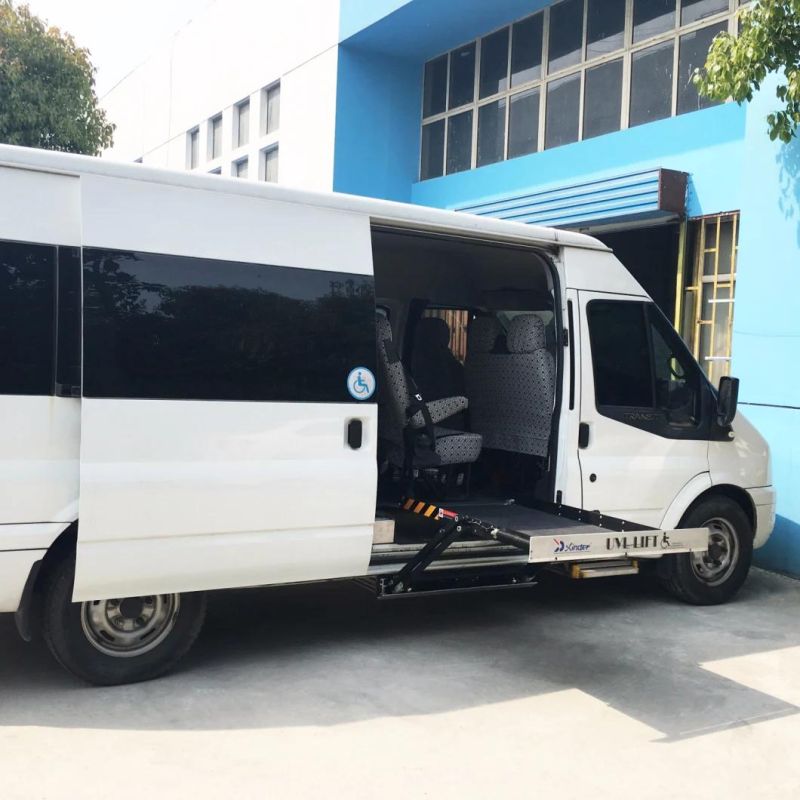

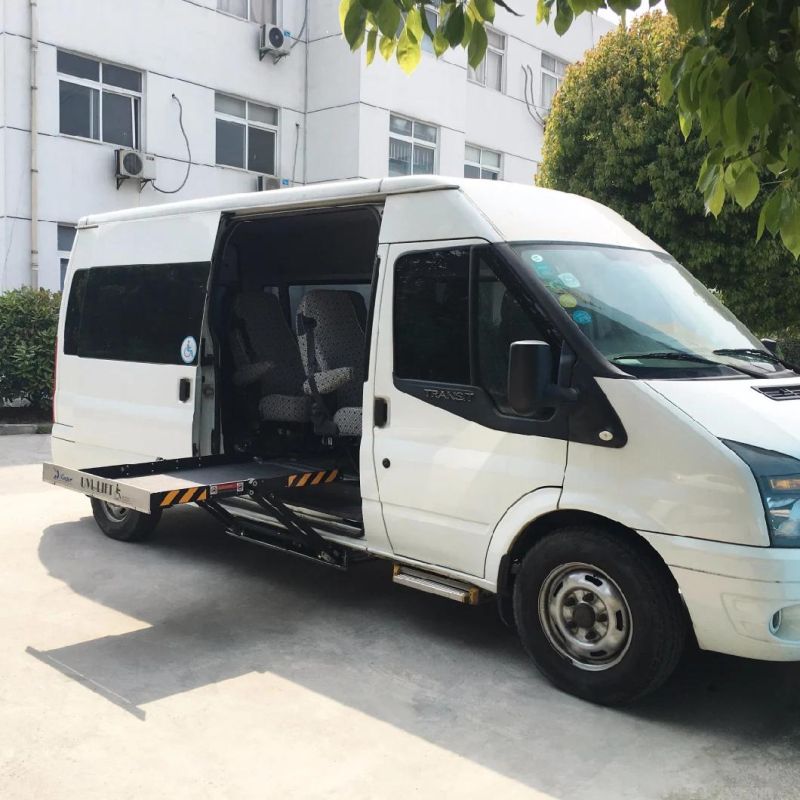

WL-UVL Series wheelchair lift is installed under vehicle floor. It is operated easily, safe and reliable, with load capacity 350KG. The wheelchair occupant, attendant or driver can operate it by operating switches.

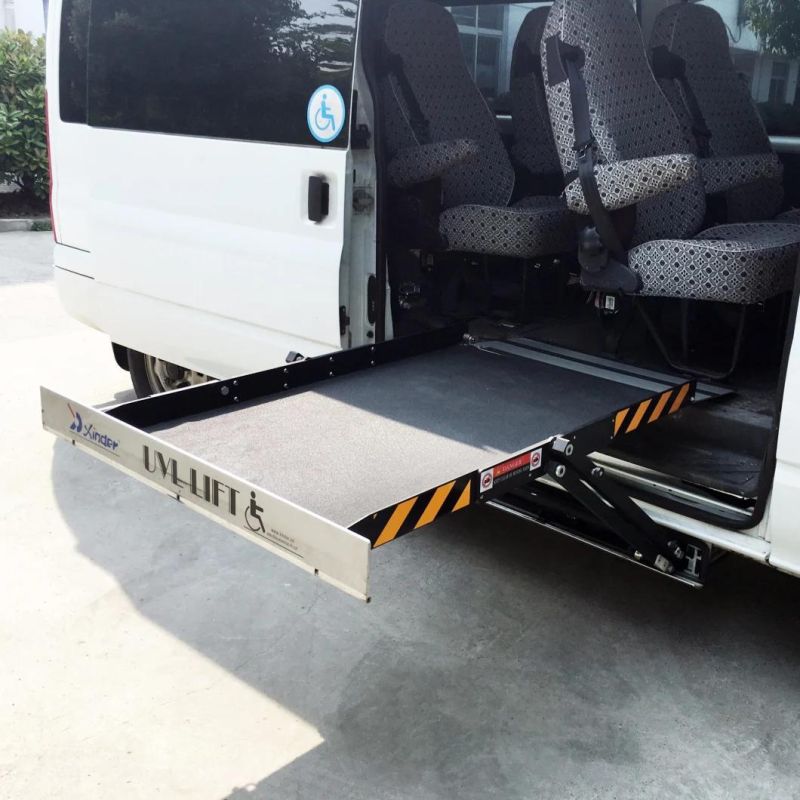

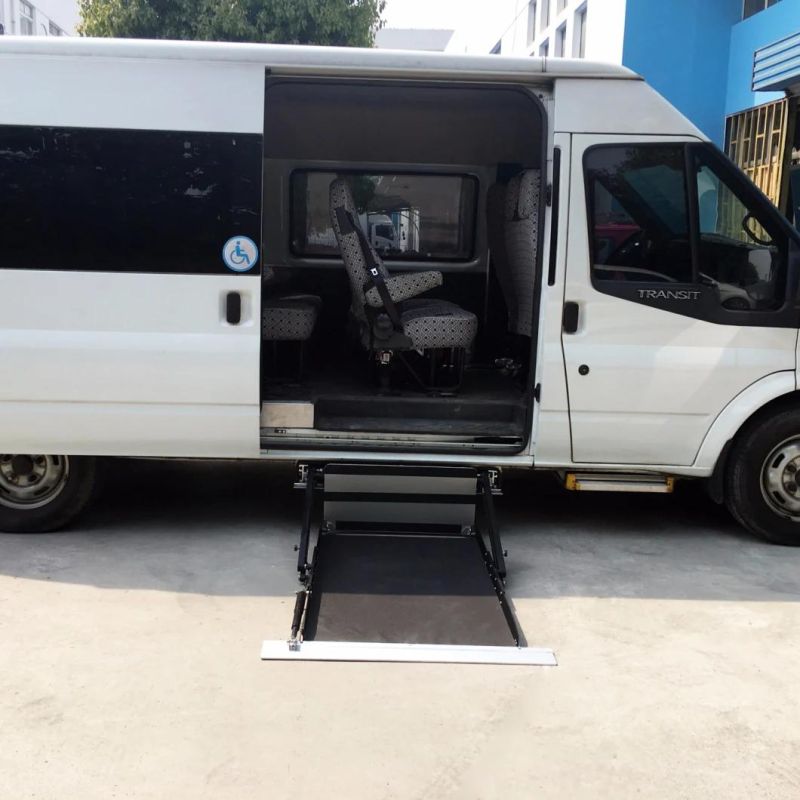

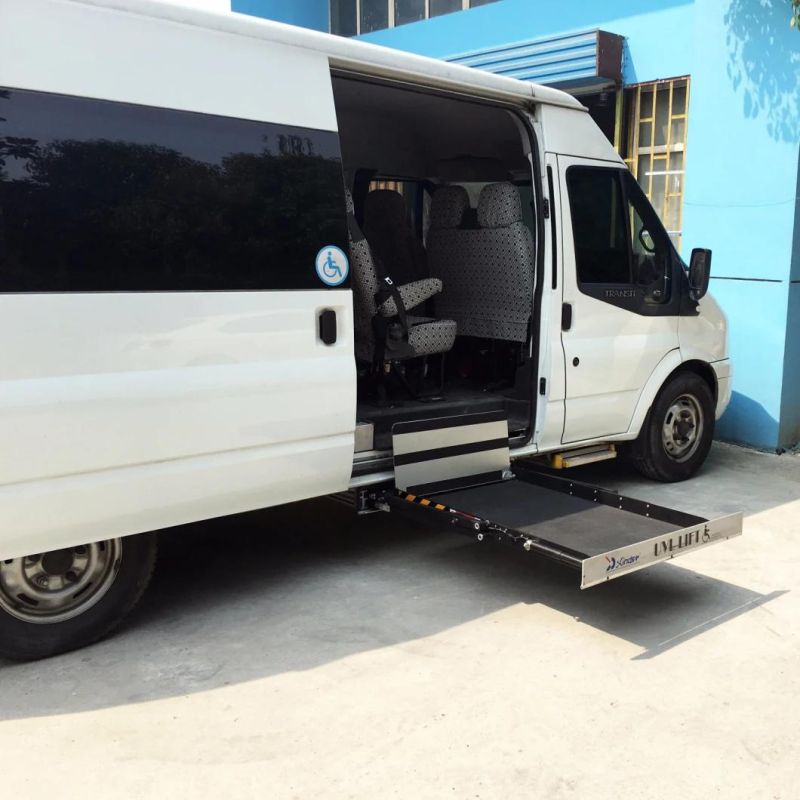

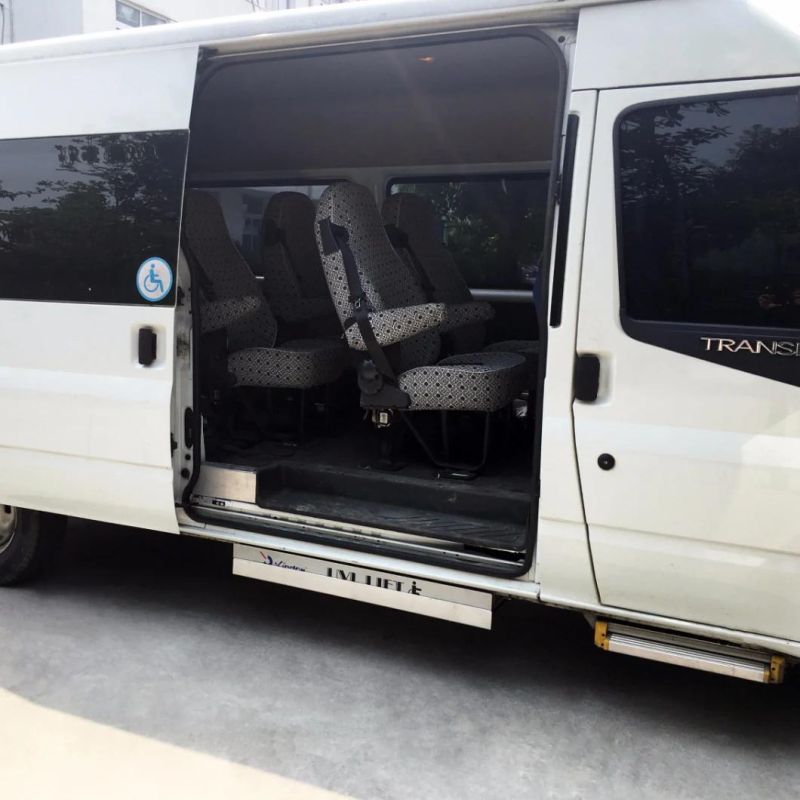

This wheelchair lift platform extends out from vehicle floor, raises to vehicle floor or down to ground. If you do not use it, the platform can be folded under vehicle floor so that make sure enough room for doorway.

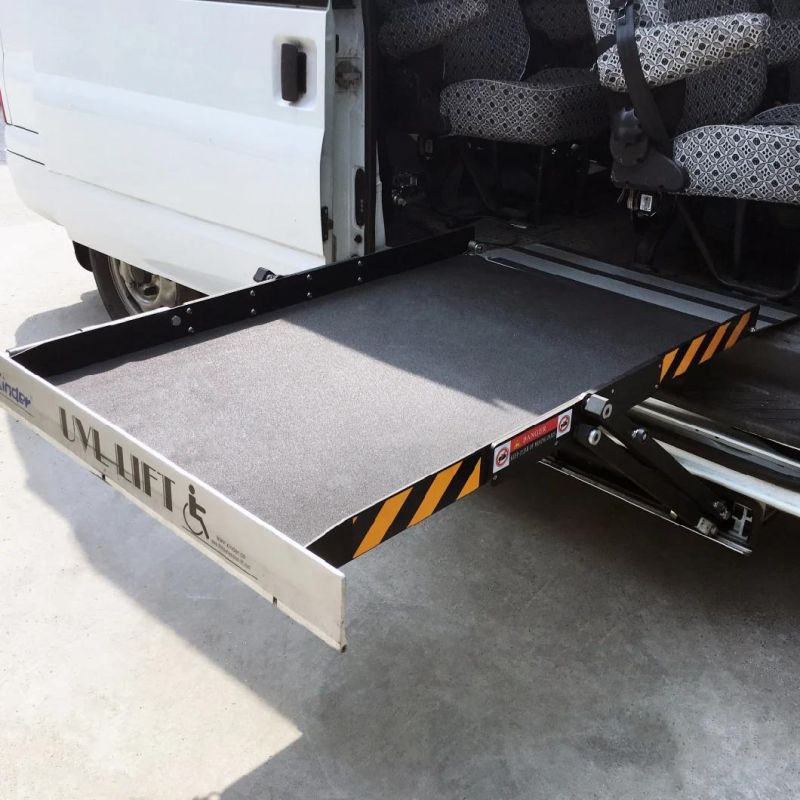

There is a non-slippery platform to put the wheelchair on, and each front rollstop and rear rollstop, which all make the wheelchair go inside the vehicle, also protect the platform when it raise up and down.
It uses hydraulic power unit, stable when hydraulic lift up, save up electricity when gravity decline. With optional standard kit manual emergency devices, if the lift without power, it will be operated manually by more than 2 staffs.

B. ADVANTAGES
1. Electric outboard rollstop and automatic inboard rollstop
2. Super thin compact design
3. No-skid aluminum honeycomb platform
4. Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
5. Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
6. Side handrails (Option), for increased comfort and security
7. Sound and flash light alarm during operation of platform
8. Built in manual backup system

Model	Platform Size	Overall Length	Overall Width	Overall Height	Volt	Loading Capacity
MINI-UVL	1100mm*750mm	1615mm	970mm	90mm	12-24V	350KG
