• Model NO.：WL-D-880U
• Certification：CE
• Loading Capacity：350kg
• Own Weight：134kg
• Electric System：12-24V
• Max Working Pressure：14MPa
• Platform Dimension：1150*720mm,1250*820mm
• Max Floor Height：880mm
• Operation：Electric and Manual
• Working Method of Front and Rear Rollsto：Automatic
• Position of Hydraulic Pump：Inside Vehicle
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：84289090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. WL-D-880U Certification CE Loading Capacity 350kg Own Weight 134kg Electric System 12-24V Max Working Pressure 14MPa Platform Dimension 1150*720mm/1250*820mm Max Floor Height 880mm Operation Electric and Manual Working Method of Front and Rear Rollsto Automatic Position of Hydraulic Pump Inside Vehicle Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 84289090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

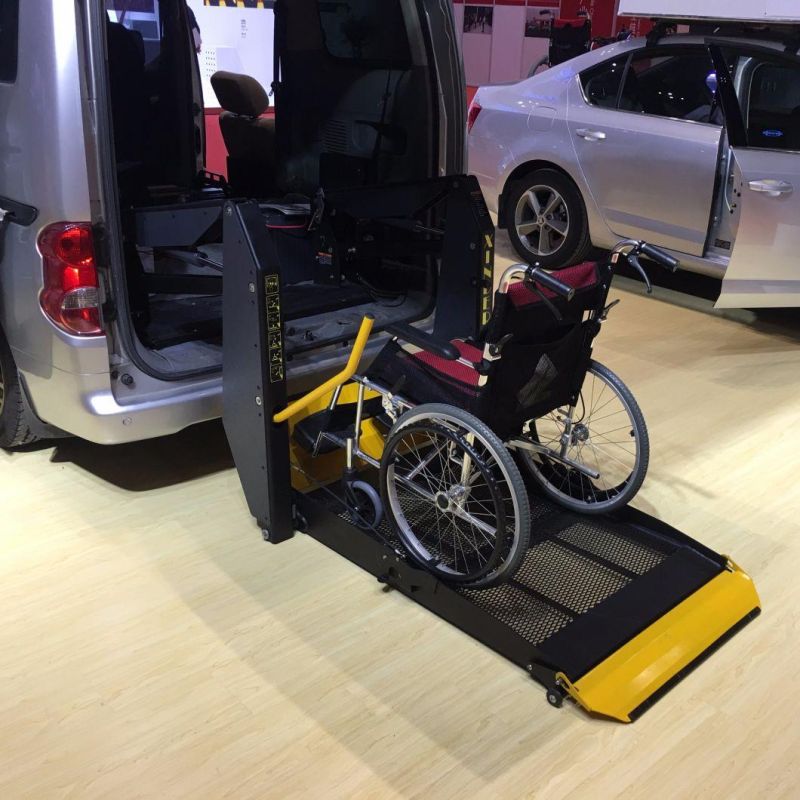

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

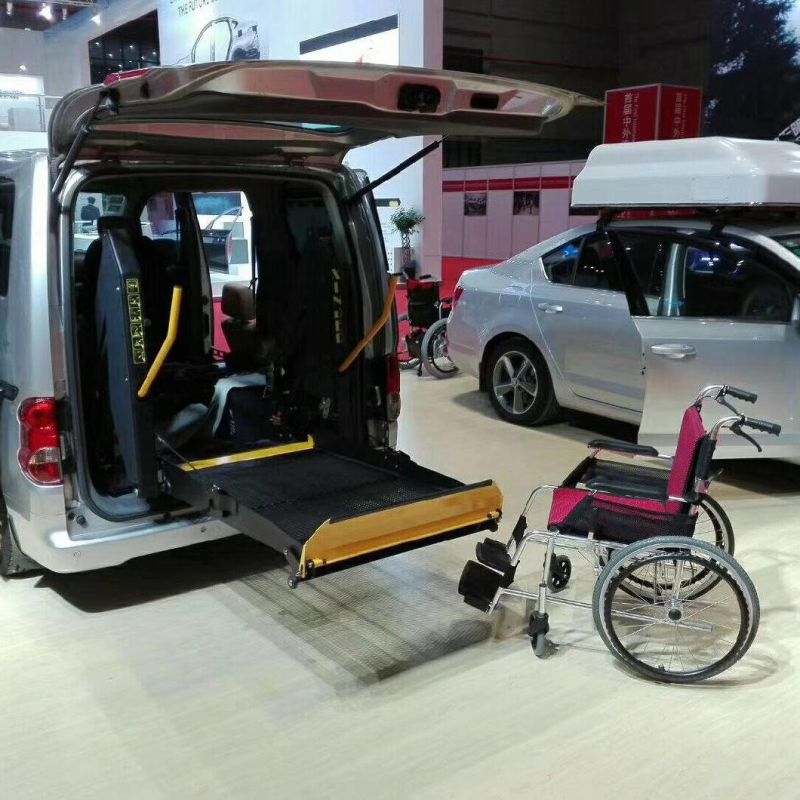

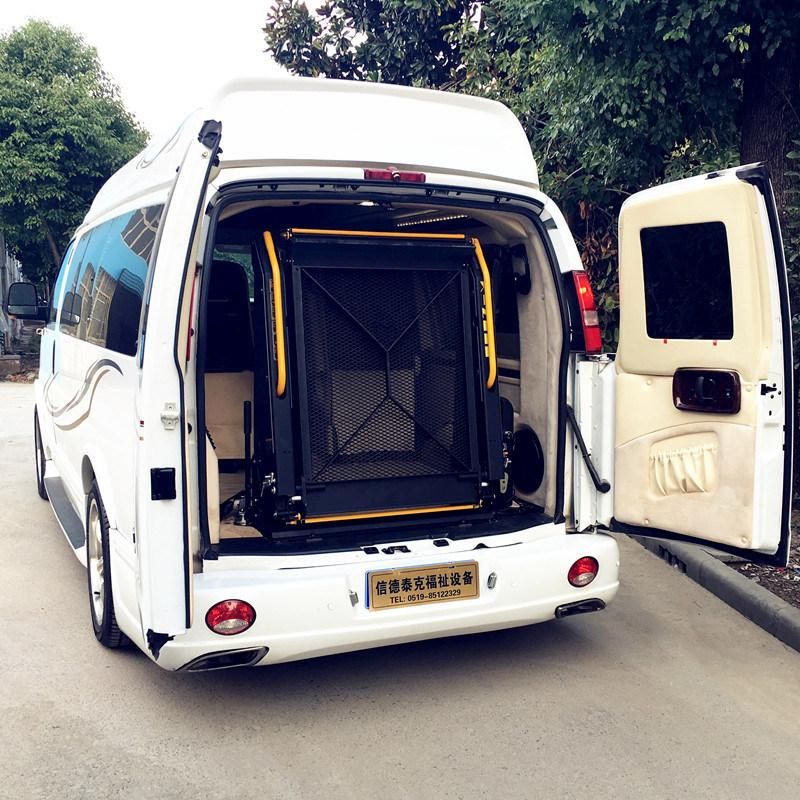

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

• DN-880U wheelchair lift has foldable platform;

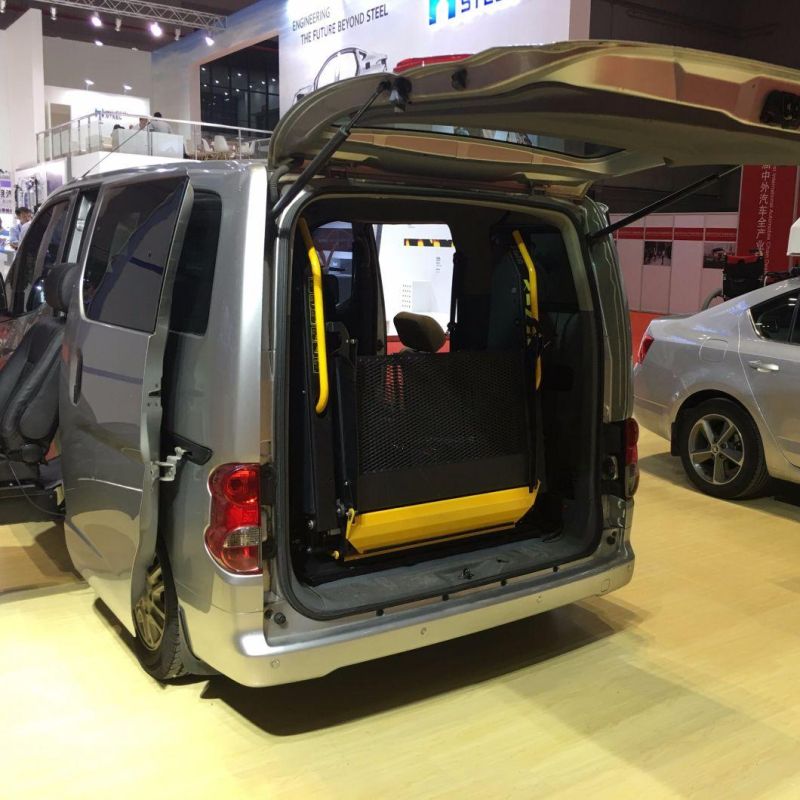

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:350kg;



Advantages:

• Foldable platform provides good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;



Loading capacity	Own weight	Electric system	Max working pressure	Platform dimension	Max floor height
350 kg	134 kg	12-24 Volt	14 Mpa	1150*720mm/1250*820mm	880 mm



Model	Operation	Working Method of front and rear rollstop	Position of Hydraulic pump	Application
WL-D-880U	Electric and manual	Automatic	Inside vehicle	Van, minibus

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880U-1150	490mm	1137mm	1200mm	1140mm	720mm	1150mm
WL-D-880U-1250	490mm	1237mm	1200mm	1240mm	820mm	1250mm
