• Model NO.：WL-D-880
• Certification：CE, Ts16949
• Loading Capacity：350 Kg
• Volt：12,24 V
• Platform Dimension：1150*720mm,1250*820mm
• Max Floor Height：880 Mm
• Max Working Pressure：14 MPa
• Own Weight：134 Kg
• Operation：Electric and Manual
• Working Method of Front and Rear Rollsto：Automatic
• Position of Hydraulic Pump：Inside Vehicle
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Jiangsu Changzhou
• HS Code：8428909090
• Production Capacity：1000 Sets

Basic Info.

Model NO. WL-D-880 Certification CE, Ts16949 Loading Capacity 350 Kg Volt 12/24 V Platform Dimension 1150*720mm/1250*820mm Max Floor Height 880 Mm Max Working Pressure 14 MPa Own Weight 134 Kg Operation Electric and Manual Working Method of Front and Rear Rollsto Automatic Position of Hydraulic Pump Inside Vehicle Transport Package Wooden Case Specification CE Trademark Xinder Origin Jiangsu Changzhou HS Code 8428909090 Production Capacity 1000 Sets

Product Description

Introductions:

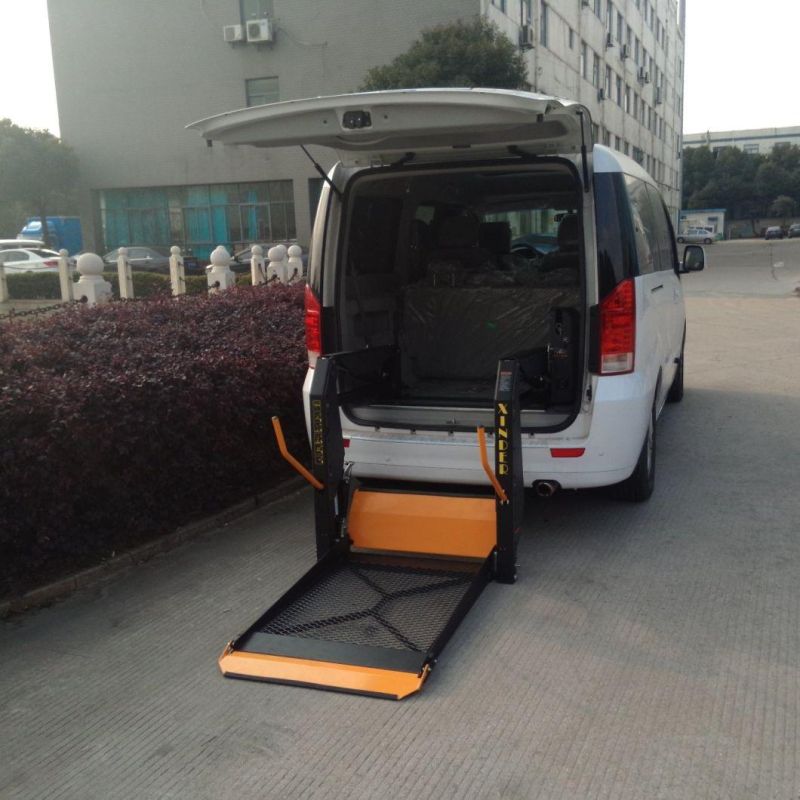

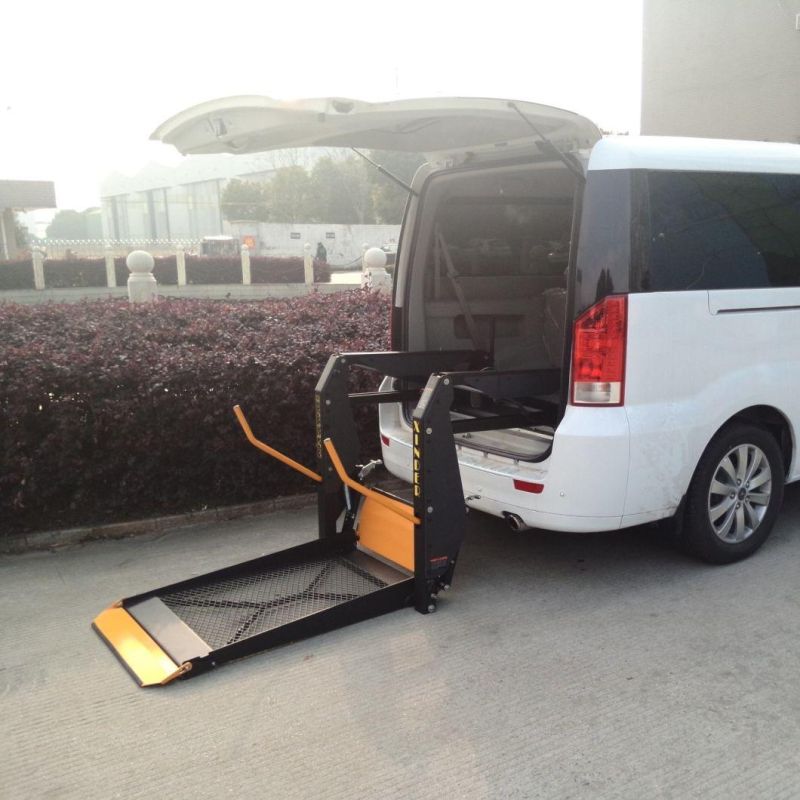

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

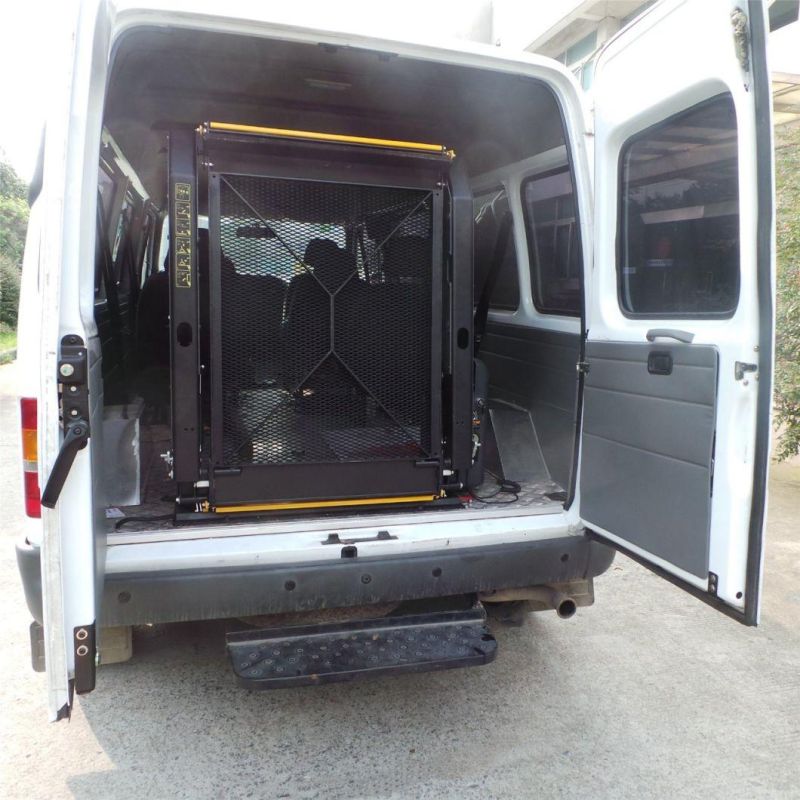

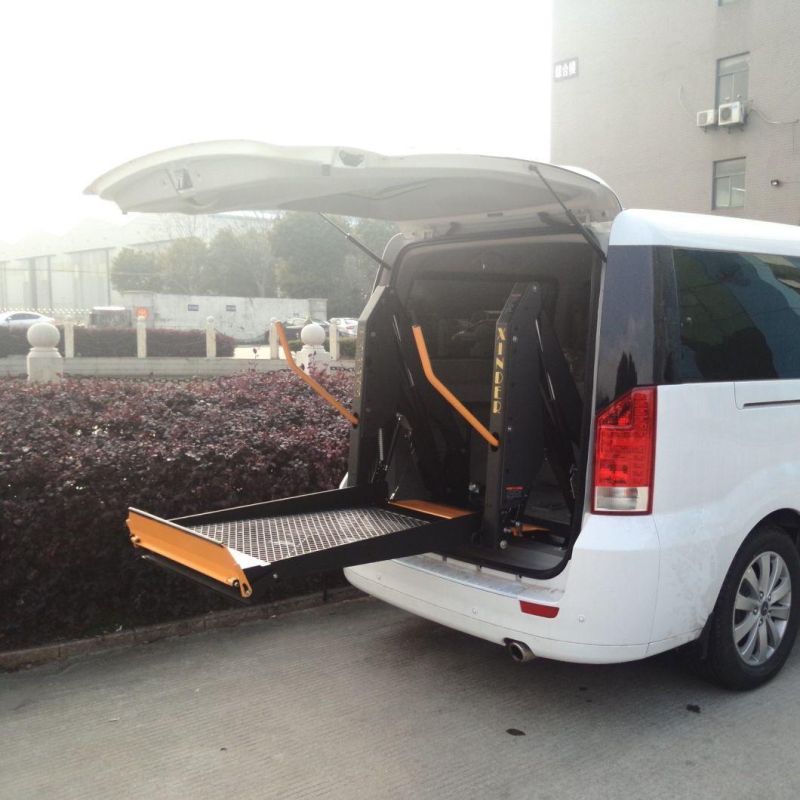

This wheelchair lift can be installed at the rear door or side door.

Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

This lift is operated by a wired remote control or by your mobilephone.

It also can be operated manually for emergency.

It is CE certified.

Loading capacity is 350kg.



Advantages:

• Solid platform provides additional safety;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;

Loading capacity	Own weight	Electric system	Max working pressure	Platform dimension	Max floor height
350 kg	134 kg	12-24 Volt	14 Mpa	1150*720mm/1250*820mm	880 mm



Model	Operation	Working Method of front and rear rollstop	Position of Hydraulic pump	Application
WL-D-880	Electric and manual	Automatic	Inside vehicle	Van, minibus

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880-1150	435mm	1137mm	1215mm	1140mm	720mm	1150mm
WL-D-880-1250	435mm	1237mm	1315mm	1240mm	820mm	1250mm
