• Model NO.：WL-D-880S
• Certification：CE
• Loading Capacity：350kg
• Own Weight：134kg
• Electric System：12,24V
• Max Working Pressure：14MPa
• Platform Dimension：1150*720mm,1250*820mm
• Max Floor Height：880 Mm
• Operation：Electric and Manual
• Working Method of Front and Rear Rollsto：Automatic
• Position of Hydraulic Pump：Inside Vehicle
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu Province, China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. WL-D-880S Certification CE Loading Capacity 350kg Own Weight 134kg Electric System 12/24V Max Working Pressure 14MPa Platform Dimension 1150*720mm/1250*820mm Max Floor Height 880 Mm Operation Electric and Manual Working Method of Front and Rear Rollsto Automatic Position of Hydraulic Pump Inside Vehicle Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu Province, China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

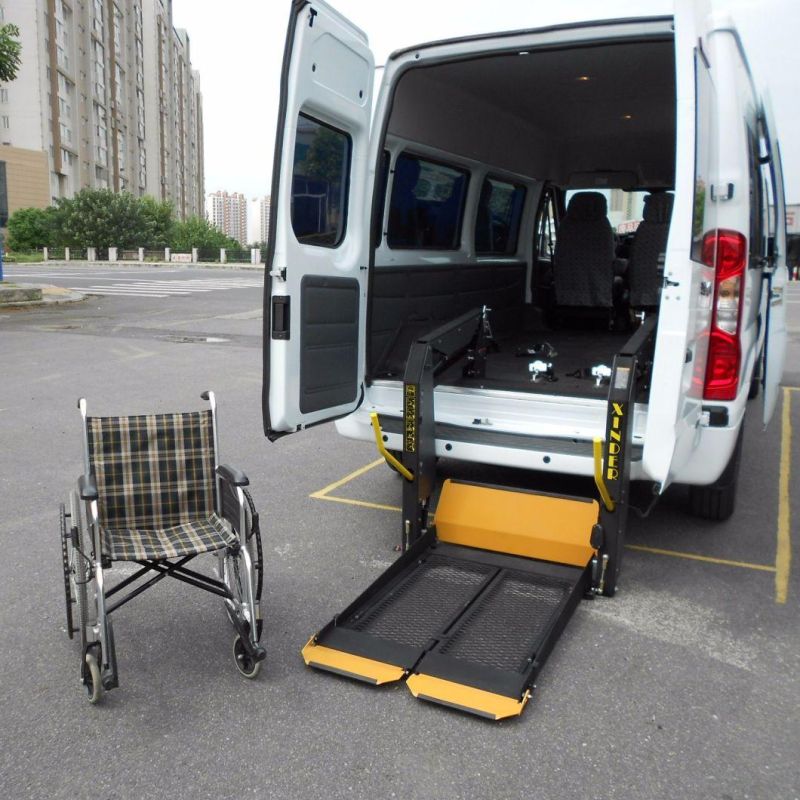

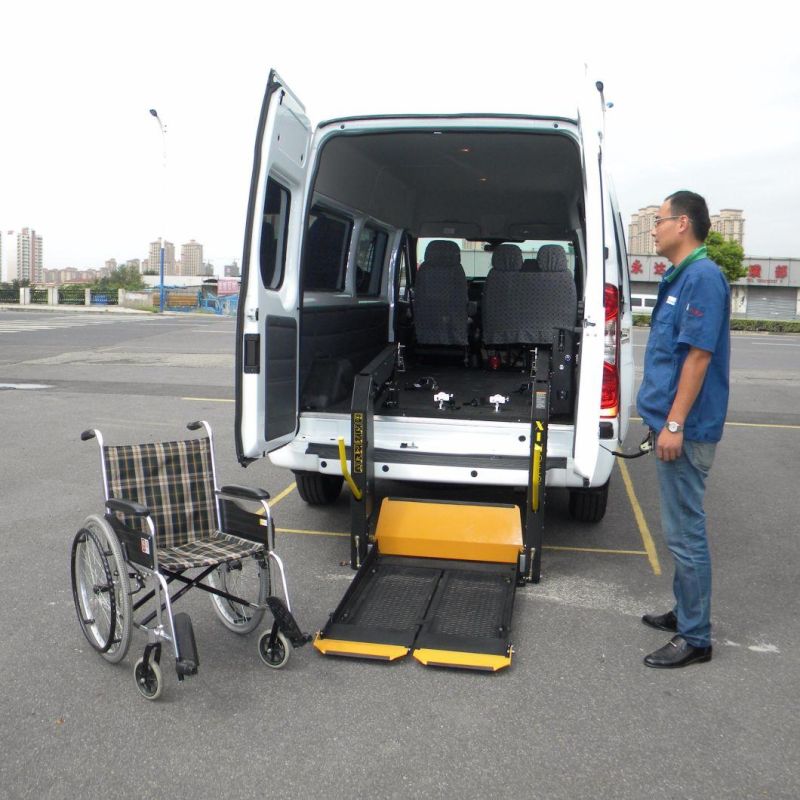

• This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

• It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

• This wheelchair lift can be installed at the rear door or side door.

• Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

• DN-880S wheelchair lift has split platform;

• Provides good visibility both for driver and passengers when stowed;

• Operated by the wired remote control or by your mobilephone;

• It also can be operated manually for emergency;

• CE certified;

• Loading capacity:350kg;



Advantages:

• Split platform provides clear path and good visibility both for passengers and the dricer;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• CE certificated;

• High-gloss polyester powder coat finish to prevent corrosion;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;

Model	Overall Length(A)	Overall Width(B)	Overall Height(C)	Platform Net Length(D)	Platform Net Width(E)	Required Door Width(F)
WL-D-880S-1150	490mm	1137mm	1235mm	1150mm	720mm	1250mm
WL-D-880S-1250	490mm	1237mm	1300mm	1250mm	820mm	1330mm
