• Model NO.：WL-D-880U
• Max Lifting Height：880mm
• Max Loading Capacity：350kg
• Voltage：12V or 24V
• Net Weight：135kg
• Gross Weight：185kg
• Max Working Pressure：14 MPa
• Drive Mode：Electric and Hydraulic
• Certificate：CE
• Model：Wl-D-880-U
• Transport Package：Wooden Case
• Specification：CE
• Trademark：XINDER
• Origin：Changzhou Jiangsu
• HS Code：8428909090
• Production Capacity：1000 Units,Month

Basic Info.

Model NO. WL-D-880U Max Lifting Height 880mm Max Loading Capacity 350kg Voltage 12V or 24V Net Weight 135kg Gross Weight 185kg Max Working Pressure 14 MPa Drive Mode Electric and Hydraulic Certificate CE Model Wl-D-880-U Transport Package Wooden Case Specification CE Trademark XINDER Origin Changzhou Jiangsu HS Code 8428909090 Production Capacity 1000 Units/Month

Product Description

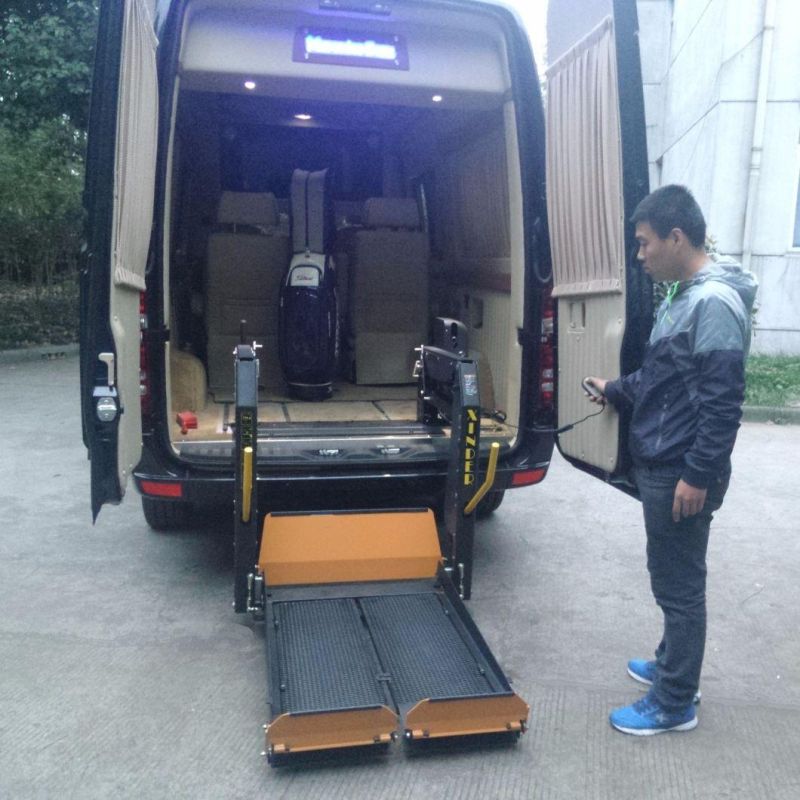

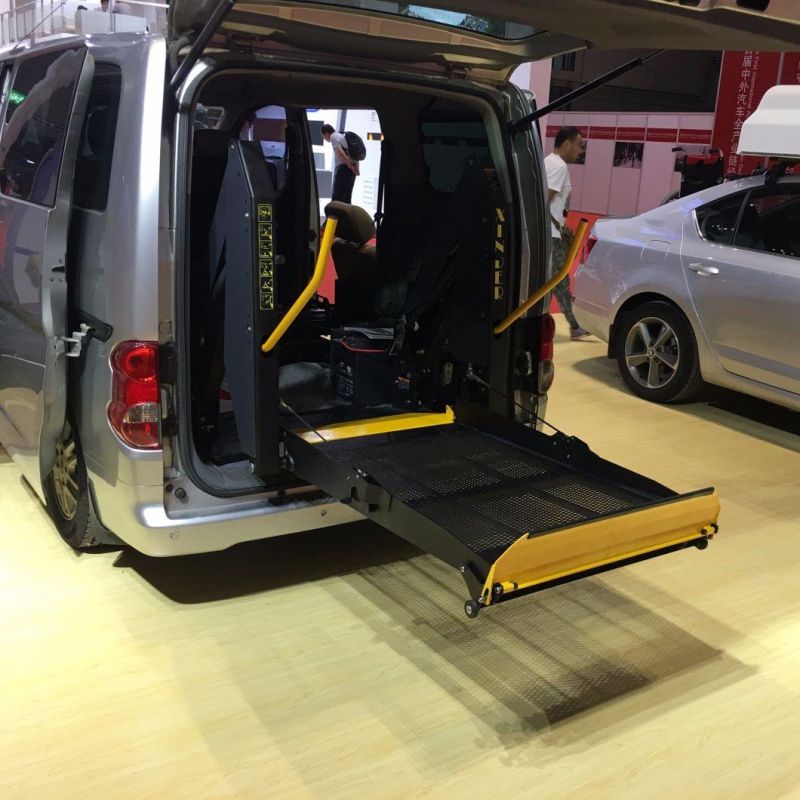

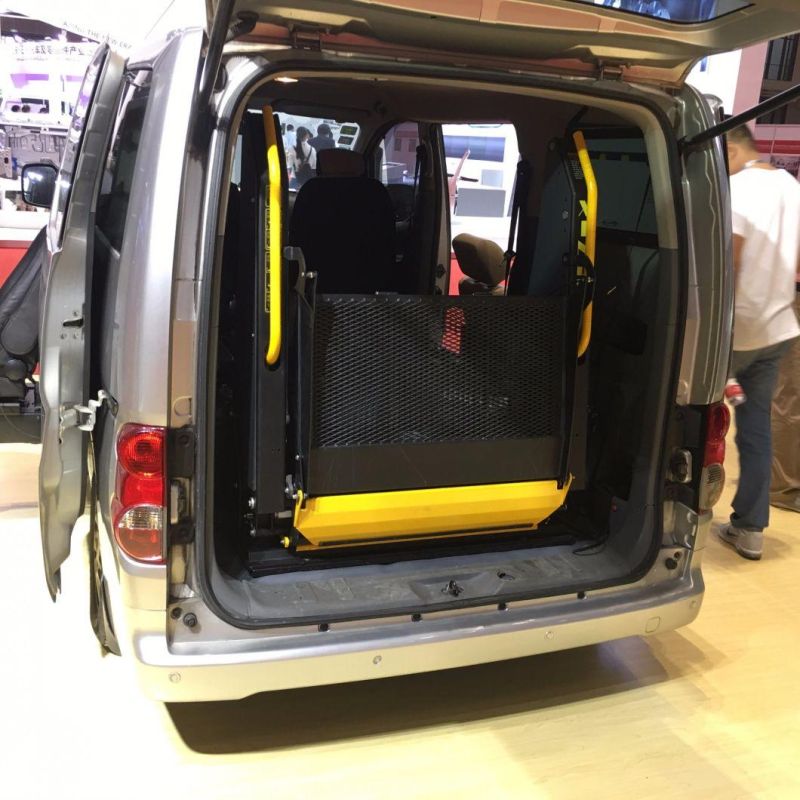

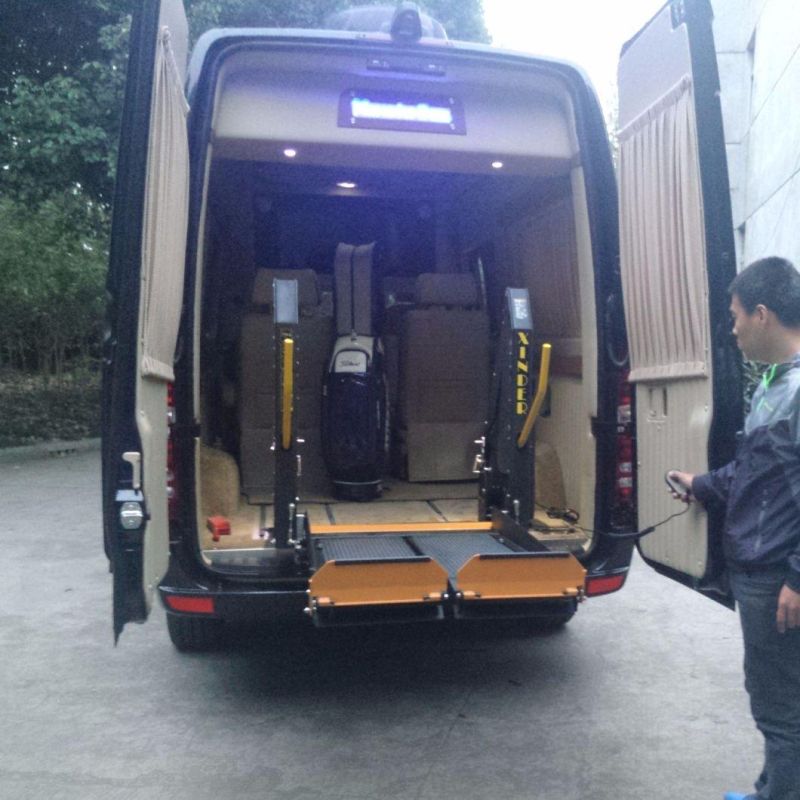

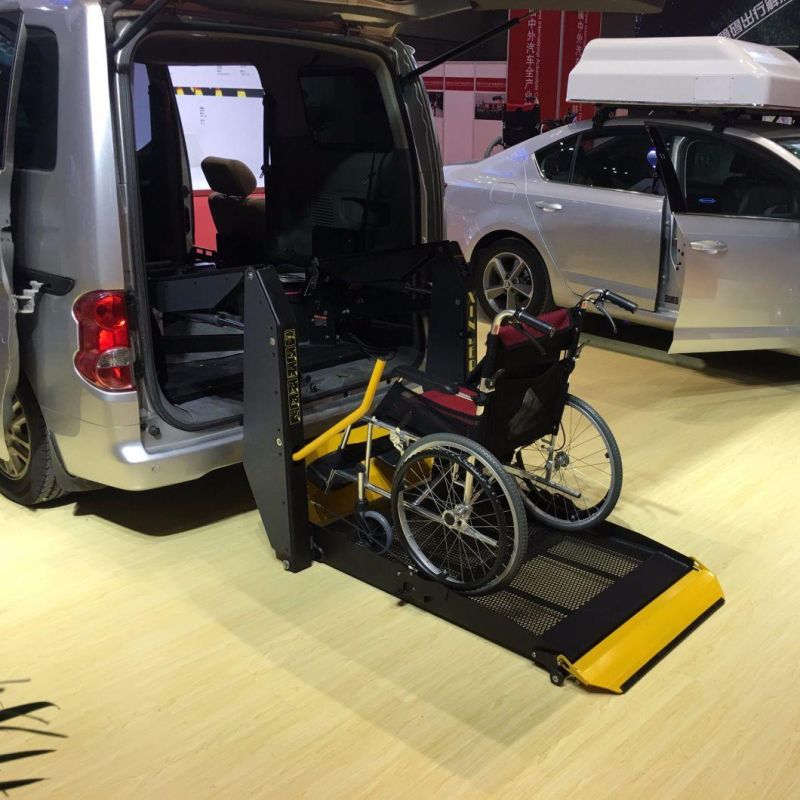

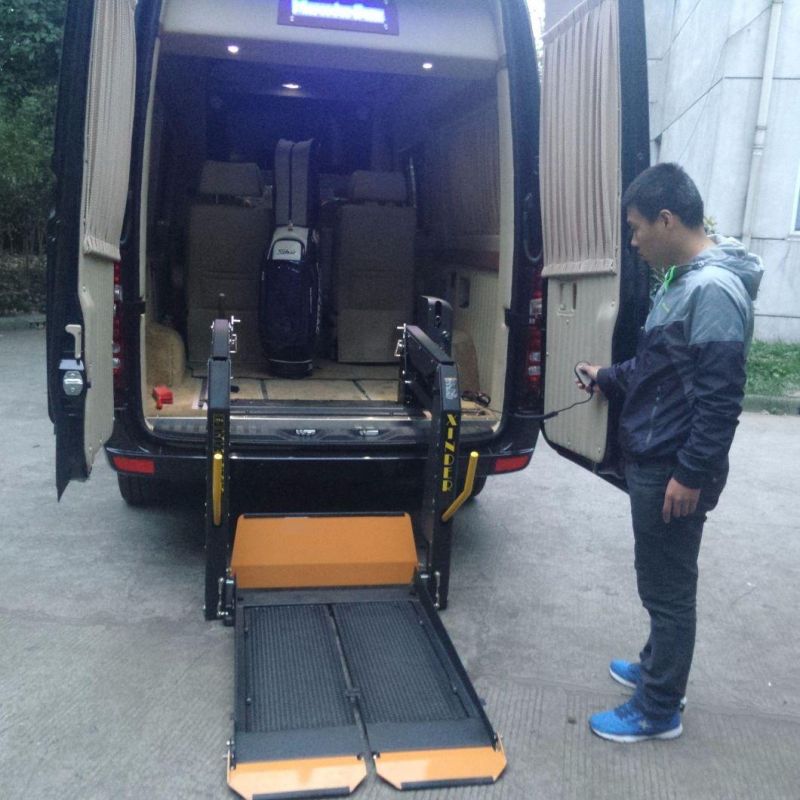

CE Wheelchair Lift with 300 Loading for Van


Introductions:

This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

This wheelchair lift can be installed at the rear door or side door.

Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

This lift is operated by a wired remote control or by your mobilephone.

It also can be operated manually for emergency.

It is CE certified.

Loading capacity is 350kg.



Advantages:

• Solid platform provides additional safety;

• Mechanical auotomatic roll stops;

• Warning sound during working;

• Powerful hydraulic system ensures smooth and stable movements;

• Equip with handrails to offer increased comfort and security;

• Anti-skid platform;

• Manual backup function;

• Self-locking device;

• Can be controlled by your mobilephone (option);



Technical Specifications:

• Volatge: 12Vdc or 24Vdc;

• Power: 800W;

• Loading capacity: 350kg;



Model	WL-D- 880U-1150	WL-D- 880U-1250
Platform Size  (A×B)	720×1140	820×1240
Overall Width (C)	1137 mm	1237 mm
Overall Height (D)	1200 mm	1200 mm
Overall Length (E)	490 mm	490 mm
Max Lifting Height(F)	880 mm	880 mm
Rated Voltage	DC12/24V	DC12/24V
Max Working Pressure	14 MPa	14 MPa
Loading Capacity	350 Kg	350 Kg
Own Weight	135 Kg	135 Kg
