Stage Electric Chain Hoist with Water-Proof
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Stage Used
- Type：Chain Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：HCH
- Certification：CE, TUV
- Condition：New
- Color：Black
- Name：Stage Electric Chain Hoist
- Chain：Fec Chain
- Brake System：Electromagnetic Brake
- Over Load Limit：Available
- Trolley Type：Available
- Chain Bag：Yes
- up-Side Down Lifting：Yes
- Limiter Switch：Yes
- Rainproof：Yes
- Control Type：Indirect
- Transport Package：Wooden Case, Pallets, and So on
- Specification：CE, ISO, TUV
- Trademark：HUGO
- Origin：Shanghai
- HS Code：8425110000
- Production Capacity：60000 PCS,Year
Description
Basic Info.
Model NO. HCH Certification CE, TUV Condition New Color Black Name Stage Electric Chain Hoist Chain Fec Chain Brake System Electromagnetic Brake Over Load Limit Available Trolley Type Available Chain Bag Yes up-Side Down Lifting Yes Limiter Switch Yes Rainproof Yes Control Type Indirect Transport Package Wooden Case, Pallets, and So on Specification CE, ISO, TUV Trademark HUGO Origin Shanghai HS Code 8425110000 Production Capacity 60000 PCS/YearProduct Description

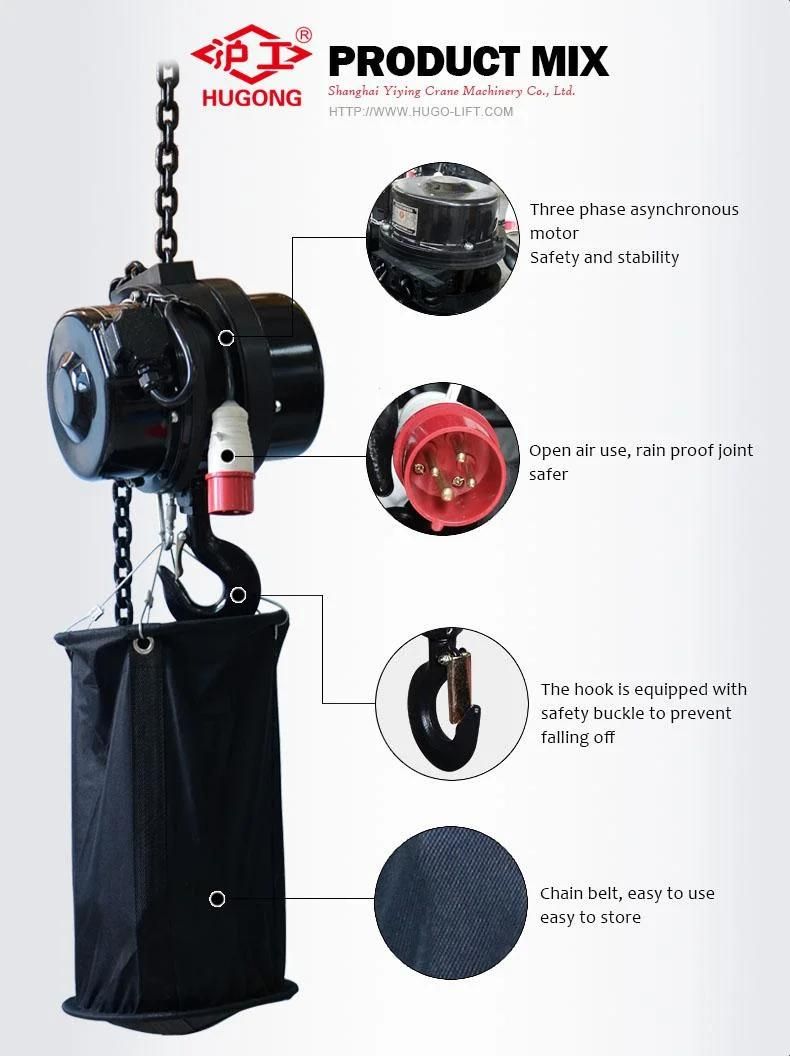

Stage Electric Chain Hoist with Water-proofThe introduction of Stage Electric Chain Hoist with Water-proof
1. Truck load: 500kg, 1000kg, 2000kg
2. Improve speed: 4 m / min, 8 m / min, 16 m / min
3. Lifting speed: 26 meters or 85 feet to a standard height, the concrete can be customized according to customer requirements, up to 40 meters or 131 feet
4. Versatile: Suitable for 230 volts to 460 volts 3-phase
5. Light weight: Tensile steel shell
6. Use efficiency: Lifting its unique five-hole wheel, so that the chain improve balance
7. Reliability: Hoist clutch with overload protection, overload protection in the event of the operator's safety and product from damage
8. Safety: Life maintenance, and provide parts and technical support
This is Shanghai Yiying Crane Machinery Co., Ltd. Our company specialized in machinery for nearly 30 years, electric wire rope hoists, electric chain hoists, manual hoists and lever hoists are in our scope.
If you have any interest, please contact us without any hesitate, we are waiting for you.
| Capacity(KG) | Model | Power(kw) | No. of load Chain (mm) | Lift speed (m/min) | Weight of hoist without load chain (kg) | Weight of Load chain (Kg/m) |
| 500 | HCH 0.5A | 0.42 | 1 | 4 | 30 | 1.1 |
| 500 | HCH 0.5B | 0.86 | 1 | 8 | 48 | 1.1 |
| 500 | HCH 0.5C | 0.83 | 1 | 4 | 48.5 | 1.1 |
| 1000 | HCH 1A | 1.5 | 1 | 8 | 50 | 1.1 |
| 1000 | HCH 1B | 0.86 | 2 | 2 | 52 | 2.2 |
| 2000 | HCH 2A | 1.5 | 2 | 4 | 54 | 2.2 |
| 2000 | HCH 2B | 1.5 | 1 | 16 | 50 | 1.1 |
