• Model NO.：VC-B
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Optional
• Hook：2.0 Manganese Steel
• Usage：Lifting
• Warranty：1 Year
• Material：High Quality Alloy
• Chain Full：2
• Chains：G80
• Payment Term：T,T, L,C
• Loading Port：Shanghai
• Powersource：Hand Chain
• Package：Wooden Case or Carton with Pallet Outside
• Transport Package：Plywood
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai
• HS Code：8425190000
• Production Capacity：2000 Set ,Month

Basic Info.

Model NO. VC-B Certification CE, ISO9001:2000 Condition New Color Optional Hook 2.0 Manganese Steel Usage Lifting Warranty 1 Year Material High Quality Alloy Chain Full 2 Chains G80 Payment Term T/T, L/C Loading Port Shanghai Powersource Hand Chain Package Wooden Case or Carton with Pallet Outside Transport Package Plywood Specification CE, ISO Trademark HUGO Origin Shanghai HS Code 8425190000 Production Capacity 2000 Set /Month

Product Description

                            Manual Hoist Hand Chain Block with Forged Hook

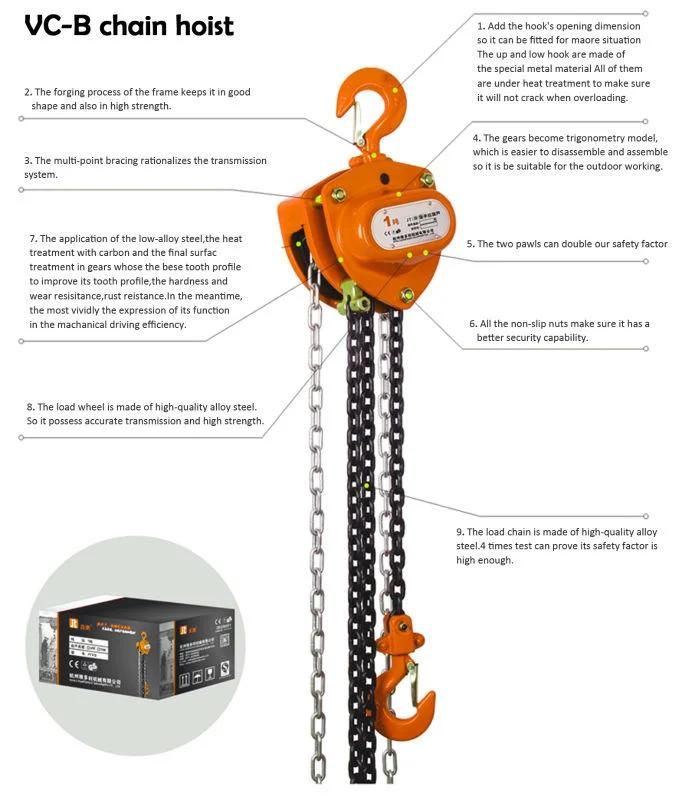

Introduction of VC-B Chain Block

1. VC-B chain hoist Introduction:
VC-B chain hoist series is newly designed with the advanced technology in the world. Besides those traditional characteristics, it is more labor saving and beautiful and it has higher practicability.

2. Features
Condition: New
Test: 100% test before assembling and loading ;Four times test before packing;
Certificate: CE, ISO
Gear: by adopting Japanese technology,they are innovated symmetrical arrayed high speed synchronous gears;
Hook: Forged, 2.0 manganese steel
Chain Grade: 80 ;adopts high strength chain and high precision welding technology,meet ISO international standard;
  fits for gusty;
Capacity T: 0.5-50
Lifting Height M: 2.5-3

Parameters of VC-B Chain Block

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9
Dimension(mm) A	129	149.5	157.5	161.5	151.5	163	207	215	350	406
B	136	145	164.5	187	164.5	211	398	650	680	962
C	270	317	399	414	465	636	798	890	1380	2578
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

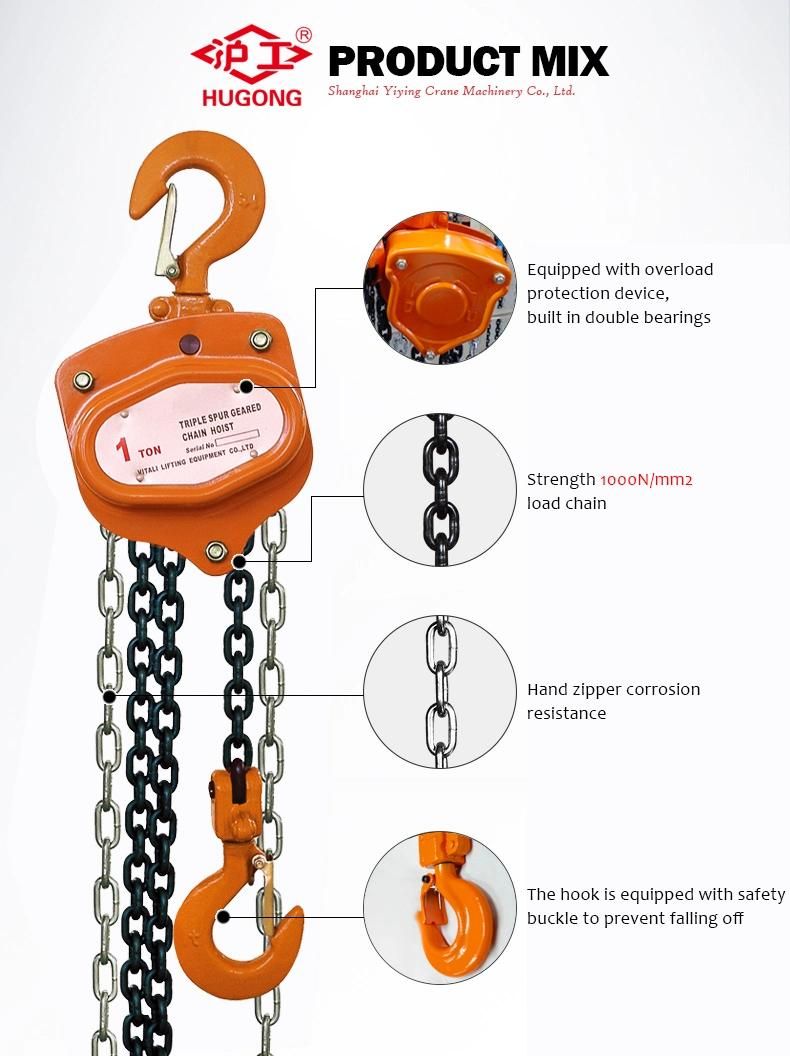

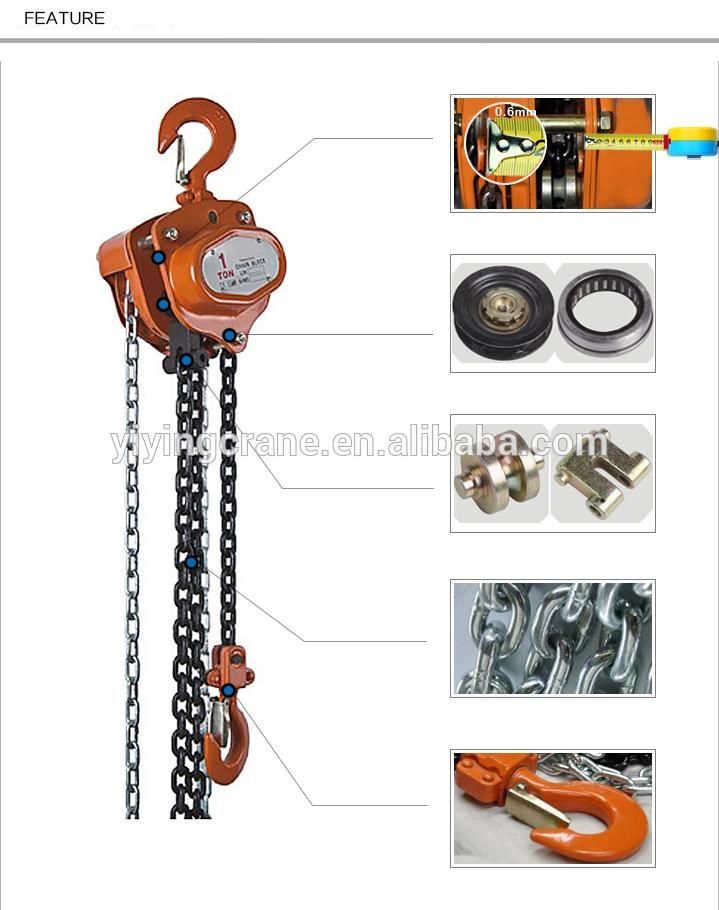

Details of Product Pics

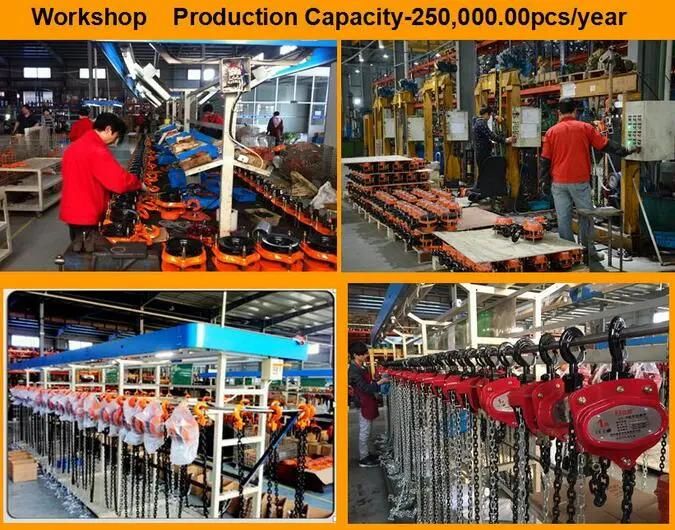

Factroy View:



Our Service & Certificate
