Chain Block Lever Hoist with G80 Chain
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Tower Crane, Single Grinder Crane, Lifting Platform
- Type：Lever Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
Base Info
- Model NO.：VA
- Condition：New
- Color：Orange
- Hook：2.0 Manganese Steel
- Chain：G80
- Payment Term：T,T, L,C
- Loading Port：Shanghai
- Warranty：1 Year
- Delivery Time：10days
- Transport Package：Wooden Box
- Specification：ISO,CE
- Trademark：hugong, yiying
- Origin：Shanghai
- HS Code：842519000
- Production Capacity：50, 000PCS,Year
Description
Basic Info.
Model NO. VA Condition New Color Orange Hook 2.0 Manganese Steel Chain G80 Payment Term T/T, L/C Loading Port Shanghai Warranty 1 Year Delivery Time 10days Transport Package Wooden Box Specification ISO/CE Trademark hugong, yiying Origin Shanghai HS Code 842519000 Production Capacity 50, 000PCS/YearProduct Description
Chain Block Lever Hoist with G80 Chain
Introduction of Lever Hoist
VA series lever hoist is a kind of portable and versatile hand-operated loading and pulling appliance, which is capable of being applied in electricity, mines, ship buildings, construction sites, transports, postage and telecommunication for installing equipment, lifting goods, pulling mechanical parts, bulk strapping and fastening, tightening fittings of wires, assembling and welding etc. Lever hoist is exceptionally convenient for working in narrow places, outdoor aloft work and pulling from different angles.
Lever hoist
1) Capacity: 0.5-50T
2) Standard lift: 2.5-3m
3) running testload: 0.75-62 t
4) packing: Carton box
Shanghai Yiying Crane machinery Co., ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it relieved.

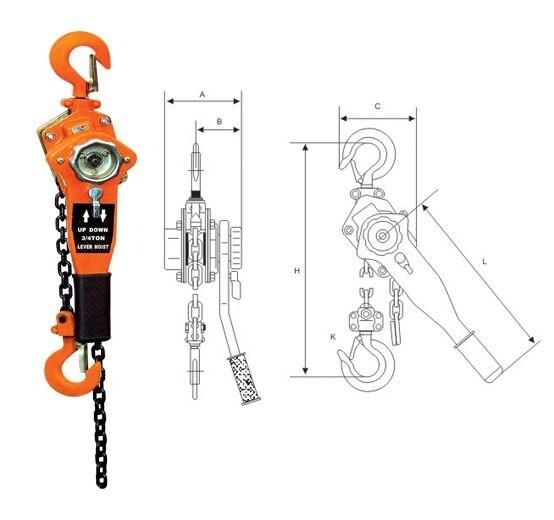

Parameters of VA Lever Chain Block
Model | VA0.25 | VA0.5 | VA0.75 | VA1 | VA1.5 | VA2 | VA3 | VA6 |
Capacity t | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 |
Standard Lift m | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Running test load t | 0.375 | 0.75 | 1.13 | 1.5 | 2.25 | 3 | 4.5 | 9 |
Min distance between hooks | 325 | 335 | 380 | 380 | 480 | 620 | ||
Effort required to lift max load N | 140 | 140 | 220 | 220 | 320 | 3404 | ||
Diameter of load chain mm | 4 | 5 | 6 | 6 | 8 | 8 | 10 | 10 |
Net weight kg | 7 | 7.5 | 11 | 12 | 21 | 31 | ||
Extra weight per meter of extra lift cm | 0.92 | 0.92 | 1.6 | 1.6 | 2.4 | 4.8 |

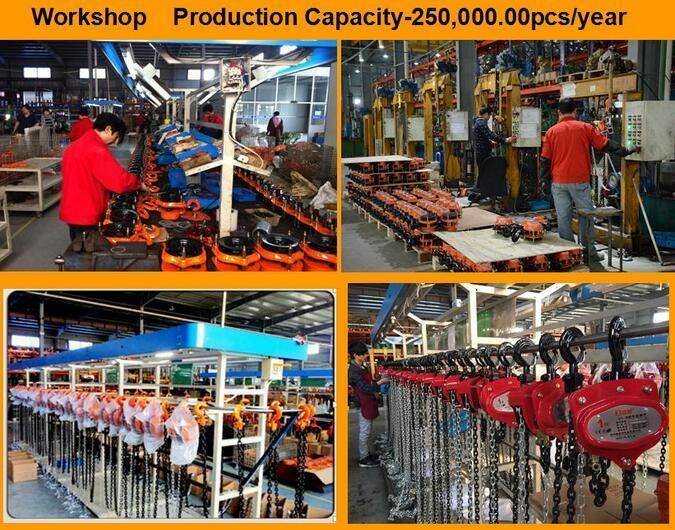

Workshop View:
