CE ISO Marked 1000kg 2000kg 4000kg Lbs AC Powered Electric Ladder Scissor Table Jack

Jinan PLK Machinery Co., Ltd.
  • After-sales Service：Free Parts Replacement; Life Technical Support
  • Warranty：1 Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Custom
  • Moves：Stationary

Base Info

  • Model NO.：HD
  • Driven Type：Hydraulic
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：GS, CE, RoHS, ISO 9001
  • Voltage：Local
  • Color：Customized
  • Transport Package：Wooden Box
  • Specification：1300*820*2000mm 320kg
  • Trademark：PLK LIFT
  • Origin：China(Mainland)
  • HS Code：8428909090
  • Production Capacity：200 Set,Month

Description

as per your local standardNet Weightkg210295520CE ISO Marked 1000kg 2000kg 4000kg Lbs AC Powered Electric Ladder Scissor Table Jack
CE ISO Marked 1000kg 2000kg 4000kg Lbs AC Powered Electric Ladder Scissor Table Jack

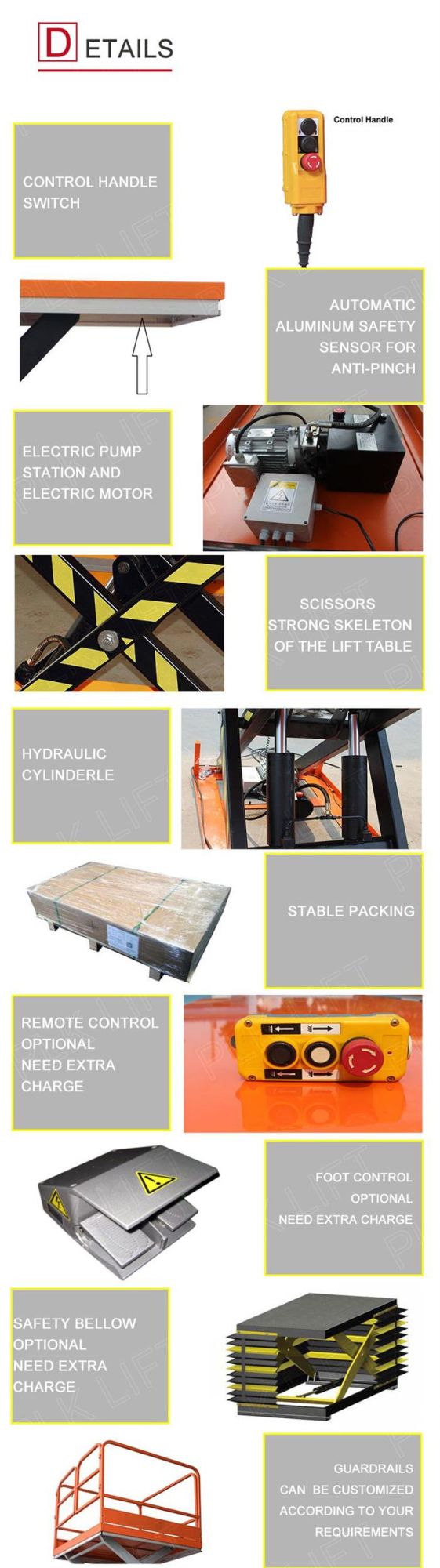

Features & Advantages:
  1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
  2. High quality pump station makes scissor lift table lift and fall very stably.
  3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolongs life span.
  4. Removable lifting eye to help lift the table and install.
  5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
  6. Pressure relief valve prevents overload operation; Flow control valve makes descending speed adjustable.
  7. Equipped with aluminum anti-pinch safety sensor underneath the platform while descending.
  8. Up to American standard ANSI/ASME and European standard EN1570
  9. Safe clearance between scissors to prevent wear and tear during operation.
  10. Simple structure makes it much easier to operate and maintain.
  11. Stops at the accurate position.
Safety Precautions:
  1. Explosion-proof valves: protect hydraulic pipe, anti hydraulic pipe rupture.
  2. Spillover valve: It can prevent high pressure when the machine moves up, adjusting the pressure.
  3. Emergency decline valve: it can go down when you meet an emergency or the power is off.
  4. Overload protection locking device: in case of dangerous overload.
  5. Anti-dropping device: Prevent falling of platform.
  6. Automatic aluminum safety sensor: lift platform will stop automatically when coming across barriers.



CE ISO Marked 1000kg 2000kg 4000kg Lbs AC Powered Electric Ladder Scissor Table Jack

CE ISO Marked 1000kg 2000kg 4000kg Lbs AC Powered Electric Ladder Scissor Table JackSend an inquiry to chat immediately with friendly salesperson, and get best possible quote..
