• Model NO.：HU
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Material：Steel
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Specification：1450*985*100
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：5000

Basic Info.

Model NO. HU Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Material Steel Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description

U Shaped Scissor Lift Mini Portable Scissor Lift
U Shaped Scissor Lifts are high-quality hydraulic-powered with loading capacities ranging from 600kg to 1,500kg. Maximum
height can reach 860mm.

Compact and efficient, the lift is ideal for work done in limited space. It's equipped with safety valves to prevent dangers from happening.
We also accept customized orders to better suit the needs of customers.


Data Sheet

Model	Load Capacity(kg)	Max. Platform Height (mm)	Min. Platform Height (mm)	Platform Size (mm)	Size A (mm)	Size B (mm)	Size C (mm)	Base Size (mm)	Lifting time(s)	Voltage (v)	Net weight (KG)
HU600	600	860	85	1450x985	200	1080	585	1335x947	25-35	customized	207
HU1000	1000	860	85	1450x1140	280	1080	580	1335x947	25-35	customized	280
HU1500	1500	860	105	1600x1180	300	1194	580	1335x947	30-40	customized	380

Product Show

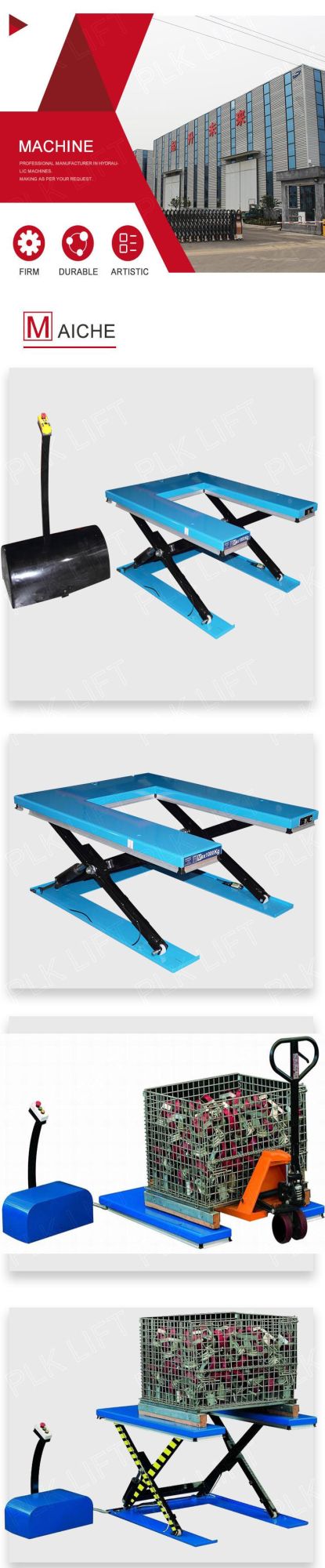

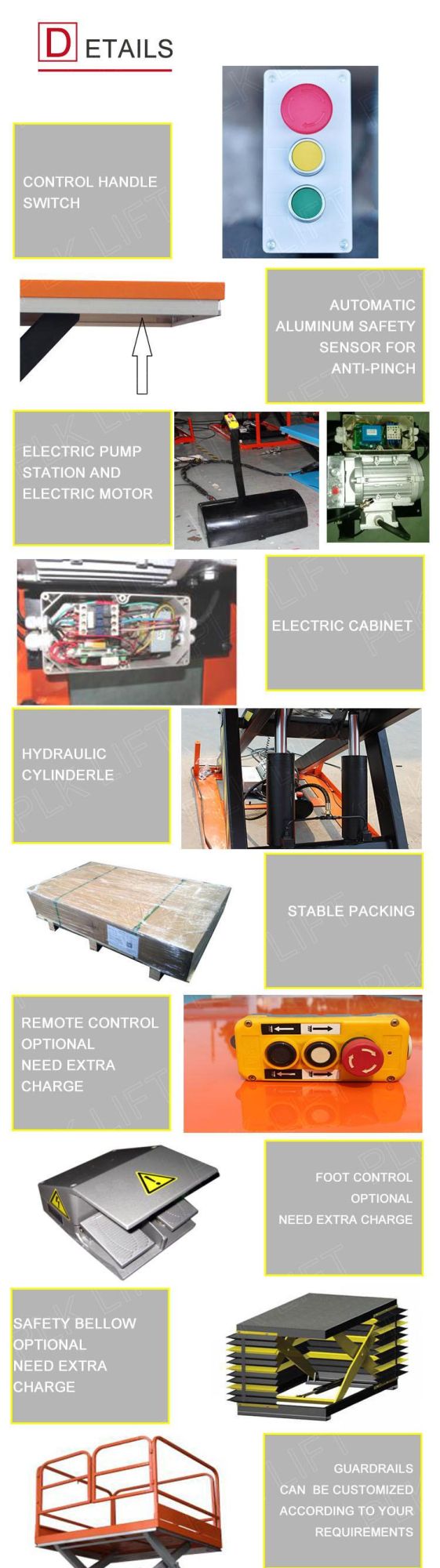

Details Show

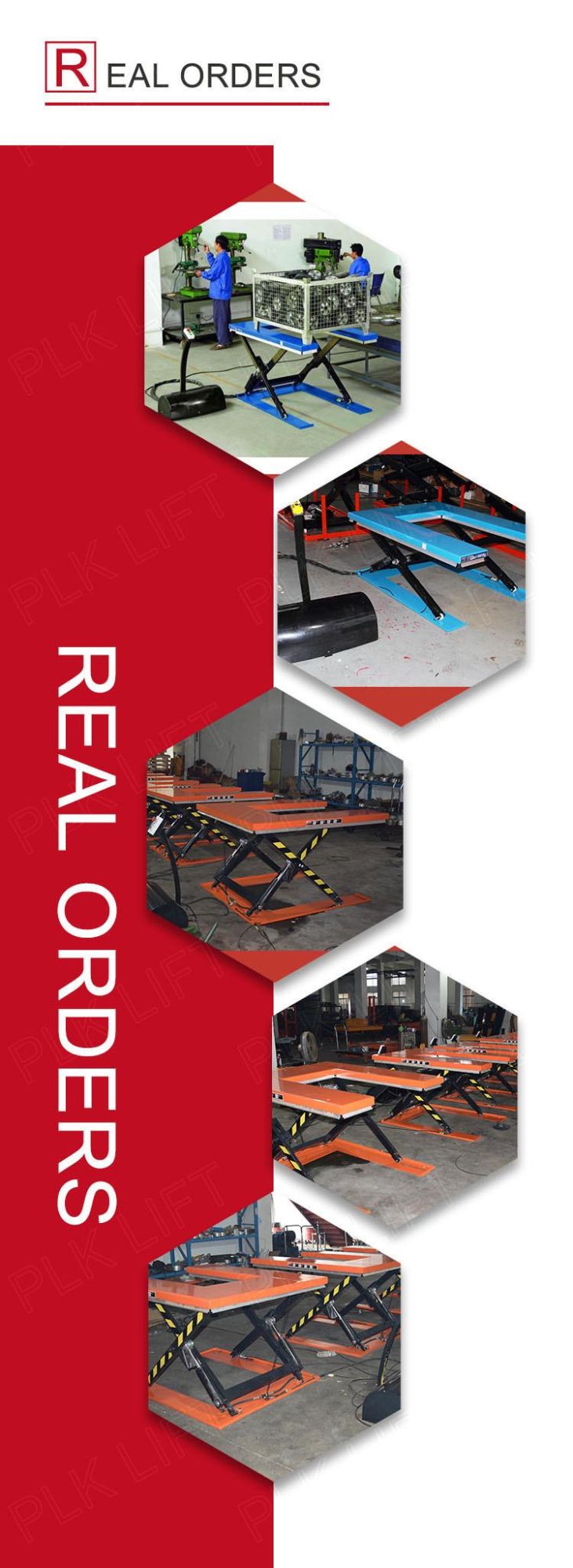

Bulk Order Show


Factory Show
