500kg Manual Lever Hoist with Safety Hook
Shanghai Yiying Crane Machinery Co., Ltd.- Type：Lever Hoist
- Sling Type：Chain
- Lift Speed：2~8m,min
- Maximum Lifting Height：>20m
- Chain Falls：1
- Certification：CE
Base Info
- Model NO.：VA
- Condition：New
- Color：Optional
- Hook：Forged
- Chain：80 Grade
- Warranty：1 Year
- Max Lifting Height：12 M
- Request Lifting Height and Weight：Available
- Payment Term：T,T
- Delivery Time：10 Days After Payment
- Loading Port：Shanghai
- Cover：Metal
- Transport Package：Wooden Box
- Specification：ISO,CE,SGS
- Trademark：HUGO
- Origin：Shanghai
- HS Code：842519000
- Production Capacity：5000 Set,Month
Description
Model
0.75Ton
1.5Ton
3Ton
6Ton
Capacity t
0.75
1.5
3
6
Standard Lift m
1.5
1.5
1.5
1.5
Running test load t
9.2
18.4
36.8
73.5
Effort required to lift max load N
148
216
336
345
Load lift diameter mm
6.3
7.1
9
9
Net weight kg
6.6
11.65
21.1
23.7
Dimensions mm
A
155
170
198
198
B
128
147
182
230
C
310
350
470
590
D
240
365
365
365
G
28
36
47
49

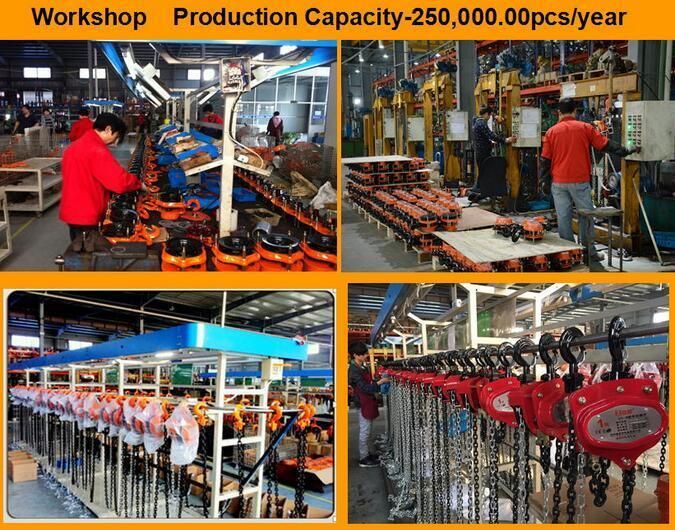

Factory view:
