• Model NO.：VC-B
• Certification：CE
• Condition：New
• Color：Orange
• Hook：Forged
• Chain：80 Grade
• Max Lifting Height：3 M
• Max Lifting Weight：50 T
• Warranty：1 Year
• Loading Port：Shanghai
• Delivery Time：15 Days
• Products Name：Hand Chain Pulley Block Manaul Chain Hoist (Vc-B)
• Brand：Hugong
• Package：Wooden Case and Pallet
• Transport Package：Colour Paper Case or Wooden Case
• Specification：CE, ISO
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：1000000PCS,Year

Basic Info.

Model NO. VC-B Certification CE Condition New Color Orange Hook Forged Chain 80 Grade Max Lifting Height 3 M Max Lifting Weight 50 T Warranty 1 Year Loading Port Shanghai Delivery Time 15 Days Products Name Hand Chain Pulley Block Manaul Chain Hoist (Vc-B) Brand Hugong Package Wooden Case and Pallet Transport Package Colour Paper Case or Wooden Case Specification CE, ISO Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 1000000PCS/Year

Product Description

Hand Chain Pulley Block Manaul Chain Hoist (VC-B)
VC-B chain hoist Introduction:

Capacity: 0.5T-20T chain hoist; Lifting height: 2.5-3 m chain hoist, other height need booking produce.

Automatic double-pawl braking system

Double-cover protect

1. Safe and reliable in operation with minimum maintenance

2. High efficiency in mechanism, labor saving

3. Light in weight and carry easily

4. Attractive appearance, small in size

5. High durability

Model	VC-B 0.5	VC-B 1	VC-B 1.5	VC-B 2	VC-B 3	VC-B 5	VC-B 10	VC-B 20	VC-B 30	VC-B 50
Capacity(t)	0.5	1	1.5	2	3	5	10	20	30	50
Standard lift(m)	2.5	2.5	2.5	3	3	3	3	3	3	3
Running test load(t)	0.75	1.5	2.25	3	4.5	7.5	15	30	45	75
No.of falls of load chain	1	1	1	1	2	2	4	8	12	24
Load chain diameter(mm)	5	6.3	7.1	8	7.1	9	9	9	9	9
Dimension(mm) A	129	151	150.5	161.5	150.5	161.5	207	215	350	410
B	136	145	164.5	187	164.5	211	398	650	680	965
C	270	317	399	414	465	636	798	890	1380	1950
Net weight(kg)	8.4	12	16.2	20	24	41	79	193	220	1092
Packing(L*W*H)(cm)	22*14*15	25*19*16	33*24*16	33*24*19	34.5*24*16	40*30*19	48*42*18.5	78*68*20	85*67*30	110*100*130

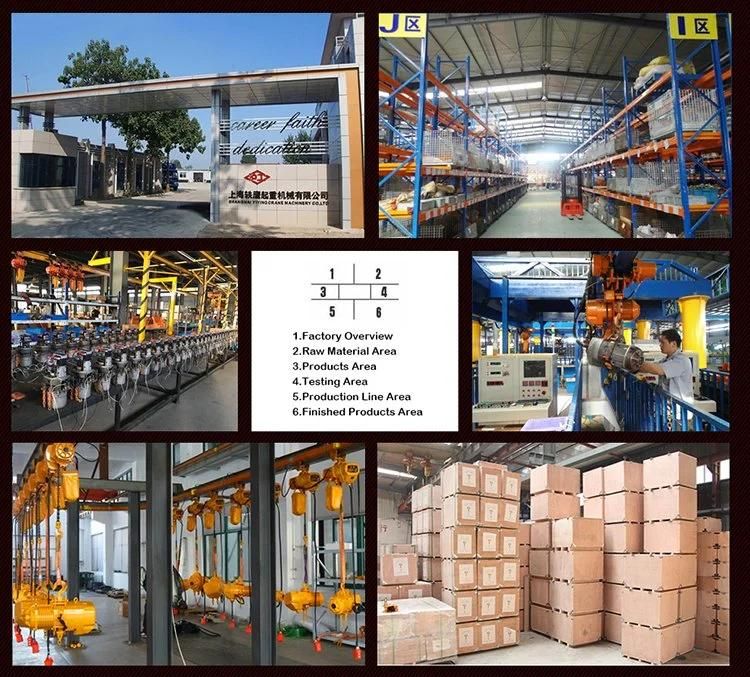

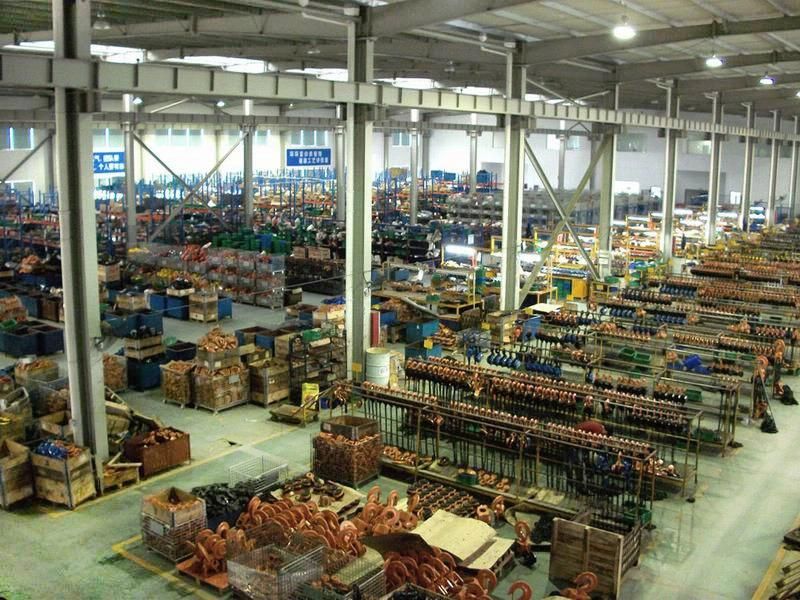

Compamy Information

Shanghai Yiying Crane Machinery Co., Ltd. Was established in 1992, which specializing in designing and manufacturing Manual Chain Hoist, Lever Hoist, Electric Hoists, Forklift and other lifting products.

1. Annual production in 5 million units production area 3600 square meters;

2. 4 production bases in HangZhou, Chongqing, Jiangsu and Hebei.

3. 120 production lines;

4. More than 500 employees;

5. Annual export value over 50 million RMB.

Why Choose Us

BRAND ADVANTAGE

1. 50 years brand history; (Trademark registration number; 1975110)

2. TOP5 lifting equipment supplier in China;

3. One of the first batch of enterprises certified by Alibaba;

4. Brand customers: CNPC, China Railway Group and so on



TECHNOLOGY ADVANTAGES

1. Focuse on the production and R&D of lifting equipment for about 30 years;

2. Professional independent research and development team, recognized by domestic and foreign customers.

3. Company was honored by the givernment as a High-Tech enterprise in 2010



Service Advantage

1. 7D*24H after-sales service,

2. More than 100 professional service staff.



The products of our company have exported to over 80 countries and regions,including EUROPE,USA,AUSTRALIA and SOUTHEAST ASIA,etc.

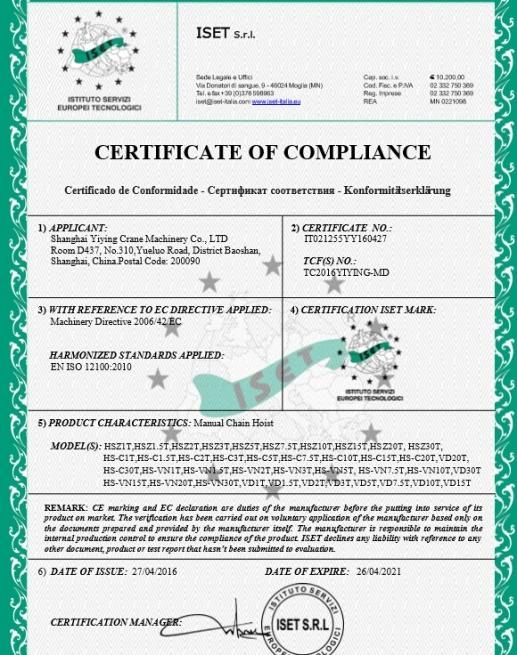

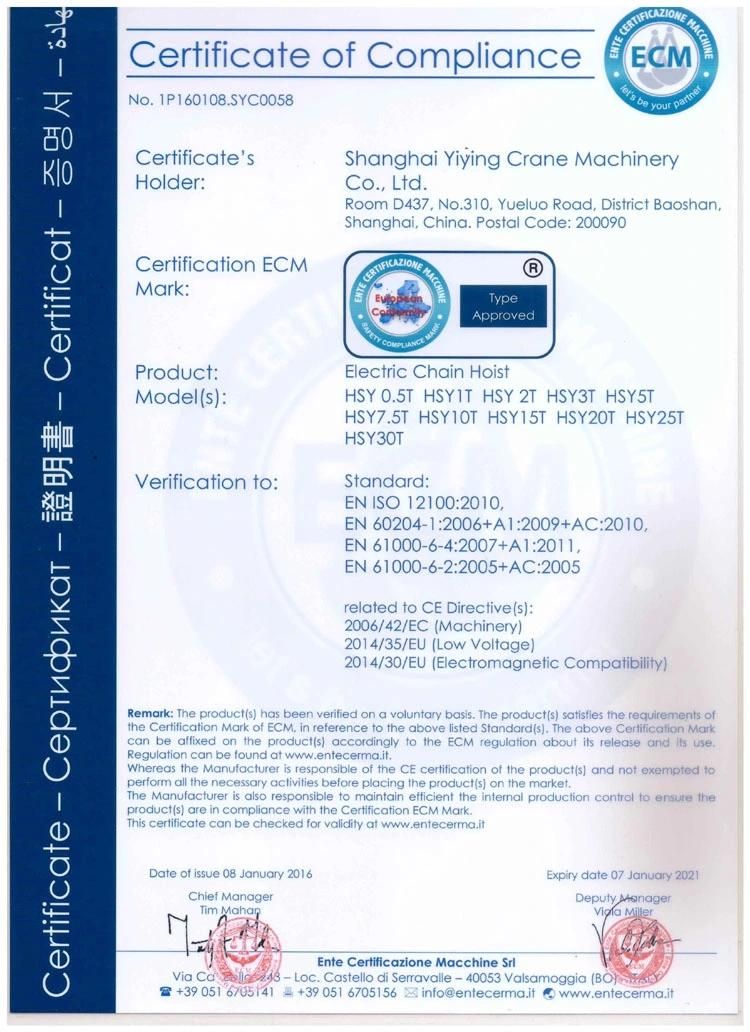

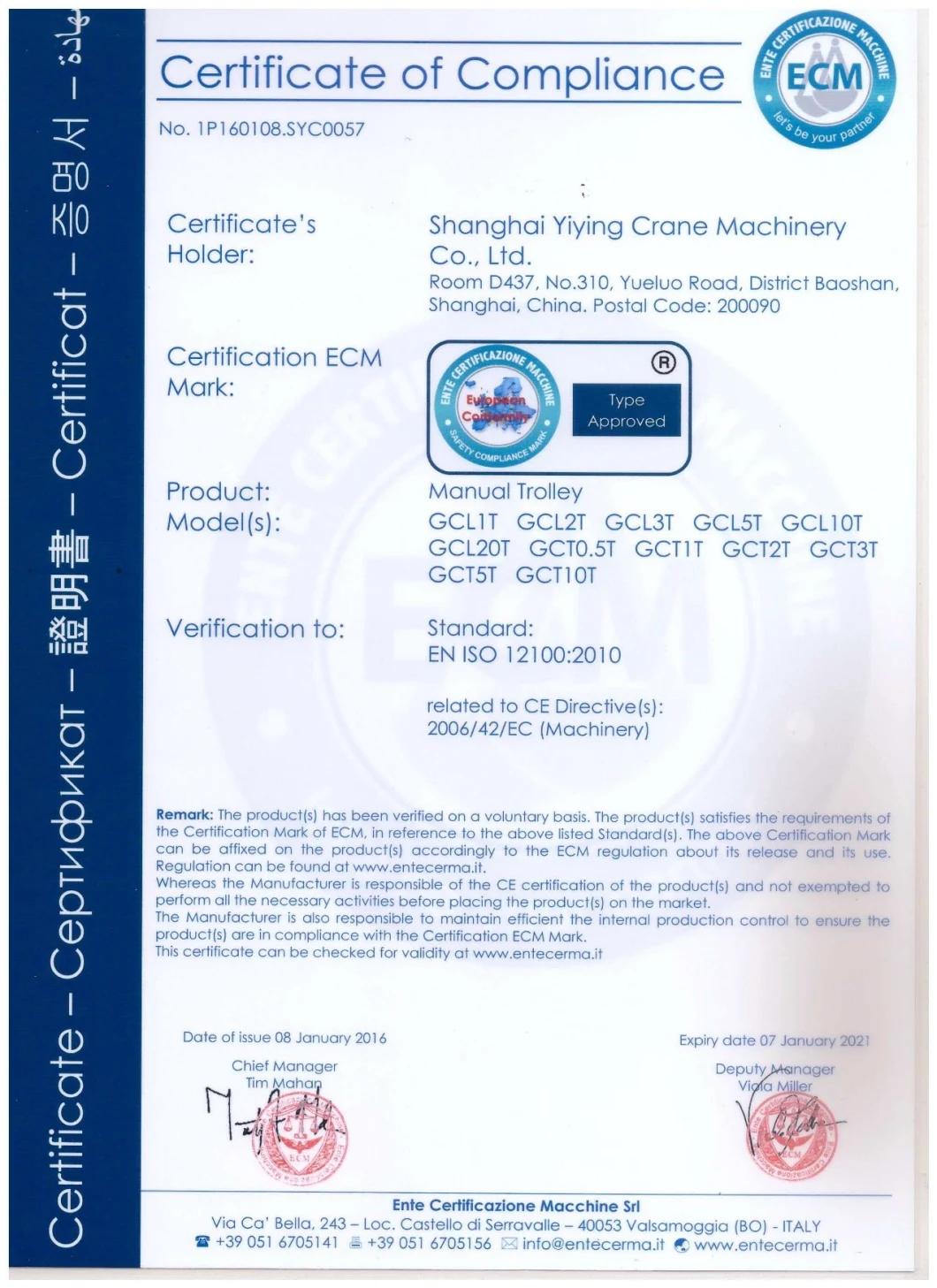

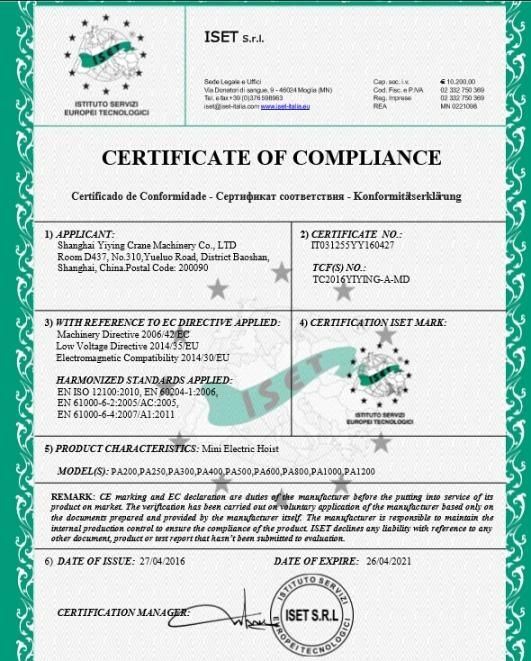

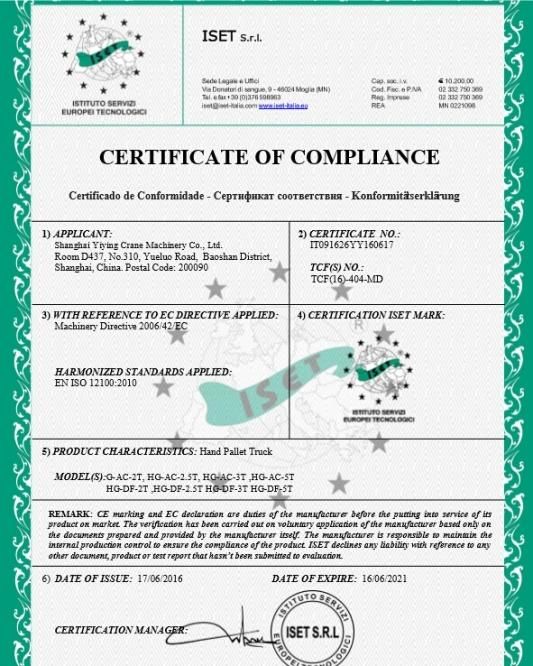

Certification

RIGOROUS QUALITY CONTROL

1. Certificate:CE,SGS,ISO:9001,BV

2. The third-party inspection for quality testing is accepted

3. Product qualification rate more than 98%

4. In accordance with the requirements of Environmental Protection Administration,

    the quality and delivery can be guaranteed
