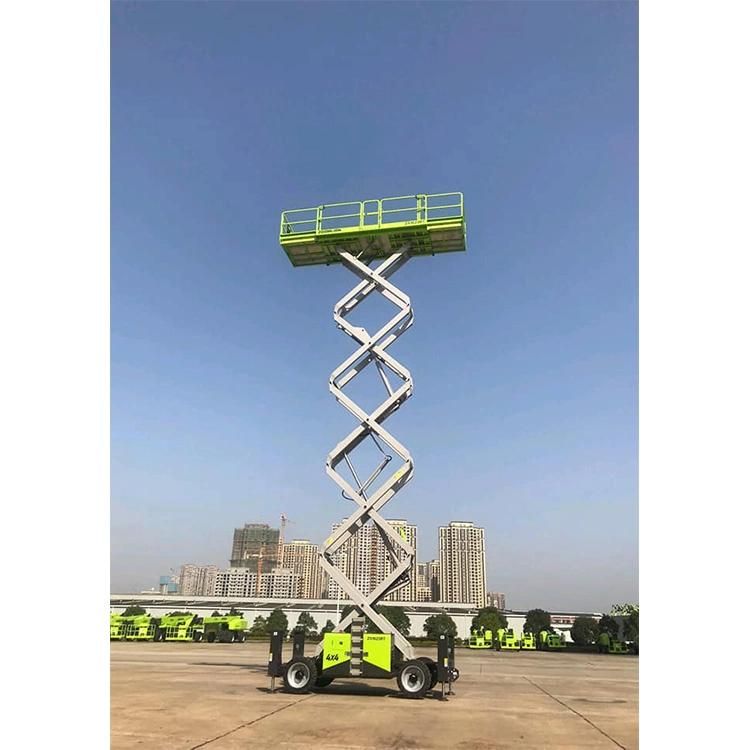

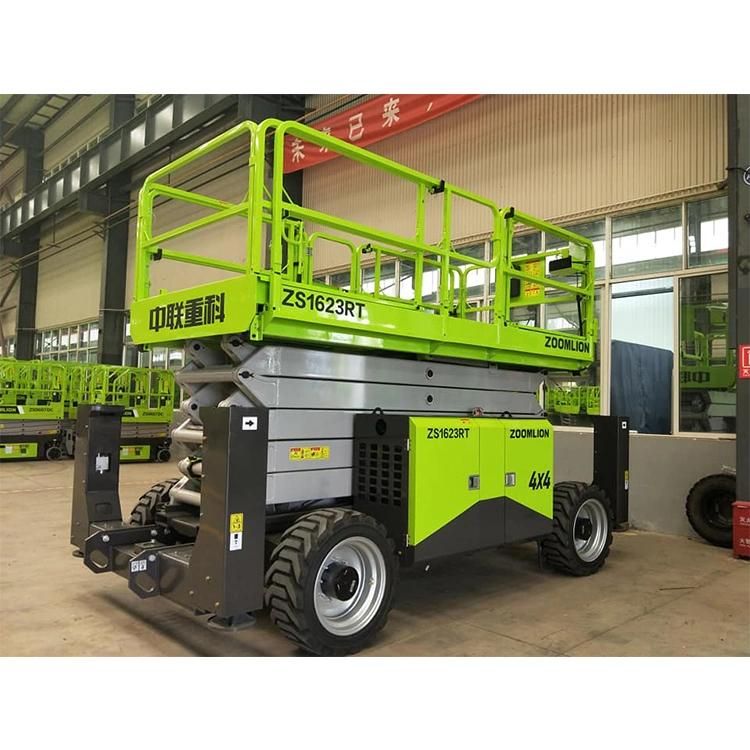

• Model NO.：ZS1623RT
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Power：36kw
• Table Size：3.98*1.83m
• Work Height：18m
• Wheelbase：2.9m
• Capacity on Deck Extension：230kg
• Platform Capacity：680kg
• Gradeability：40%
• Drive：4WD
• Transport Package：Nude Package
• Specification：4.88*2.3*2.47m
• Trademark：zoomlion
• Origin：Anhui, China
• HS Code：8427109000
• Production Capacity：1000units,Year

ZS1623RT MetricImperialSizeWork Height18m59ftA Platform Height-Elevated16m52ft 6inB Platform Height-Stowed2.03m6ft 8inC Platform Dimension (Length)3.98m13ft 1inD Platform Dimension (Width)1.83m6ftPlatform Extension1.3m4ft 3inOverall Height (Rails Up)3.16m10ft 4inE Overall Height (Rails Down)2.47m8ft 1inF Overall Length4.88m16ftG Overall Width2.3m7ft 7inH Wheelbase2.9m9ft 6inI Ground Clearance0.275m11inPerformancePlatform Capacity680kg1500lbCapacity on Deck Extension230kg510lbDrive Height9m29ft 6inMax. Number of Workers4Drive Speed (Stowed)6.5km/h4mphDrive Speed (Raised)0.5km/h0.3mphTurning Radius (Inside)2.75m9ftTurining Radius (Outside)5.8m19ftUp/Down Time60/65s60/65sGradeability40%Max. Working Slope (Lateral/Vertical)2°/3°Drive4WDBrake315/55 D20 Foam-filled TiresPowerEngineKubota v2403-M-DIEngine Power36kw/2600rpmFuel Tank Capacity105L27.7 (us gal)Diesel Tank100L26.4 (us gal)WeightGross8650kg19070lb HighlightsReliable auto-leveling functionBilateral swing-out trays, simple to service and effective to control noiseSmart telematic control interface with self-diagnostic monitoring capability   FeaturesStandard Features Proportional controlsAutobrake systemHornAll motion alarmEmergency descent systemHour meterFold-down handrailsEmergency stop buttonExtension deck (bidirectional)Flashing amber beaconOn-board diagnosticScissor maintenance propSelf-closing entry gateOver tilt protective system Accessories & Options Platform work lightsLoad sensing systemAC power to platformAirline to platform
