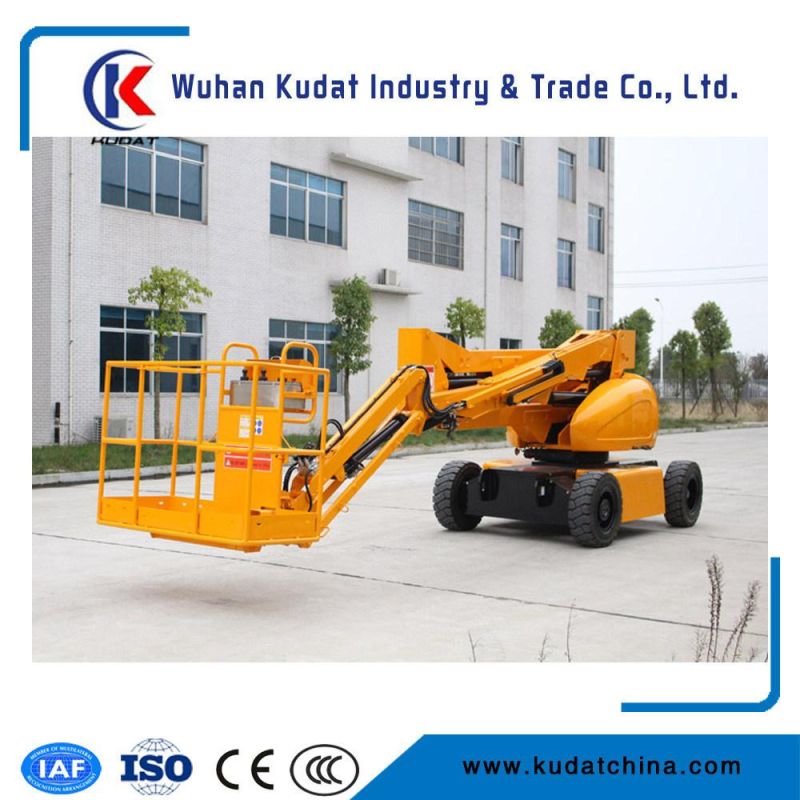

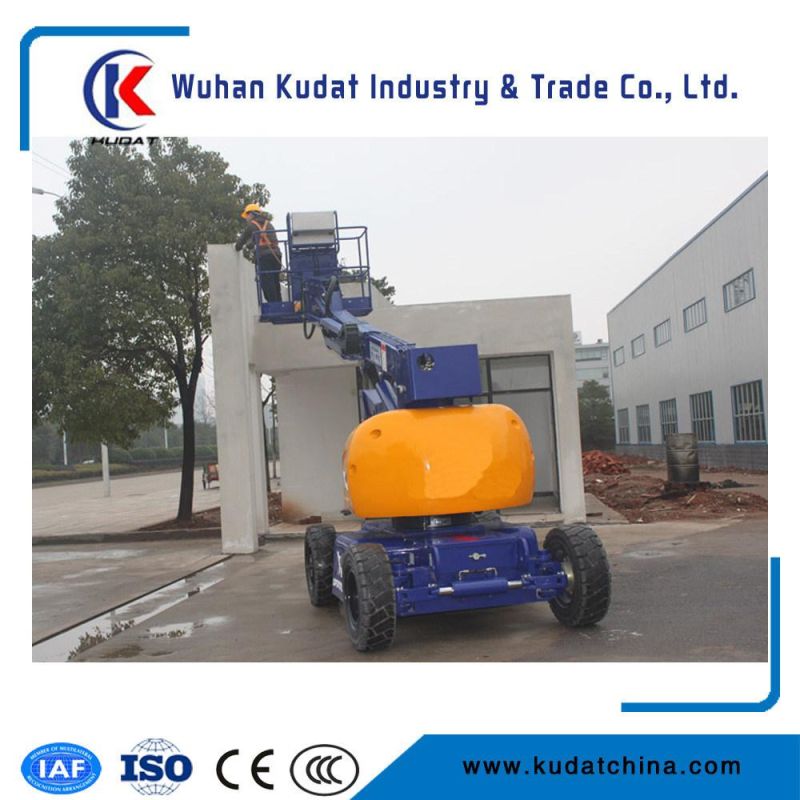

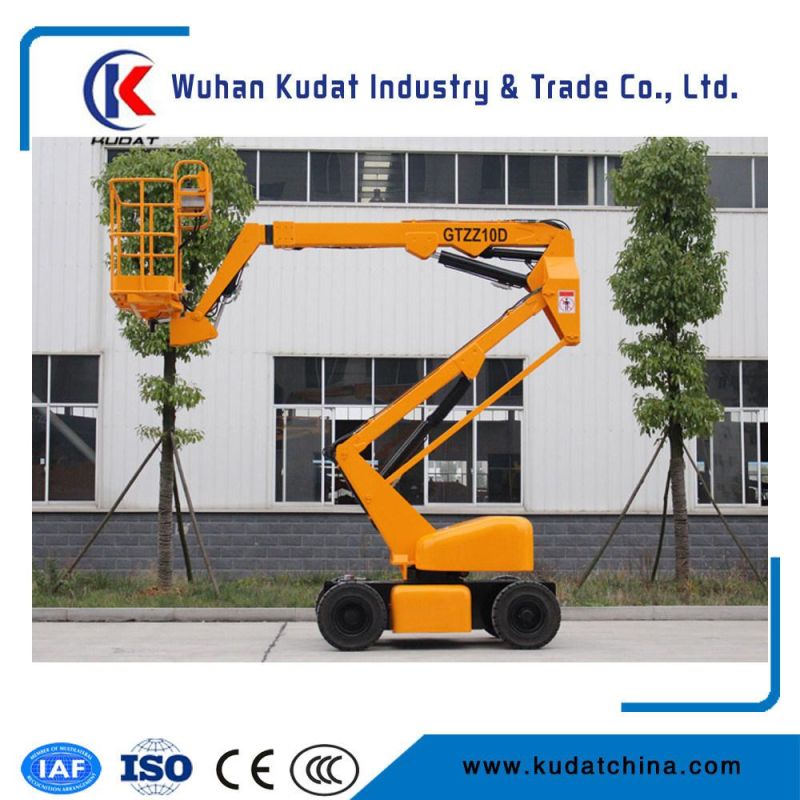

• Model NO.：GTZZ10D
• Feature：Aerial Work Platform
• Certification：CE, ISO 9001
• Structure：Aerial Work Platform
• Installation：Aerial Work Platform
• Type of Work：Aerial Work Platform
• Working Height：12m
• Lift Capacity：Kgs
• Hydraulic Oil Tank Capacity：70L
• Travel Speed：4km,H
• Grade Ability：20%
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100PCS,Month

Item

GTZZ10D

Working height maximum

11.75m

Platform height maximum

10.05m

Platform  Length

0.76m

Platform  Width

1.53m

Height-stowed

1.95m

Length-stowed

5.33m

Width

1.5m

Wheel Base

1.65m

Ground clearance center

200mm

Horizontal reach maximum

6.5m

Lift capacity

200kg

Turning radius (outside)

3.8m

Turntable Swing

360°continuous

Speed of Turntable Swing

0~1.5rpm

Leveling mode

Automatic

Platform rotation

180°

Tire

590*195 rubber tire

Hydraulic oil tank capacity

70L

Weight

5300kg

Travel speed(stowed)

        4km/h

Travel speed(raised or extend )

        0.8km/h

Grade ability

20%

Drive and turn mode

4×2×2

Battery

6×8/210Ah TROJAN
