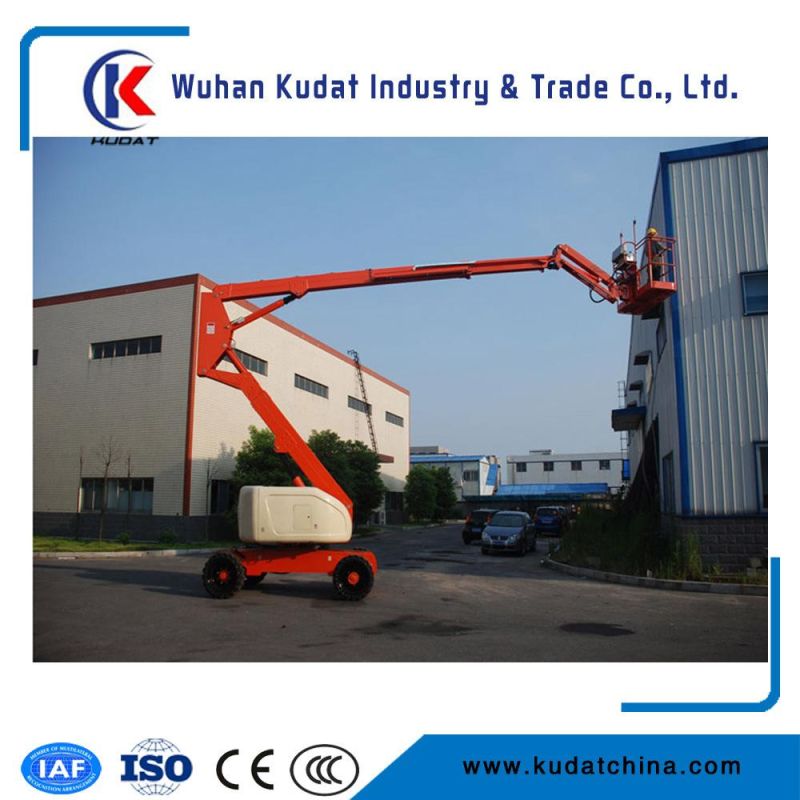

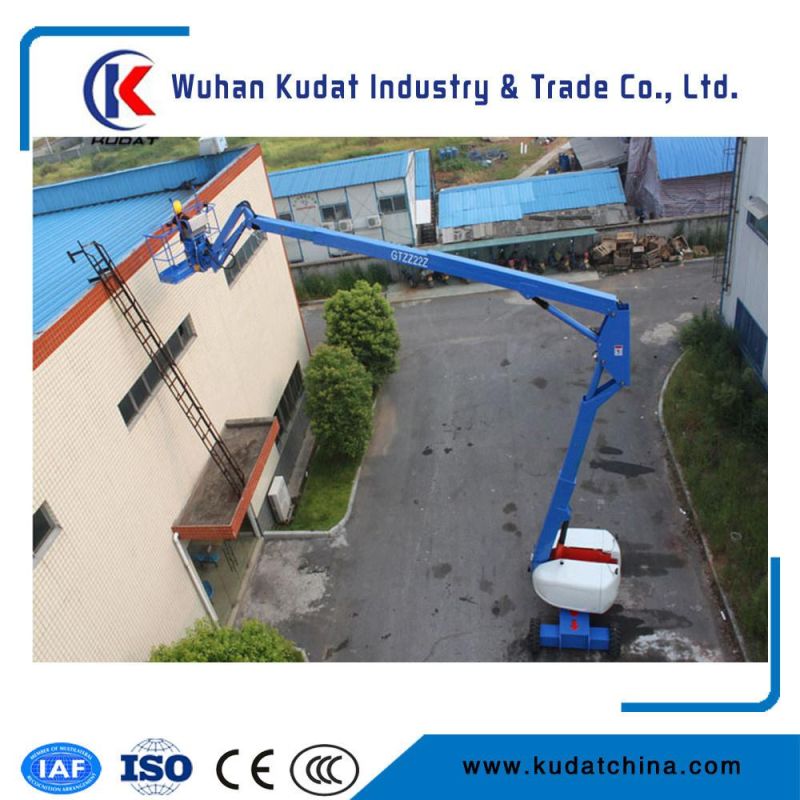

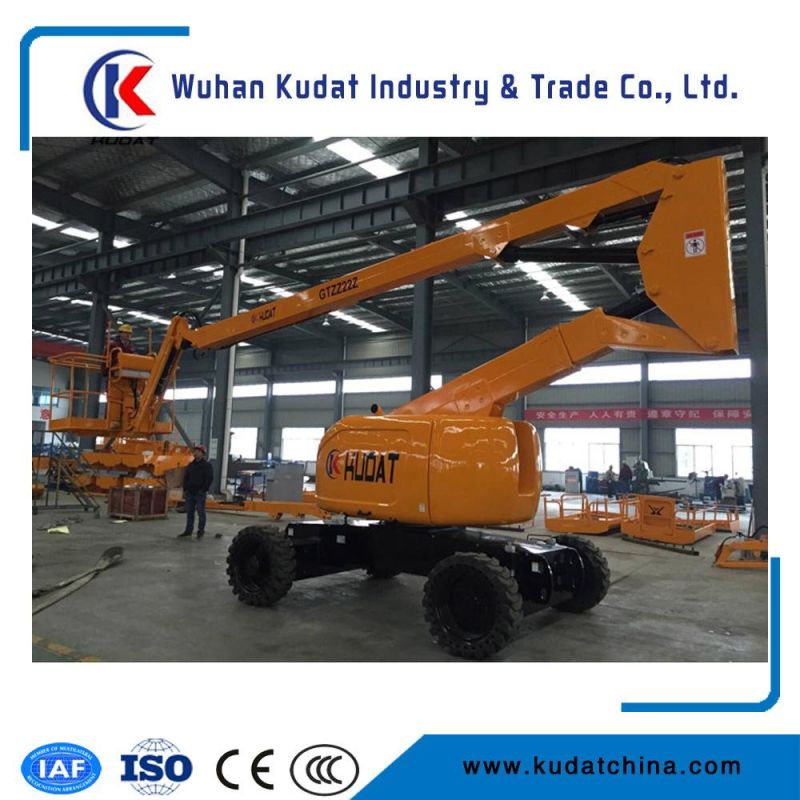

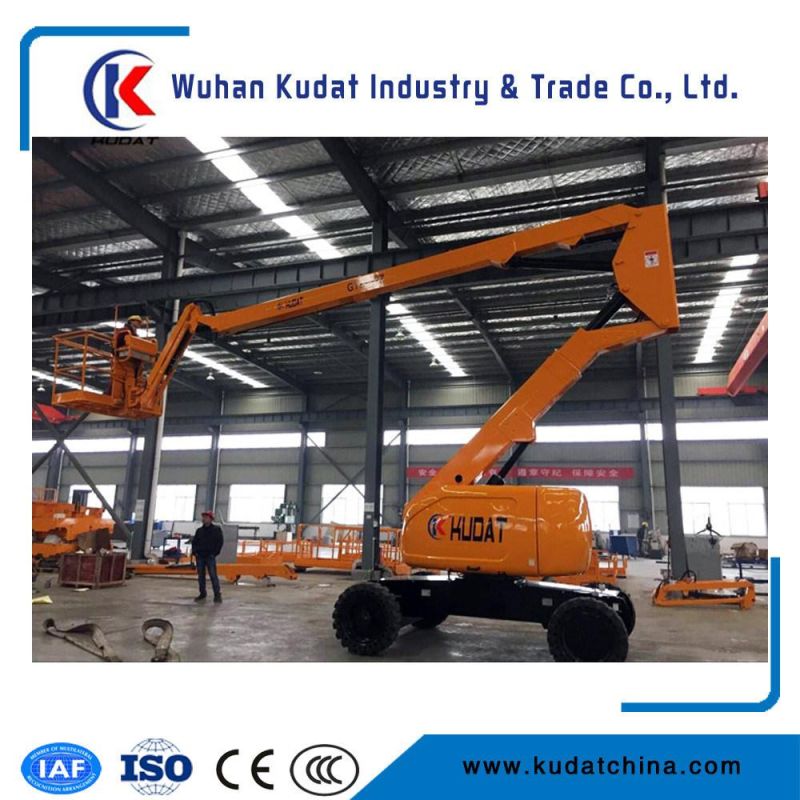

• Model NO.：GTZZ22Z
• Feature：Aerial Work Platform
• Structure：Aerial Work Platform
• Installation：Aerial Work Platform
• Type of Work：Aerial Work Platform
• Drive Speed：6.3km,H
• Power：45kw
• Working Height：24m
• Platform Height：22m
• Lift Capacity：230kgs
• Turntable Swing：360continuous
• Fuel Tank Capacity：100L
• Hydraulic Tank Capacity：250L
• Transport Package：Bulk
• Specification：SGS CE
• Trademark：KUDAT
• Origin：China
• HS Code：8428909090
• Production Capacity：100PCS,Month

M ODEL                                                         GTZZ 22Z               MEASUREMENTS                            Metric                 USWorking height maximum24.1m79ftPlatform height maximum22.4m73ft6inHorizontal reach maximum13.3m43ftAPlatform length0.76m2ft6inBPlatform width1.83m6ftCHeight-stowed2.82m9ft3inDLength-stowed10.1m33ft2inEWidth2.48m8ftFWheelbase2.6m8ft6inGGround clearance-center0.33m1ftPRODUCTIVITY                                   ()Lift capacity (restricted)230kg507lbsPlatform rotation160°Jib rotation135°Turntable Swing360°continuousTurntable tailswing00Drive speed -stowed6.3km/h3.9mphTravel speed -raised or extended1.1km/h0.68mphGradeability -stowed30%
25%Turning radius - inside      3.0m9ft10inTurning radius -outside
Turning radius - axle extendeded      outside5.2m17ftControls12V DC Proportional
12V DC ProportionalSolid tires/Foam filled33×12-20POWER                                                                                                Power sourceCummins B3.3-C60(45kw)
Perkins 400 61hp (45.5kw)Auxiliary power unit12V  DC
12V  DCHydraulic tank capacity250LFuel tank capacity100LWEIGHT ***                                                                                        2 2WD10350kg22817lbsSTANDARDS COMPLIANCE                   EN280JG/T5101Q/ADZV001-2008
