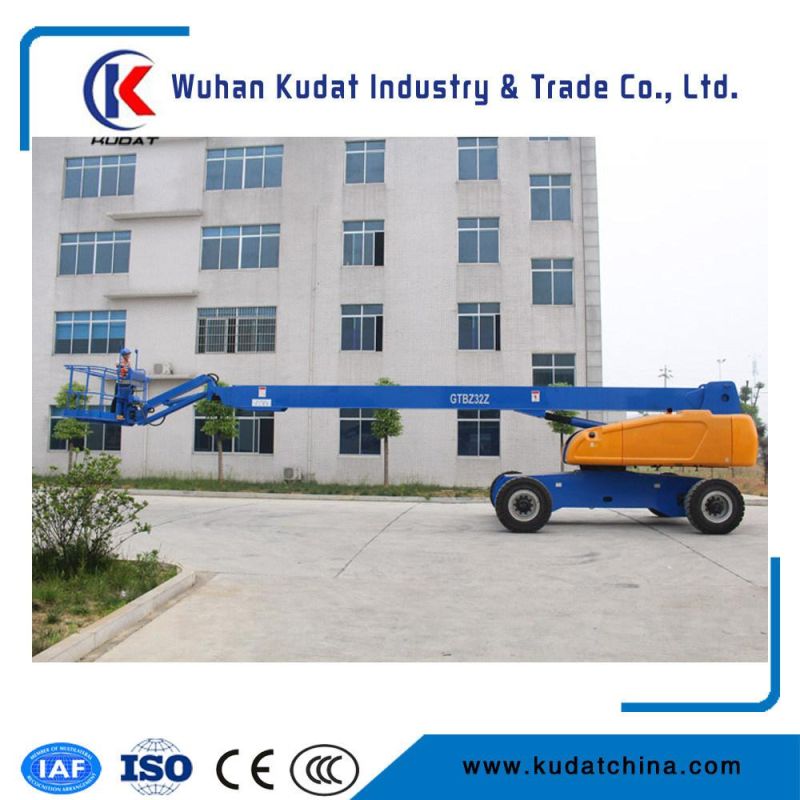

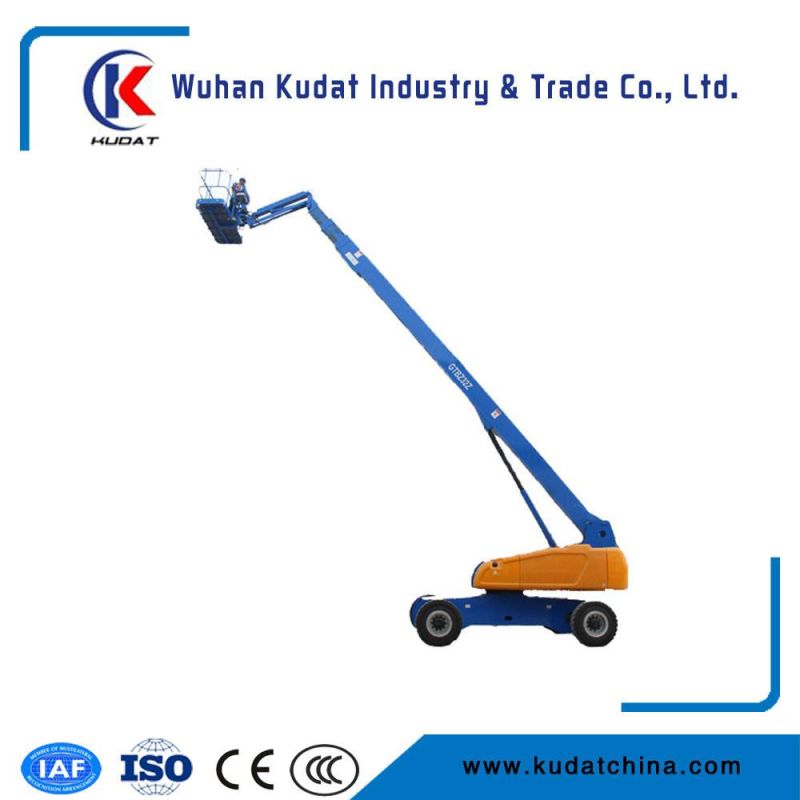

32m Telescopic Boom Self-Propelled Aerial Work Platform
Wuhan Kudat Industry & Trade Co., Ltd.- Lift Mechanism:Telescoping Lift
- Carrying Capacity:Light Level
Base Info
- Model NO.:GTBZ32
- Moves:Self-propelled
- Driven Type:Hydraulic
- Running Mode:Boom Lift
- Feature:Boom Lift
- Certification:CE, ISO 9001
- Structure:Boom Lift
- Installation:Boom Lift
- Type of Work:Boom Lift
- Max Working Height:34m
- Platform Height:32m
- Lift Capacity:480kgs
- Turntable Swing:360
- Travel Speed:4.4km,H
- Controls:24V DC Proportional
- Hydraulic Tank Capacity:265L
- Drive:4WD
- Transport Package:Bulk
- Specification:SGS CE
- Trademark:KUDAT
- Origin:China
- HS Code:8428909090
- Production Capacity:100units,Month
- Package size per unit product:225.00cm * 198.00cm * 135.00cm
- Gross weight per unit product:2000.000kg
Description
MODEL GTBZ32MEASUREMENTS Metric US Working height maximum *33.7m111ftPlatform height maximum32m105ftHorizontal reach maximum **24.4m80ftBelow ground reach4.51m15ftAPlatform length-8ft model0.91m3ftPlatform length-6ft model0.76m2ft6inBPlatform width-8ft model2.44m8ftPlatform width -6ft model1.83m6ftCHeight-stowed3.08m10ftDLength-stowed14.02m46ftEWidth -axle retracted2.49m8ftWidth -axle extended3.35m11ftFWheelbase3.66m12ftGGround clearance-center0.43m1ft5inPRODUCTIVITYLift capacity (restricted)480kg1056lbsLift capacity (non-restricted)340kg748lbsPlatform rotation160°Jib rotation135°Turntable Swing360°continuousTurntable tailswing -axle retracted1.82m6ftTurntable tailswing -axle extended1.38m5ftTravel speed -stowed4.4km/h2.73mphTravel speed -raised or extended1.1km/h0.68mphGradeability -stowed (4WD/2WD)42%/30%Turning radius inside
Turning radius - axle retracted outside4.14m13ft7in6.56m22ftControls24V DC ProportionalSolid tires12.00-20/8.5POWER Power sourceLovol 1004-4 78 hp (58kw)
Perkins 400 76 hp (56kw)
Cummins B3.3 75 HP (56kw)Auxiliary power unit24V DCHydraulic tank capacity265LFuel tank capacity150LWEIGHT *** 2WD18660kg41140lbs4WD18740kg41310lbsSTANDARDS COMPLIANCE EN280,JG/T5101,Q/ADZV001-2008
